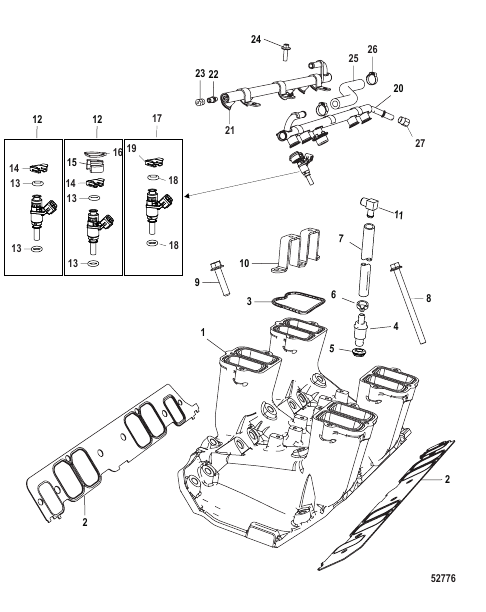

Intake Manifold
Parts (29)
| # | Part Number | Description | Qty | Status |
|---|---|---|---|---|
| 1 | 8M0045256 |
ВПУСКНОЙ КОЛЛЕКТОР Впуск MANIFOLD ASSEMBLY Intake |
1 | |
| 10 | 8M0043145 |
КРОНШТЕЙН Wire Harness BRACKET Wire Harness |
2 | |
| 11 | 687271 |
ФИТИНГ (0.250-18), 90 градусов – латунь FITTING (.250-18) 90 Degree - Brass |
1 | |
| 12 | 8M0082332 |
КОМПЛЕКТ ИНЖЕКТОРА Топливо Design-I or II Use with Design-I Fuel Rail [2A030175] & Below INJECTOR KIT Fuel Design-I or II Use with Design-I Fuel Rail [2A030175] & Below |
8 | superseded |
| 13 | 879150A09 |
КОМПЛЕКТ УПЛОТНЕНИЙ (Contains 4 Upper Seals and 4 Lower) [2A030175] & Below SEAL KIT (Contains 4 Upper Seals and 4 Lower) [2A030175] & Below |
2 | |
| 14 | 8M0045267 |
КОМПЛЕКТ ФИКСАТОРОВ Design-I or II (Set of 4), Use with Design-I Fuel Rail [2A030175] & Below RETAINER KIT Design-I or II (Set of 4), Use with Design-I Fuel Rail [2A030175] & Below |
2 | |
| 15 | 8M0050100 |
ЗАЖИМ Fuel Injector, Secondary, Design-II Use with Design-I Fuel Rail [2A030175] & Below CLIP Fuel Injector, Secondary, Design-II Use with Design-I Fuel Rail [2A030175] & Below |
8 | |
| 16 | 8M0050294 |
КАБЕЛЬНАЯ СТЯЖКА Design-II Use with Design-I Fuel Rail [2A030175] & Below CABLE TIE Design-II Use with Design-I Fuel Rail [2A030175] & Below |
8 | discontinued |
| 17 | 8M0082333 |
КОМПЛЕКТ ИНЖЕКТОРА Топливо Design-III Use with Design-II Fuel Rail [2A030176] & Up INJECTOR KIT Fuel Design-III Use with Design-II Fuel Rail [2A030176] & Up |
8 | superseded |
| 18 | 879150A09 |
КОМПЛЕКТ УПЛОТНЕНИЙ (Contains 8 Seals) [2A030176] & Up SEAL KIT (Contains 8 Seals) [2A030176] & Up |
1 | |
| 19 | 8M2001570 |
ЗАЖИМ Design-III Use with Design-II Fuel Rail [2A030176] & Up CLIP Design-III Use with Design-II Fuel Rail [2A030176] & Up |
8 | |
| 2 | 805403A1 |
КОМПЛЕКТ ПРОКЛАДОК GASKET SET |
1 | |
| 20 | 8M0044743 |
ТОПЛИВНАЯ НАПРАВЛЯЮЩАЯ Port Design-I [2A030175] & Below FUEL RAIL Port Design-I [2A030175] & Below |
1 | superseded |
| 20 | 8M0081453 |
ТОПЛИВНАЯ НАПРАВЛЯЮЩАЯ Port,Includes Injector Clips Design-II [2A030176] & Up FUEL RAIL Port,Includes Injector Clips Design-II [2A030176] & Up |
1 | superseded |
| 21 | 8M0044754 |
ТОПЛИВНАЯ НАПРАВЛЯЮЩАЯ Starboard Design-I [2A030175] & Below FUEL RAIL Starboard Design-I [2A030175] & Below |
1 | superseded |
| 21 | 8M0081452 |
ТОПЛИВНАЯ НАПРАВЛЯЮЩАЯ Starboard,Includes Injector Clips Design-II [2A030176] & Up FUEL RAIL Starboard,Includes Injector Clips Design-II [2A030176] & Up |
1 | superseded |
| 22 | 8M0044726 |
КЛАПАН В СБОРЕ VALVE ASSEMBLY |
1 | |
| 23 | 805515 |
ПРОБКА Вентиль давления топлива – латунь CAP Shrader Valve - Brass |
1 | discontinued |
| 24 | 88552516 |
ВИНТ (M6 x 16 мм), нержавеющая сталь Fuel Rail to Intake Manifold SCREW (M6 x 16 MM) Stainless Steel Fuel Rail to Intake Manifold |
6 | superseded |
| 25 | 8M0044724 |
РУКАВ Balance HOSE Balance |
1 | superseded |
| 26 | 8M0046568 |
ЗАЖИМ (20.5 мм) CLAMP (20.5 mm) |
2 | |
| 27 | 8M0046566 |
ПРОБКА Service Point CAP Valve Service Point |
1 | |
| 3 | 8M0044310 |
УПЛОТНЕНИЕ Intake Manifold SEAL Intake Manifold |
4 | |
| 4 | 848578 |
КЛАПАН В СБОРЕ Сапун картера VALVE ASSEMBLY Crankcase Vent |
1 | superseded |
| 5 | 811553 |
УПЛОТНИТЕЛЬНОЕ КОЛЬЦО GROMMET |
1 | |
| 6 | 848764 |
ЗАЖИМ (21 мм) CLAMP (21 mm) |
1 | |
| 7 | 8M0042521 |
РУКАВ PCV Valve to Plenum HOSE PCV Valve to Plenum |
1 | |
| 8 | 8M2017579 |
ВИНТ (0.375-16 x 5.25) Intake Manifold to Head SCREW (.375-16 x 5.25) Intake Manifold to Head |
4 | |
| 9 | 8M0046395 |
ВИНТ (0.375-16 x 1.75) SCREW (.375-16 x 1.75) |
12 |
