| # | Part Number | Description | Qty | Status |
|---|---|---|---|---|
| - | 8M0220980 |
FILTER Oil (45, 46 & 48IV) FILTER Oil (45, 46 & 48IV) |
1 | |
| 1 | 8M0228656 |

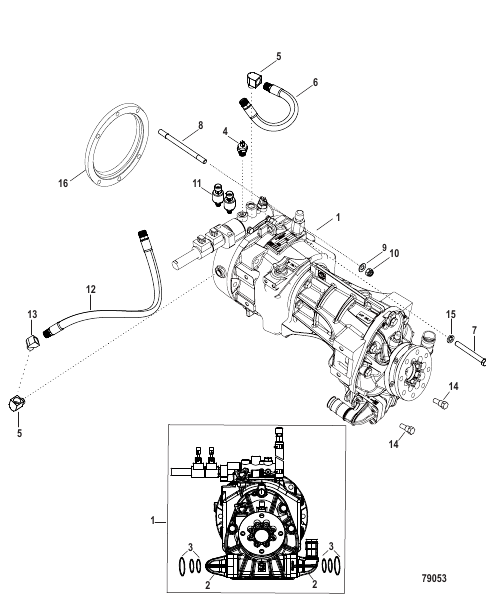

TRANSMISSION 48IV DTS 1.7 TRANSMISSION 48IV DTS 1.7 |
1 | |
| 10 | 82670815 |
ГАЙКА (0.437-20) NUT (.437-20) |
4 | |
| 11 | 865664 |
ДАТЧИК ДАВЛЕНИЯ 500 фунт/кв. дюйм PRESSURE TRANSDUCER 500 PSI |
2 | |
| 12 | 8054781 |
РУКАВ (19.50) HOSE (19.50) |
1 | |
| 13 | 38743 |
КОЛЕНЧАТЫЙ 45 градусов ELBOW 45 Degree |
1 | |
| 14 | 8M6003503 |
АНОД ANODE |
2 | |
| 15 | 32993 |
СТОПОРНАЯ ШАЙБА (0.437) LOCKWASHER (.437) |
2 | |
| 16 | 8M0228657 |
SPACER SPACER |
1 | |
| 2 | 8M0164470 |
ELBOW KIT ELBOW KIT |
1 | |
| 3 | 8M0151120 |
КОМПЛЕКТ УПЛОТНИТЕЛЬНОГО КОЛЬЦА O-RING KIT |
1 | |
| 4 | 88031 |
ПЕРЕКЛЮЧАТЕЛЬ В СБОРЕ Temperature SWITCH ASSEMBLY Temperature |
1 | |
| 5 | 35580 |
ФИТИНГ FITTING |
2 | |
| 6 | 8054782 |
РУКАВ (11.50") Transmission to Cooler HOSE (11.50 Inches) Transmission to Cooler |
1 | |
| 7 | 37268 |
ВИНТ (0.437-14 x 4.250) SCREW (.437-14 x 4.250) |
2 | |
| 8 | 8M0228658 |
STUD .438 X 6.63 STUD .438 X 6.63 |
4 | |
| 9 | 22248 |
ШАЙБА (0.453 x 0.875 x 0.060) WASHER (.453 x .875 x .060) |
4 |
