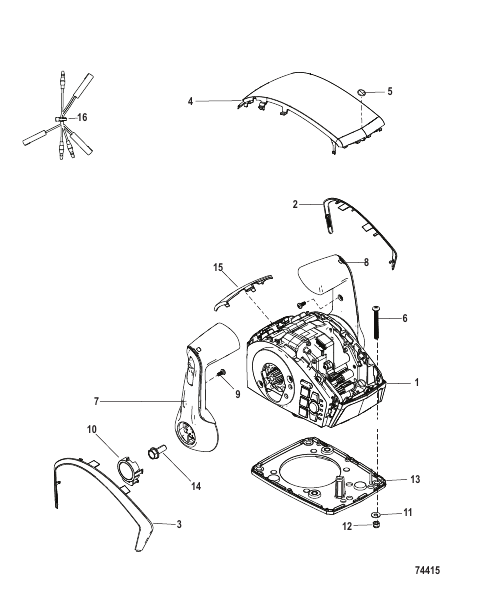

Remote Control-DTS Replicator 5/6, Dual Handle/Console-8M0153980
Parts (16)
| # | Part Number | Description | Qty | Status |
|---|---|---|---|---|
| 1 | 8M0153980 |
REMOTE CONTROL Quad Engine Replicator REMOTE CONTROL Quad Engine Replicator |
1 | |
| 10 | NSS |
НЕ ПРОДАЕТСЯ ОТДЕЛЬНО Button Bezel NOT SOLD SEPARATE Button Bezel |
1 | |
| 11 | 8M0204666 |
WASHER (.203 x .500 x .032) WASHER (.203 x .500 x .032) |
6 | |
| 12 | 401365 |
ГАЙКА (M5), нержавеющая сталь NUT (M5) Stainless Steel |
6 | |
| 13 | 8M0178040 |
BASE PLATE Standard BASE PLATE Standard |
1 | |
| 14 | 8M0214929 |
SCREW (M8 x 20) SCREW (M8 x 20) |
1 | |
| 15 | 8M0178041 |
ACCESS COVER Standard/Premier ACCESS COVER Standard/Premier |
1 | |
| 16 | 8M0164900 |
ПЕРЕХОДНОЙ ЖГУТ Репликатор аварийного отключения HARNESS ADAPTER Replicator E-Stop |
1 | |
| 2 | 8M0178027 |
COVER Chrome Accent, STBD COVER Chrome Accent, STBD |
1 | |
| 3 | 8M0178026 |
COVER Chrome Accent, Port COVER Chrome Accent, Port |
1 | |
| 4 | NSS |
НЕ ПРОДАЕТСЯ ОТДЕЛЬНО Top Cover NOT SOLD SEPARATE Top Cover |
1 | |
| 5 | 8M6001063 |
НАКЛЕЙКА ЗНАЧОК M DECAL M-ICON |
1 | |
| 6 | 8M0178028 |
SCREW M5 x 50 SCREW M5 x 50 |
6 | |
| 7 | 8M0178031 |
HANDLE ASSEMBLY Port, With trim HANDLE ASSEMBLY Port, With trim |
1 | |
| 8 | 8M0178034 |
HANDLE ASSEMBLY STBD HANDLE ASSEMBLY STBD |
1 | |
| 9 | 8M0080328 |
ВИНТ (0.164-18 x 0.375) SCREW (.164-18 x .375) |
2 |
