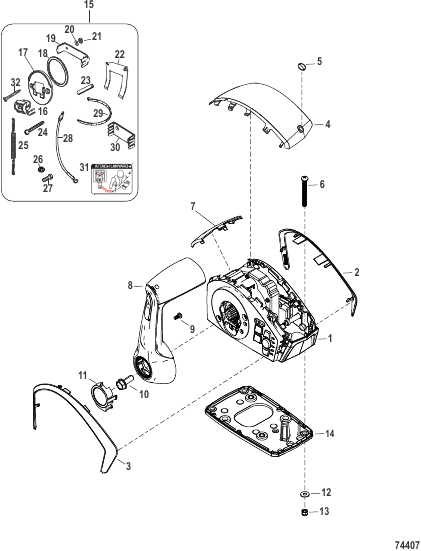

Remote Control-DTS Standard Single, Single Handle/Console-8M0163917, 8M0166584
Parts (33)
| # | Part Number | Description | Qty | Status |
|---|---|---|---|---|
| 1 | 8M0163917 |
REMOTE CONTROL Single Engine Console w/Trim REMOTE CONTROL Single Engine Console w/Trim |
1 | |
| 1 | 8M0166584 |
REMOTE CONTROL Single Engine Console w/Trim, ES REMOTE CONTROL Single Engine Console w/Trim, ES |
1 | |
| 10 | 8M0214929 |
SCREW (M8 x 20) SCREW (M8 x 20) |
1 | |
| 11 | NSS |
НЕ ПРОДАЕТСЯ ОТДЕЛЬНО Button Bezel NOT SOLD SEPARATE Button Bezel |
1 | |
| 12 | 8M0204666 |
WASHER (.203 x .500 x .032) WASHER (.203 x .500 x .032) |
6 | |
| 13 | 401365 |
ГАЙКА (M5), нержавеющая сталь NUT (M5) Stainless Steel |
6 | |
| 14 | 8M0178023 |
BASE PLATE ASSEMBLY Single BASE PLATE ASSEMBLY Single |
1 | |
| 15 | 19674A07 |
КОМПЛЕКТ ВЫКЛЮЧАТЕЛЯ/ТАЛРЕПА SWITCH/LANYARD KIT |
1 | |
| 16 | 18321 |
ЗАЖИМ Крепление CLAMP Mounting |
1 | |
| 17 | 24676 |
ШАЙБА (0.200 x 0.440 x 0.032) WASHER (.200 x .440 x .032) |
2 | |
| 18 | 68219 |
ГАЙКА (№10-32), нержавеющая сталь NUT (#10-32) Stainless Steel |
4 | |
| 19 | 8M0032846 |
ФИКСАТОР Латунь RETAINER Brass |
1 | |
| 2 | 8M0178027 |
COVER Chrome Accent, STBD COVER Chrome Accent, STBD |
1 | |
| 20 | 623594 |
РАЗЪЕДИНИТЕЛЬ (2.00") INSULATOR (2.00 Inch) |
1 | |
| 21 | 32866 |
ВИНТ (№10-32 x 2.00), нержавеющая сталь SCREW (#10-32 x 2.00) Stainless Steel |
2 | |
| 22 | 8M0164891 |
LANYARD CORD ASSEMBLY 54 inch, QS LANYARD CORD ASSEMBLY 54 inch, QS |
1 | |
| 23 | 27164 |
ГАЙКА И СТОПОРНАЯ ШАЙБА (№10-32) NUT AND LOCKWASHER (#10-32) |
1 | |
| 24 | 24231 |
ВИНТ (№10-32 x 0.250) SCREW (#10-32 x .250) |
1 | |
| 25 | 11149A3 |
КАБЕЛЬ В СБОРЕ CABLE ASSEMBLY |
1 | |
| 26 | 816311T |
ЛЕНТОЧНЫЙ ХОМУТ (8.00") TIE STRAP (8.00 Inches) |
7 | |
| 27 | 79146 |
ФИКСАТОР RETAINER |
1 | |
| 28 | 8M0087765 |
НАКЛЕЙКА Тросовый, белый DECAL Lanyard, White |
1 | |
| 29 | 18303 |
ВИНТ (0.190-16 x 1.750), нержавеющая сталь SCREW (.190-16 x 1.750) Stainless Steel |
2 | |
| 3 | 8M0178026 |
COVER Chrome Accent, Port COVER Chrome Accent, Port |
1 | |
| 30 | 133982 |
ПЕРЕКЛЮЧАТЕЛЬ В СБОРЕ Стоп SWITCH ASSEMBLY Stop |
1 | |
| 31 | NSS |
НЕ ПРОДАЕТСЯ ОТДЕЛЬНО NOT SOLD SEPARATE |
1 | |
| 32 | 879925 |
ШАЙБА (52 мм) WASHER (52 mm) |
1 | |
| 4 | 8M0234178 |
TOP COVER STD Single TOP COVER STD Single |
1 | |
| 5 | 8M6001063 |
НАКЛЕЙКА ЗНАЧОК M DECAL M-ICON |
1 | |
| 6 | 8M0178028 |
SCREW M5 x 50 SCREW M5 x 50 |
6 | |
| 7 | 8M0178024 |
ACCESS COVER Single ACCESS COVER Single |
1 | |
| 8 | 8M0178029 |
HANDLE ASSEMBLY w/Trim HANDLE ASSEMBLY w/Trim |
1 | |
| 9 | 8M0080328 |
ВИНТ (0.164-18 x 0.375) SCREW (.164-18 x .375) |
2 |
