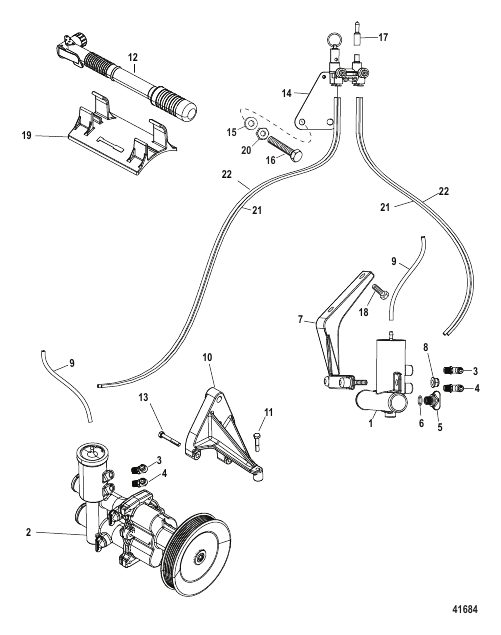

Water Drain System
Parts (22)
| # | Part Number | Description | Qty | Status |
|---|---|---|---|---|
| 1 | 863717A2 |
ПРИВОД В СБОРЕ Water Drain Port ACTUATOR ASSEMBLY Water Drain Port |
1 | |
| 10 | 863859T |
КРОНШТЕЙН BRACKET |
1 | |
| 11 | 4000331 |
ВИНТ (M6 x 30) SCREW (M6 x 30) |
1 | |
| 12 | 863057 |
НАСОС Air PUMP Air |
1 | |
| 13 | 8M2012296 |
ВИНТ (M6 x 40) SCREW (M6 x 40) |
2 | |
| 14 | 862969A2 |
ВПУСКНОЙ КОЛЛЕКТОР Air MANIFOLD ASSEMBLY Air |
1 | |
| 15 | 4002314 |
ШАЙБА WASHER |
2 | |
| 16 | 864887 |
ВИНТ (M5) SCREW M5 5.50 x 14.0 x 1.5 SS |
2 | |
| 17 | 883503 |
ПРОБКА Service Point CAP Service Point |
1 | |
| 18 | 4000374 |
ВИНТ (M10 x 16) SCREW (M10 x 16) |
2 | |
| 19 | 863059 |
КРОНШТЕЙН Air Pump BRACKET Air Pump |
1 | |
| 2 | 8M0139997 |
SEA PUMP ASSEMBLY See "Seawater Pump" for Component Break down SEA PUMP ASSEMBLY See "Seawater Pump" for Component Break down |
1 | |
| 20 | 826292 |
ГАЙКА (M10), с латунным/никелевым покрытием NUT (M10) Brass/Nickel Plated |
2 | |
| 21 | 8M0077561 |
РУКАВ (Общая длина 40.00"), черный Cut Starboard to 25.5 Inch, Port Hose To 23 Inch HOSE (40.00 inch bulk) black Cut Starboard to 25.5 Inch, Port Hose To 23 Inch |
2 | |
| 22 | 8M0062601 |
РУКАВ (Общая длина 40.00"), серый Starboard 40 Inch, Port Hose To 23 Inch HOSE (40.00 inch Bulk) Grey Starboard 40 Inch, Port Hose To 23 Inch |
2 | |
| 3 | 8M0082321 |
ФИТИНГ (90 градусов) FITTING (90 Degree) |
1 | |
| 4 | 8M0082322 |
ФИТИНГ Оранжевый (90 градусов) FITTING Orange (90 Degree) |
1 | |
| 5 | 8M0119211 |
УЗЕЛ ПРОБКИ (0.500-13), синий PLUG ASSEMBLY (.500-13) Blue |
1 | |
| 6 | 26802 |
УПЛОТНИТЕЛЬНОЕ КОЛЬЦО (0.424 x 0.103) O-RING (.424 x .103) |
1 | |
| 7 | 863863T |
КРОНШТЕЙН Actuator Mounting Port BRACKET Actuator Mounting Port |
1 | |
| 8 | 826365 |
ГАЙКА (M8) Nylock NUT (M8) Nylock |
4 | |
| 9 | 8630561 |
РУКАВ (Общая длина 42.00"), черный Air HOSE (42.00 Inches Bulk) Black Air |
2 |
