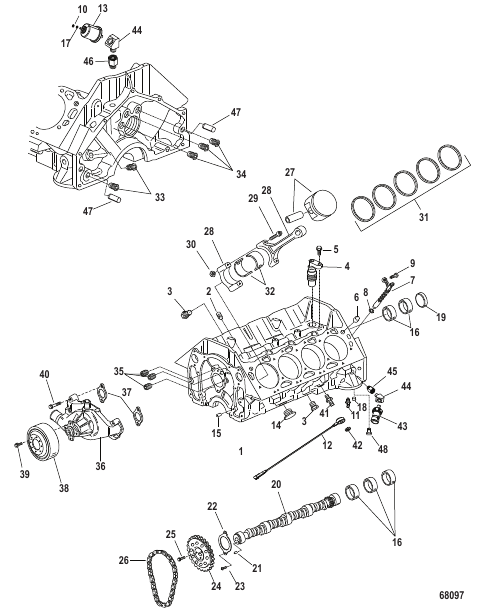

Block Camshaft and Pistons
Parts (58)
| # | Part Number | Description | Qty | Status |
|---|---|---|---|---|
| 1 | NSS |
НЕ ПРОДАЕТСЯ ОТДЕЛЬНО Block, Engine NOT SOLD SEPARATE Block, Engine |
1 | |
| 10 | 68219 |
ГАЙКА (№10-32), нержавеющая сталь NUT (#10-32) Stainless Steel |
1 | |
| 11 | 805563 |
СОЕДИНИТЕЛЬ (NPTF 0.500" к инвертированной свече зажигания 0.500") Oil Hose CONNECTOR (.500 Inch NPTF To .500 Inch Inverted Flare) Oil Hose |
1 | |
| 12 | 8M6003194 |
ДАТЧИК В СБОРЕ Детонационное сгорание SENSOR ASSEMBLY Knock |
2 | |
| 13 | 8M0068784 |
ДАТЧИК ДАВЛЕНИЯ МАСЛА Oil Pressure OIL PRESSURE SENDER Oil Pressure |
1 | |
| 14 | 32561 |
ПРОБКА Труба – головка с внутренним шестигранником (0.250-18) Oil Galley PLUG Pipe - Allen Head (.250-18) Oil Galley |
1 | superseded |
| 14 | 36373 |
ПРОБКА (0.375-18), шестигранник – сталь Pipe, Oil Galley PLUG (.375-18) Hex - Steel Pipe, Oil Galley |
2 | superseded |
| 14 | 48341 |
ПРОБКА (0.125-27 x 0.375) Oil Galley PLUG (.125-27 x .375) Oil Galley |
AR | |
| 14 | 881568 |
ПРОБКА Engine Coolant PLUG Engine Coolant |
1 | |
| 14 | 881569 |
ПРОБКА (0.250-18 x 54) Engine Coolant PLUG (.250-18 x .54) Engine Coolant |
1 | |
| 15 | 843378 |
ШТИФТ Штифт PIN Dowel |
1 | |
| 16 | 85684 |
НАБОР ПОДШИПНИКОВ BEARING SET |
1 | |
| 17 | 26996 |
СТОПОРНАЯ ШАЙБА (№10), нержавеющая сталь LOCKWASHER (#10) Stainless Steel |
1 | |
| 18 | 38407 |
ПРОБКА (0.500-14) Pipe PLUG (.500-14) Pipe |
1 | |
| 19 | 94140 |
КОМПЕНСАЦИОННАЯ ЗАГЛУШКА Camshaft Bearing Hole EXPANSION PLUG Camshaft Bearing Hole |
1 | |
| 2 | 48341 |
ПРОБКА (0.125-27 x 0.375) Oil Galley PLUG (.125-27 x .375) Oil Galley |
3 | |
| 20 | 8M0133005 |
РАСПРЕДЕЛИТЕЛЬНЫЙ ВАЛ 496 H.O. CAMSHAFT 496 H.O. |
1 | |
| 20 | 8M0133004 |
РАСПРЕДЕЛИТЕЛЬНЫЙ ВАЛ 496 CAMSHAFT 496 |
1 | |
| 21 | 843378 |
ШТИФТ Штифт Camshaft Sprocket Location PIN Dowel Camshaft Sprocket Location |
1 | |
| 22 | 845941 |
ФИКСАТОР Camshaft RETAINER Camshaft |
1 | |
| 23 | 881588 |
ВИНТ SCREW |
1 | |
| 24 | 892640001 |
ЗВЕЗДОЧКА Camshaft SPROCKET Camshaft |
1 | |
| 25 | 881570 |
ВИНТ (M8 x 25 мм) SCREW (M8 x 25 MM) |
3 | |
| 26 | 881626 |
ЦЕПЬ Camshaft Timing CHAIN Camshaft Timing |
1 | |
| 27 | 8M0149715 |
ПОРШЕНЬ В СБОРЕ Стандартн. With Wrist Pin PISTON ASSEMBLY Standard With Wrist Pin |
8 | |
| 27 | 8M0149716 |
ПОРШЕНЬ В СБОРЕ 0,040" большой размер With Wrist Pin PISTON ASSEMBLY 0.040" Oversize With Wrist Pin |
8 | |
| 28 | 8M0176278 |
CONNECTING ROD CONNECTING ROD |
8 | |
| 29 | 883917 |
ВИНТ Connecting Rod SCREW Connecting Rod |
16 | |
| 3 | 8M0114498 |
ПРОБКА Coolant Drain PLUG Coolant Drain |
1 | |
| 30 | 883918 |
ГАЙКА Connecting Rod NUT Connecting Rod |
16 | superseded |
| 31 | 8M0149717 |
НАБОР КОЛЕЦ Поршень, стандартный RING SET Piston Standard |
8 | |
| 31 | 8M0149719 |
НАБОР КОЛЕЦ Поршень 0,040 большой размер RING SET Piston 0.040 Oversize |
8 | |
| 32 | 8832391 |
ПОДШИПНИК Connecting Rod BEARING Connecting Rod |
8 | discontinued |
| 33 | 881567001 |
ПРОБКА Oil Galley PLUG Oil Galley |
4 | |
| 34 | 48341 |
ПРОБКА (0.125-27 x 0.375) Oil Galley PLUG (.125-27 x .375) Oil Galley |
3 | |
| 35 | 48341 |
ПРОБКА (0.125-27 x 0.375) Oil Galley PLUG (.125-27 x .375) Oil Galley |
AR | |
| 35 | 36373 |
ПРОБКА (0.375-18), шестигранник – сталь Pipe, Oil Galley PLUG (.375-18) Hex - Steel Pipe, Oil Galley |
2 | superseded |
| 35 | 32561 |
ПРОБКА Труба – головка с внутренним шестигранником (0.250-18) Oil Galley PLUG Pipe - Allen Head (.250-18) Oil Galley |
1 | superseded |
| 36 | 8M0113736 |
НАСОС Circulating PUMP Circulating |
1 | |
| 37 | 881603001 |
ПРОКЛАДКА Circulating Pump GASKET Circulating Pump |
2 | |
| 38 | 862583 |
ШКИВ Circulating Pump PULLEY Circulating Pump |
1 | discontinued |
| 39 | 4010716 |
ВИНТ (M8 x 16) SCREW (M8 x 16) |
4 | |
| 4 | 8M0114791 |
ПРИВОД Масляный насос DRIVER Oil Pump |
1 | |
| 40 | 881576 |
ВИНТ (M10 x 65) SCREW (M10 x 65) |
3 | |
| 40 | 884036 |
ВИНТ (M10 x 95) SCREW (M10 x 95) |
1 | discontinued |
| 41 | 862915 |
ШПИЛЬКА (0.250-18/M10, специальный) Knock Sensor STUD (.250-18/M10 Special) Knock Sensor |
2 | |
| 42 | 826292 |
ГАЙКА (M10), с латунным/никелевым покрытием Knock Sensor NUT (M10) Brass/Nickel Plated Knock Sensor |
2 | |
| 43 | 881879T11 |
ДАТЧИК Давление (0-100 фунт./кв. дюйм) Oil Pressure SENSOR Pressure (0 - 100 PSI) Oil Pressure |
1 | |
| 44 | 8M0123050 |
ФИТИНГ Колено (45 градусов) FITTING Elbow (45 Degree) |
2 | |
| 45 | 64013 |
ФИТИНГ (Вилка 0.375 к гнезду 0.125) Reducer FITTING (.375 Male To .125 Female) Reducer |
1 | |
| 46 | 805059 |
ФИТИНГ Reducer Bushing FITTING Reducer Bushing |
1 | |
| 47 | 8M0092110 |
ШТИФТ Штифт PIN Dowel |
2 | |
| 48 | 883920 |
КЛАПАН В СБОРЕ Фильтр VALVE ASSEMBLY Filter |
1 | |
| 5 | 881590 |
ВИНТ (M8 x 20) Oil Pump SCREW (M8 x 20) Oil Pump |
1 | |
| 6 | 52190 |
ШТИФТ Cylinder Head Locating PIN Cylinder Head Locating |
4 | |
| 7 | 892617 |
ДАТЧИК Crankshaft Position SENSOR Crankshaft Position |
1 | |
| 8 | NSS |
НЕ ПРОДАЕТСЯ ОТДЕЛЬНО Seal, Crankshaft Position Sensor NOT SOLD SEPARATE Seal, Crankshaft Position Sensor |
1 | |
| 9 | 881595 |
ВИНТ (M6 x 21) Crankshaft Position Sensor SCREW (M6 x 21) Crankshaft Position Sensor |
1 |
