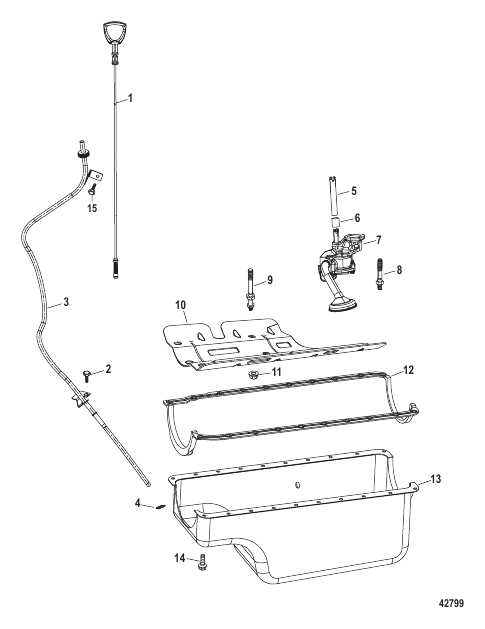

| # | Part Number | Description | Qty | Status |
|---|
| 1 |
8M0070212 |
DIPSTICK Oil level
|
1 |
|
| 10 |
843945T |
WINDAGE TRAY Oil Deflector
|
1 |
|
| 11 |
845602 |
NUT (.375-16)
|
5 |
|
| 12 |
845628 |
GASKET Oil Pan
|
1 |
|
| 13 |
845668T |
PAN ASSEMBLY Oil
|
1 |
superseded
|
| 14 |
841389 |
SCREW (.312-18 x .620)
|
20 |
|
| 15 |
8M0103804 |
SCREW (M6 x 12 MM) Stainless Steel
|
1 |
|
| 2 |
98257 |
SCREW (.312-18 x .500) Dipstick Tube to Block, Bottom
|
1 |
|
| 3 |
8M2021697 |
TUBE ASSEMBLY Dipstick
|
1 |
|
| 4 |
62704 |
O-RING (.362 x .103)
|
1 |
|
| 5 |
8M0046892 |
SHAFT AND RETAINER
|
1 |
|
| 6 |
36183 |
RETAINER
|
1 |
|
| 7 |
827589T1 |
PUMP ASSEMBLY
|
1 |
|
| 8 |
845599 |
STUD (.375-16/.438-14 x 3.00)
|
1 |
|
| 9 |
843375 |
STUD (.375-16/.500-12 x 5.500)
|
5 |
|
