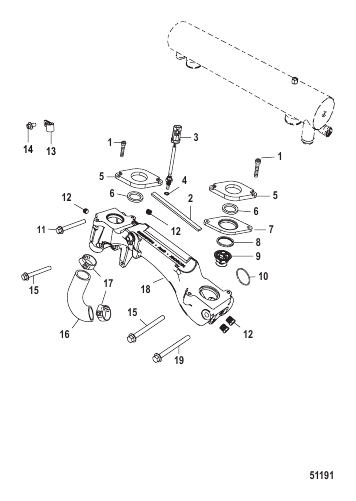

Cooling System Crossover
Parts (19)
| # | Part Number | Description | Qty | Status |
|---|---|---|---|---|
| 1 | 4010730 |
ВИНТ (M8 x 30) SCREW (M8 x 30) |
2 | superseded |
| 10 | 30529 |
УПЛОТНИТЕЛЬНОЕ КОЛЬЦО (1.925 x 0.103) O-RING (1.925 x .103) |
2 | |
| 11 | 8M2017380 |
ВИНТ (0.4375-14 x 5.5) SCREW (.4375-14 x 5.5) |
1 | superseded |
| 12 | 32803 |
ПРОБКА Труба (0.375-18), латунь PLUG Pipe (.375-18) Brass |
4 | superseded |
| 13 | 65653 |
ЗАЖИМ CLIP |
1 | |
| 14 | 4010612 |
ВИНТ (M6 x 12), нержавеющая сталь SCREW (M6 x 12) Stainless Steel |
1 | |
| 15 | 8M0043101 |
ВИНТ (7/16-14 x 3.5) Lower Crossover SCREW (7/16-14 X 3.5) Lower Crossover |
2 | |
| 16 | 8M2019704 |
РУКАВ Crossover to Circluating Pump HOSE Crossover to Circluating Pump |
1 | |
| 17 | 815504232 |
ЗАЖИМ Червячная передача (диаметр 2.50) CLAMP Worm Gear (2.50 Diameter) |
2 | |
| 18 | 8M0045236 |
ПЕРЕПУСКНАЯ ТРУБА CROSSOVER |
1 | |
| 19 | 8M0043100 |
ВИНТ (7/16-14 x 5.0) Crossover Port SCREW (7/16-14 x 5.0) Crossover Port |
1 | superseded |
| 2 | 843155001 |
НАКЛАДКА ПЕНОПЛАСТА (6.500 inches) FOAM STRIP (6.500 inches) |
2 | superseded |
| 3 | 8M0148668 |
SENSOR ASSEMBLY Water Temperature SENSOR ASSEMBLY Water Temperature |
1 | |
| 4 | 896699 |
УПЛОТНИТЕЛЬНОЕ КОЛЬЦО (1.78 мм x 0.08 мм) O-RING (1.78 mm x .08 mm) |
1 | |
| 5 | 8M0075813 |
ПЛАСТИНА Heat Exchanger PLATE Heat Exchanger |
2 | |
| 6 | 20295 |
СЧЕТВЕРЕННОЕ КОЛЬЦО 1.725 x 0.210 QUAD RING 1.725 x .210 |
2 | |
| 7 | 8M0081454 |
КОМПЛЕКТ ПЛАСТИН Heat Exchanger PLATE KIT Heat Exchanger |
1 | |
| 8 | 8071341 |
УПЛОТНЕНИЕ Thermostat SEAL Thermostat Thermostat |
1 | |
| 9 | 8M0045990 |
ТЕРМОСТАТ THERMOSTAT |
1 |
