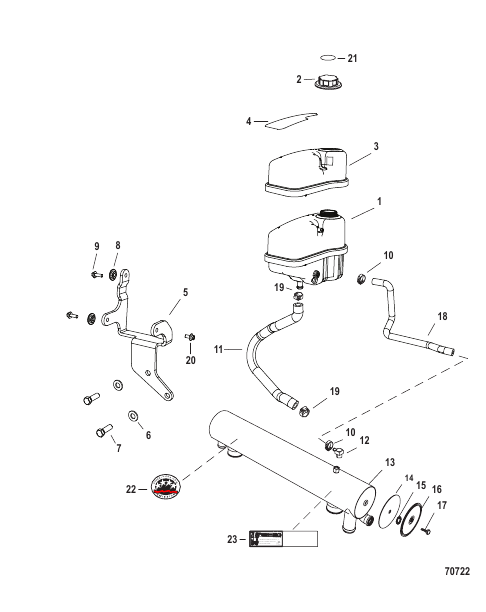

| # | Part Number | Description | Qty | Status |
|---|
| 1 |
8M0070210 |
RESERVIOR Coolant
|
1 |
|
| 10 |
815504212 |
CLAMP Worm Gear
|
2 |
|
| 11 |
8M2017665 |
HOSE Reservoir to Circulating Pump
|
1 |
|
| 12 |
629101 |
FITTING Elbow - 90 Degree (.125-27)
|
1 |
|
| 13 |
8M0095815 |
HEAT EXCHANGER
|
1 |
|
| 14 |
891716 |
GASKET
|
1 |
|
| 15 |
8M0039163 |
O-RING (3/8 x 1/8)
|
1 |
|
| 16 |
891717 |
COVER
|
1 |
|
| 17 |
98261 |
SCREW (.375-16 x .750)
|
1 |
|
| 18 |
8M2021340 |
HOSE Coolant Bleed
|
1 |
|
| 19 |
815504206 |
CLAMP Worm Gear
|
2 |
|
| 2 |
862863 |
CAP Coolant Reservoir
|
1 |
|
| 20 |
4010612 |
SCREW (M6 x 12) Stainless Steel
|
1 |
|
| 21 |
8M2017891 |
DECAL Engine Coolant
|
1 |
|
| 22 |
8M0042965 |
DECAL Carb 4-Star
|
1 |
|
| 23 |
8M0071123 |
DECAL Water drain and emission
|
1 |
|
| 3 |
8M0070890 |
COVER Coolant Reservoir
|
1 |
|
| 4 |
8M0029391 |
DECAL Base
|
1 |
|
| 4 |
8M0034676 |
DECAL High Output
|
1 |
|
| 5 |
8M0070211 |
BRACKET Reservoir
|
1 |
|
| 6 |
27025 |
WASHER
|
2 |
|
| 7 |
47462 |
SCREW (.437-14 x 1.250)
|
2 |
|
| 8 |
8M2022695 |
SPACER
|
2 |
|
| 9 |
4010620 |
SCREW (M6 x 20) Stainless Steel
|
2 |
|
