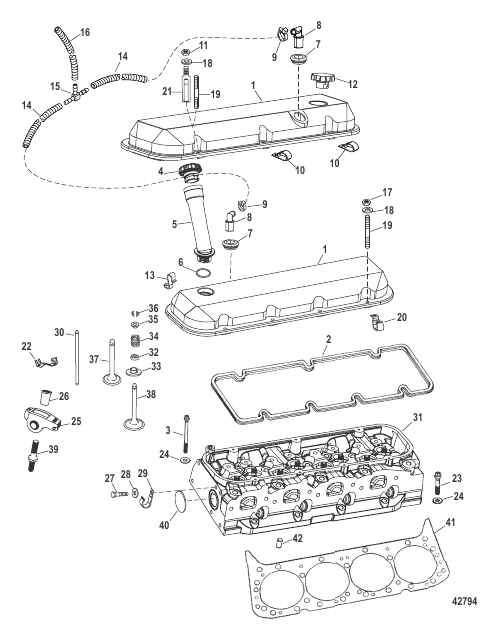

| # | Part Number | Description | Qty | Status |
|---|
| 1 |
8M0045254 |
COVER ASSEMBLY Rocker
|
2 |
|
| 10 |
858951 |
J CLIP
|
2 |
|
| 11 |
826709109 |
NUT (.250-28) Stainless Steel
|
1 |
|
| 12 |
845753T1 |
CAP Oil Fill
|
2 |
|
| 13 |
42553 |
J CLIP
|
1 |
|
| 14 |
8M0086022 |
HOSE Cut 2 Pieces - 8.5 Inches
|
AR |
|
| 15 |
849999 |
FITTING Tee
|
1 |
|
| 16 |
8M0086022 |
HOSE Cut As Required
|
AR |
|
| 17 |
8267089 |
NUT (.250-28)
|
14 |
|
| 18 |
846673 |
WASHER (.265 x .500 x .060) Stainless Steel
|
14 |
|
| 19 |
56766 |
STUD (.250-20/.250-28 x 1.380)
|
14 |
|
| 2 |
8M0092920 |
GASKET Valve Cover
|
2 |
|
| 20 |
642351 |
J CLIP
|
1 |
superseded
|
| 21 |
8M2018644 |
STUD Special Reservoir Bracket to Valve Cover Stud
|
1 |
|
| 22 |
840942 |
GUIDE Pushrod
|
8 |
|
| 23 |
8M0000463 |
SCREW (.438-14 x 2.060) Black Oxide
|
8 |
|
| 24 |
841990 |
WASHER Special - Black
|
32 |
|
| 25 |
8M0099002 |
ROCKER ARM ASSEMBLY
|
16 |
|
| 26 |
8M0043537 |
NUT Rocker
|
16 |
|
| 27 |
99204 |
SCREW (.437-14 x 1.00) Stainless Steel
|
1 |
|
| 28 |
45176 |
WASHER (.453 x .812 x .105) Stainless Steel
|
1 |
|
| 29 |
843142 |
J CLIP
|
1 |
disc.
|
| 3 |
8M0000467 |
SCREW (.438-14 x 5.060) Black Oxide
|
10 |
|
| 3 |
8M0000482 |
SCREW (.438-14 x 4.060) Black Oxide
|
14 |
|
| 30 |
848262 |
PUSH ROD (7.550) Intake
|
8 |
|
| 30 |
848264 |
PUSH ROD (8.550) Exhaust
|
8 |
|
| 31 |
8M0046344 |
CYLINDER HEAD ASSEMBLY
|
2 |
|
| 32 |
842755 |
SEAL Valve Intake And Exhaust
|
16 |
|
| 33 |
840678 |
SEAT Spring
|
16 |
|
| 34 |
8M0042978 |
SPRING Valve
|
8 |
|
| 35 |
8M0043175 |
RETAINER Valve Spring
|
8 |
|
| 36 |
8M0042576 |
KEY Valve Stem
|
32 |
|
| 37 |
8M0046324 |
VALVE Intake
|
8 |
|
| 38 |
8M0046325 |
VALVE Exhaust
|
8 |
|
| 39 |
95820 |
STUD Rocker Arm Valve Intake
|
8 |
|
| 39 |
843129 |
STUD Rocker Arm Valve Exhaust
|
8 |
|
| 4 |
8M0065093 |
CAP Oil Fill
|
1 |
|
| 40 |
47463 |
EXPANSION PLUG
|
2 |
|
| 41 |
811546A04 |
GASKET KIT Cylinder Head Standard Pistons
|
2 |
|
| 41 |
8M0099001 |
GASKET Cylinder Head .030 and .060 Oversize Pistons
|
2 |
|
| 42 |
843931 |
PIN Dowel Cylinder Head Gasket Locator Not Included in 8M0099001
|
4 |
|
| 5 |
8M0045749 |
TUBE Oil FIll
|
1 |
|
| 6 |
8M0044601 |
O-RING
|
1 |
|
| 7 |
811553 |
GROMMET
|
2 |
|
| 8 |
97850T |
ELBOW 90 Degree Breather
|
2 |
|
| 9 |
816311T |
TIE STRAP (8.00 Inches)
|
2 |
|
