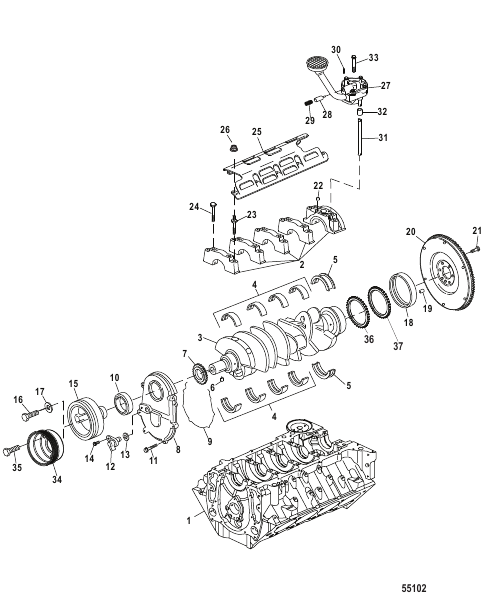

Block Crankshaft, Oil Pump and Front Cover
Parts (40)
| # | Part Number | Description | Qty | Status |
|---|---|---|---|---|
| 1 | NSS |
НЕ ПРОДАЕТСЯ ОТДЕЛЬНО Block, Engine Order Longblock Assembly NOT SOLD SEPARATE Block, Engine Order Longblock Assembly |
1 | |
| 10 | 881613001 |
УПЛОТНЕНИЕ Front Crankshaft SEAL Front Crankshaft |
1 | |
| 11 | 8M0069806 |
ВИНТ (M6 x 30) SCREW (M6 x 30) |
6 | |
| 12 | 892615002 |
ДАТЧИК Camshaft Position SENSOR Camshaft Position |
1 | |
| 13 | NSS |
НЕ ПРОДАЕТСЯ ОТДЕЛЬНО Seal, Camshaft Position Sensor NOT SOLD SEPARATE Seal, Camshaft Position Sensor |
1 | |
| 14 | 883923 |
ВИНТ (M6 x 20) SCREW (M6 x 20) |
1 | |
| 15 | 891769 |
БАЛАНСИР Crankshaft BALANCER Crankshaft |
1 | discontinued |
| 16 | 881587 |
ВИНТ (M16 x 1.5) SCREW (M16 x 1.5) |
1 | |
| 17 | 881614 |
ШАЙБА WASHER |
1 | |
| 18 | 881608001 |
УПЛОТНЕНИЕ Rear Crankshaft SEAL Rear Crankshaft |
1 | |
| 19 | 881609 |
ШТИФТ Flywheel Locating PIN Flywheel Locating |
2 | discontinued |
| 2 | NSS |
НЕ ПРОДАЕТСЯ ОТДЕЛЬНО Cap, Crankshaft Bearing NOT SOLD SEPARATE Cap, Crankshaft Bearing |
5 | |
| 20 | 8M0083318 |
МАХОВИК Base and High Output FLYWHEEL Base and High Output |
1 | |
| 21 | 881578 |
БОЛТ BOLT |
6 | |
| 22 | 843378 |
ШТИФТ Штифт Oil Pump Locating PIN Dowel Oil Pump Locating |
1 | |
| 23 | 8M0090762 |
ШПИЛЬКА Колпачок подшипника коленчатого вала STUD Crankshaft Bearing Cap |
5 | |
| 24 | 8M0090761 |
ВИНТ Crankshaft Bearing Cap SCREW Crankshaft Bearing Cap |
15 | |
| 25 | 843945T |
ОТТЕКАТЕЛЬ МАСЛА Маслоотражатель WINDAGE TRAY Oil Deflector |
1 | |
| 26 | 845602 |
ГАЙКА (.375-16) Flanged NUT (.375-16) Flanged |
5 | |
| 27 | 8M0069808 |
НАСОС – МАСЛО PUMP-OIL |
1 | |
| 28 | 881611 |
ШТИФТ Oil Pump PIN Oil Pump |
1 | |
| 29 | 881610 |
ПРУЖИНА Oil Pump SPRING Oil Pump |
1 | |
| 3 | 8M0087364 |
КОЛЕНЧАТЫЙ ВАЛ CRANKSHAFT |
1 | |
| 30 | NLA |
Не поставляется Pressure Relief Valve ORD 8M0069808 No Longer Available Pressure Relief Valve ORD 8M0069808 |
1 | |
| 31 | 8M0046892 |
ВАЛ И ФИКСАТОР Oil Pump Drive SHAFT AND RETAINER Oil Pump Drive |
1 | |
| 32 | 36183 |
ФИКСАТОР Oil Pump Drive RETAINER Oil Pump Drive |
1 | |
| 33 | 881585 |
ВИНТ (M10 x 60) SCREW (M10 x 60) |
1 | |
| 34 | 862349 |
ШКИВ Crankshaft PULLEY Crankshaft |
1 | discontinued |
| 35 | 4009025 |
ВИНТ (M10 x 25), нержавеющая сталь SCREW (M10 x 25) Stainless Steel |
3 | |
| 36 | 8M0161871 |
РУЛЕВОЕ КОЛЕСО РЕДУКТОРА ВПЕРЕД RELUCTOR WHEEL FWD |
1 | |
| 37 | 8M0161870 |
РУЛЕВОЕ КОЛЕСО РЕДУКТОРА НАЗАД (КОРМА) RELUCTOR WHEEL AFT |
1 | |
| 4 | 884702 |
КОМПЛЕКТ ПОДШИПНИКОВ BEARING KIT |
4 | |
| 5 | 881607001 |
КОМПЛЕКТ ПОДШИПНИКОВ Crankshaft Main Thrust BEARING KIT Crankshaft Main Thrust |
1 | discontinued |
| 6 | 881605 |
ШТИФТ Balancer Locating PIN Balancer Locating |
1 | |
| 7 | 881655 |
ЗВЕЗДОЧКА Crankshaft SPROCKET Crankshaft |
1 | |
| 8 | 892616001 |
КРЫШКА Front COVER Front |
1 | discontinued |
| 9 | 881604 |
ПРОКЛАДКА Front Cover GASKET Front Cover |
1 | |
| NS | 8M0137122 |
ЛОНГ-БЛОК В СБОРЕ LONG BLOCK ASSEMBLY |
1 | superseded |
| NS | 8M0089761 |
РУЛЕВОЕ КОЛЕСО РЕДУКТОРА Forward RELUCTOR WHEEL Forward |
1 | superseded |
| NS | 8M0089762 |
РУЛЕВОЕ КОЛЕСО РЕДУКТОРА Aft RELUCTOR WHEEL Aft |
1 | superseded |
