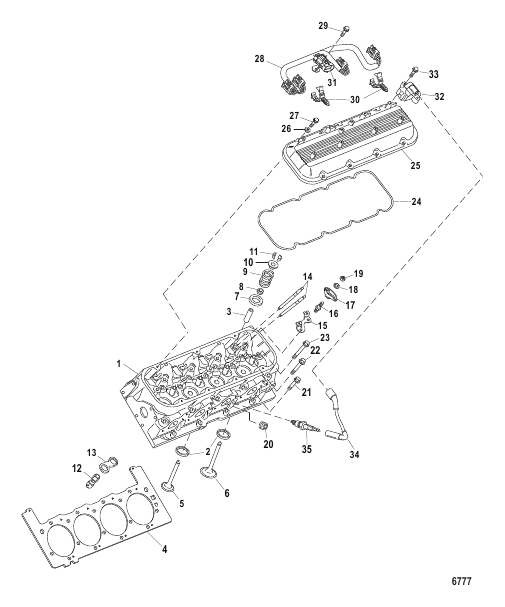

Cylinder Head
Parts (44)
| # | Part Number | Description | Qty | Status |
|---|---|---|---|---|
| - | 881642A01 |
КОМПЛЕКТ БОЛТОВ BOLT KIT |
2 | discontinued |
| 1 | 8M0090760 |
ГОЛОВКА ЦИЛИНДРА В СБОРЕ Starboard CYLINDER HEAD ASSEMBLY Starboard |
1 | superseded |
| 1 | 8M0091709 |
ГОЛОВКА ЦИЛИНДРА В СБОРЕ Port CYLINDER HEAD ASSEMBLY Port |
1 | superseded |
| 10 | 850464 |
ПРОБКА Valve Spring CAP Valve Spring |
8 | |
| 11 | 54530 |
КЛЮЧ Valve Stem KEY Valve Stem |
32 | |
| 12 | 850467 |
СЪЕМНИК Valve LIFTER Valve |
16 | |
| 13 | 845754 |
НАПРАВЛЯЮЩАЯ Valve Lifter GUIDE Valve Lifter |
8 | |
| 14 | 881682T |
ШТОК ТОЛКАТЕЛЯ Intake PUSH ROD Intake |
8 | |
| 14 | 881683 |
ШТОК ТОЛКАТЕЛЯ Exhaust PUSH ROD Exhaust |
8 | |
| 15 | 881686 |
НАПРАВЛЯЮЩАЯ Rocker Arm GUIDE Rocker Arm |
8 | |
| 16 | 881635 |
ШПИЛЬКА STUD |
16 | |
| 17 | 881687T |
ARM ARM |
16 | |
| 18 | 58041 |
ШАРИК BALL |
16 | |
| 19 | 801883 |
ГАЙКА NUT |
12 | |
| 2 | NSS |
НЕ ПРОДАЕТСЯ ОТДЕЛЬНО Seat NOT SOLD SEPARATE Seat |
AR | |
| 20 | 75983 |
ПРОБКА PLUG |
2 | |
| 21 | NSS |
НЕ ПРОДАЕТСЯ ОТДЕЛЬНО SCREW, (M10 x 52) NOT SOLD SEPARATE SCREW, (M10 x 52) |
8 | |
| 22 | NSS |
НЕ ПРОДАЕТСЯ ОТДЕЛЬНО SCREW, (M10 x 86) NOT SOLD SEPARATE SCREW, (M10 x 86) |
4 | |
| 23 | NSS |
НЕ ПРОДАЕТСЯ ОТДЕЛЬНО SCREW, (M10 x 103) NOT SOLD SEPARATE SCREW, (M10 x 103) |
24 | |
| 24 | 881622 |
ПРОКЛАДКА Cylinder Head Cover GASKET Cylinder Head Cover |
2 | |
| 25 | 891870 |
КРЫШКА Cylinder Head COVER Cylinder Head |
2 | |
| 26 | 881621 |
ПРОКЛАДКА GASKET |
14 | |
| 27 | 881623 |
ВИНТ (M6 x 1) SCREW (M6 x 1) |
14 | |
| 28 | 8M0143829 |
ЖГУТ ПРОВОДОВ В СБОРЕ Ignition Coil Wiring HARNESS ASSEMBLY Ignition Coil Wiring |
1 | |
| 29 | 881648 |
БОЛТ (M6 x 13) BOLT (M6 x 13) |
4 | superseded |
| 3 | NSS |
НЕ ПРОДАЕТСЯ ОТДЕЛЬНО Guide, Valve NOT SOLD SEPARATE Guide, Valve |
AR | |
| 30 | 8M0069809 |
ЗАЖИМ Жгут электропроводки CLIP Wiring Harness |
2 | |
| 31 | NSS |
НЕ ПРОДАЕТСЯ ОТДЕЛЬНО Connector Must Order 8M0143829 NOT SOLD SEPARATE Connector Must Order 8M0143829 |
1 | |
| 32 | 889925 |
КАТУШКА Ignition COIL Ignition |
8 | superseded |
| 33 | 881647 |
ВИНТ SCREW |
16 | |
| 34 | 8M0117678 |
КОМПЛЕКТ ПРОВОДОВ (8 жил) Spark Plug WIRE KIT (8 Leads) Spark Plug |
1 | superseded |
| 34 | 888740 |
ПРОВОД Отдельный Spark Plug Use with Cylinders 1, 2, 7 and 8 WIRE Individual Spark Plug Use with Cylinders 1, 2, 7 and 8 |
4 | discontinued |
| 34 | 8M0119695 |
ПРОВОД Свеча зажигания Use with Cylinders 3, 4, 5 and 6 WIRE Spark Plug Use with Cylinders 3, 4, 5 and 6 |
4 | |
| 35 | 8M0129146 |
СВЕЧА ЗАЖИГАНИЯ SPARK PLUG |
8 | |
| 4 | 881631 |
ПРОКЛАДКА Cylinder Head (Port) GASKET Cylinder Head (Port) |
1 | |
| 4 | 879150064 |
ПРОКЛАДКА Cylinder Head (Starboard) GASKET Cylinder Head (Starboard) |
1 | discontinued |
| 5 | 8M0146080 |
ВПУСКНОЙ КЛАПАН Standard (Black-X Composite) VALVE Intake Standard (Black-X Composite) |
8 | |
| 6 | 8M0146108 |
ВЫПУСКНОЙ КЛАПАН Standard (Black-X Composite) VALVE Exhaust Standard (Black-X Composite) |
8 | |
| 7 | 850463 |
РОТАТОР Valve ROTATOR Valve |
8 | |
| 8 | 881637T |
УПЛОТНЕНИЕ Valve Stem Oil SEAL Valve Stem Oil |
16 | |
| 9 | 881672001 |
ПРУЖИНА Valve SPRING Valve |
16 | |
| NS | 881720 |
ФИКСАТОР 2 Spark Plug Wire RETAINER 2 Spark Plug Wire |
AR | discontinued |
| NS | 883924 |
ФИКСАТОР Conduit RETAINER Conduit |
AR | |
| NS | 47463 |
КОМПЕНСАЦИОННАЯ ЗАГЛУШКА Cylinder Head EXPANSION PLUG Cylinder Head |
2 |
