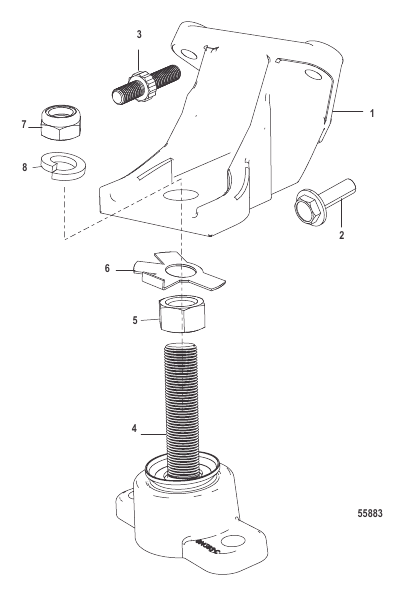

Engine Mounts
Parts (9)
| # | Part Number | Description | Qty | Status |
|---|---|---|---|---|
| 1 | 79550A1 |
КРОНШТЕЙН Engine Mounting BRACKET Engine Mounting |
2 | |
| 2 | 40001197 |
ВИНТ (M10 x 35) SCREW (M10 x 35) |
2 | |
| 3 | 861580 |
ШПИЛЬКА Double Ended Metric Port STUD Double Ended Metric Port |
2 | |
| 3 | 40001195 |
ВИНТ (M10 x 30) Starboard SCREW (M10 x 30) Starboard |
2 | |
| 4 | 814263A1 |
БАЗА В СБОРЕ BASE ASSEMBLY |
2 | |
| 5 | 816331 |
ГАЙКА (.750-16) Jam NUT (.750-16) Jam |
2 | |
| 6 | 12657 |
ЛЕПЕСТКОВАЯ ШАЙБА TAB WASHER |
2 | |
| 7 | 859126 |
ГАЙКА (.750-16) Jam NUT (.750-16) Jam |
2 | |
| 8 | 68102 |
СТОПОРНАЯ ШАЙБА (0.750) LOCKWASHER (.750) |
2 |
