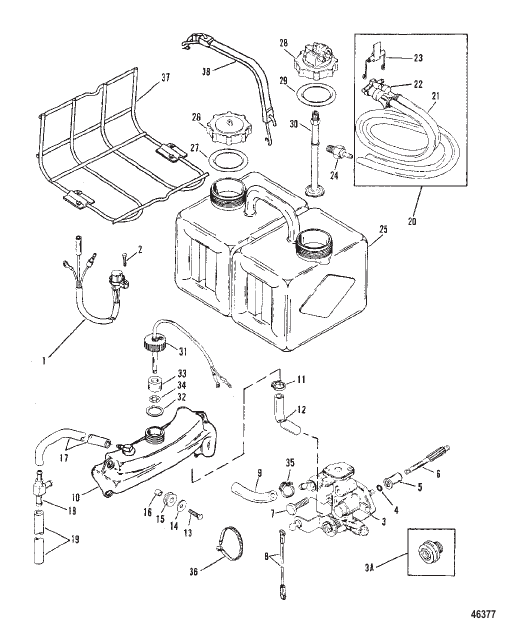

OIL INJECTION COMPONENTS
Parts (40)
| # | Part Number | Description | Qty | Status |
|---|---|---|---|---|
| 1 | 12430A4 |
ДАТЧИК В СБОРЕ SENSOR ASSEMBLY |
1 | |
| 10 | 99443T |
РЕЗЕРВУАР Масло RESERVOIR Oil |
1 | superseded |
| 11 | 415823 |
ЗАЖИМ OIL HOSE (LARGE) CLAMP OIL HOSE (LARGE) |
2 | discontinued |
| 12 | 4301736 |
ТРУБОПРОВОД OIL RESERVOIR TO OIL PUMP TUBING OIL RESERVOIR TO OIL PUMP |
1 | superseded |
| 13 | 69020 |
ВИНТ (№10-32 x 0.875) OIL RESERVOIR ATTACHING (7/8") SCREW (#10-32 x .875) OIL RESERVOIR ATTACHING (7/8") |
3 | superseded |
| 14 | 42118 |
ШАЙБА OIL RESERVOIR SCREW WASHER OIL RESERVOIR SCREW |
6 | |
| 15 | 42117 |
УПЛОТНИТЕЛЬНОЕ КОЛЬЦО OIL RESERVOIR SCREW GROMMET OIL RESERVOIR SCREW |
3 | |
| 16 | 42116 |
ВТУЛКА OIL RESERVOIR SCREW BUSHING OIL RESERVOIR SCREW |
3 | |
| 17 | 99127109 |
ТРУБОПРОВОД (Общая длина 57.00") OIL LINE (57.00 Inches Bulk) OIL |
1 | superseded |
| 18 | 42425 |
ТРОЙНИК OIL TUBING TEE OIL TUBING |
1 | discontinued |
| 19 | 9072925 |
РУКАВ OIL (6-3/4") HOSE OIL (6-3/4") |
1 | |
| 2 | 48409 |
ВИНТ (№10-16 x 0.625), нержавеющая сталь SENSOR ATTACHING (5/8") SCREW (#10-16 x .625) Stainless Steel SENSOR ATTACHING (5/8") |
1 | |
| 20 | NA |
NOT AVAILABLE HOUSING ASSEMBLY (Kit - NLA)(Order parts separately) NOT AVAILABLE HOUSING ASSEMBLY (Kit - NLA)(Order parts separately) |
1 | |
| 21 | 99439 |
РУКАВ (114.00") OIL HOSE (114.00 Inches) OIL |
1 | |
| 22 | 12540A3 |
КОРПУС HOUSING |
1 | discontinued |
| 23 | 12242A1 |
ЗАЩЕЛКА LATCH |
1 | discontinued |
| 24 | 43278 |
ФИТИНГ CHECK CALVE (CRANKCASE) FITTING CHECK CALVE (CRANKCASE) |
1 | superseded |
| 25 | 87421 |
БАК TANK |
1 | |
| 26 | 43298A2 |
КОЛПАЧОК В СБОРЕ OIL TANK CAP ASSEMBLY OIL TANK |
1 | |
| 27 | 11332 |
УПЛОТНИТЕЛЬНОЕ КОЛЬЦО (2.225 x 0.210) CAP O-RING (2.225 x .210) CAP |
1 | |
| 28 | 43295A5 |
КОРПУС В СБОРЕ Переходник HOUSING ASSEMBLY Adaptor |
1 | superseded |
| 29 | 11332 |
УПЛОТНИТЕЛЬНОЕ КОЛЬЦО (2.225 x 0.210) ADAPTOR HOUSING O-RING (2.225 x .210) ADAPTOR HOUSING |
1 | |
| 3 | 815699 |
НАСОС В СБОРЕ Масло PUMP ASSEMBLY Oil |
1 | superseded |
| 30 | 99802 |
ТРУБА OIL PICK-UP TUBE OIL PICK-UP |
1 | |
| 31 | 43300A1 |
КОЛПАЧОК В СБОРЕ OIL RESERVOIR CAP ASSEMBLY OIL RESERVOIR |
1 | superseded |
| 32 | 43307 |
ПРОКЛАДКА RESERVOIR CAP GASKET RESERVOIR CAP |
1 | superseded |
| 33 | 99022A1 |
ПОПЛАВОК В СБОРЕ FLOAT ASSEMBLY |
1 | superseded |
| 34 | 99265 |
ГАЙКА ТОЛКАТЕЛЯ PUSH NUT |
1 | |
| 35 | 415824 |
ЗАЖИМ OIL HOSE (SMALL) CLAMP OIL HOSE (SMALL) |
2 | discontinued |
| 36 | 90077 |
ЛЕНТОЧНЫЙ ХОМУТ TIE STRAP |
AR | superseded |
| 37 | 12335A1 |
КОМПЛЕКТ КРОНШТЕЙНА BRACKET KIT |
1 | |
| 38 | 12323A1 |
КОМПЛЕКТ ШНУРА / КРЮКОВ CORD/HOOK KIT |
1 | |
| 3A | 814103 |
ПОДШИПНИК (W/SEAL) BEARING (W/SEAL) |
1 | superseded |
| 4 | 11379 |
УПЛОТНИТЕЛЬНОЕ КОЛЬЦО OIL PUMP O-RING OIL PUMP |
1 | |
| 5 | 41429A2 |
БЛОК ПОДШИПНИКА DRIVE GEAR BEARING ASSEMBLY DRIVE GEAR |
1 | |
| 6 | 12726 |
ПЕРЕДАЧА Ведомый GEAR Driven |
1 | superseded |
| 7 | 32228 |
ВИНТ (№10-32 x 0.625) OIL PUMP TO CRANKCASE (5/8") SCREW (#10-32 x .625) OIL PUMP TO CRANKCASE (5/8") |
1 | |
| 7 | 41507 |
ВИНТ (№10-32 x 1.120) OIL PUMP TO CRANKCASE (1-1/8") SCREW (#10-32 x 1.120) OIL PUMP TO CRANKCASE (1-1/8") |
1 | |
| 8 | 1938512 |
СОЕДИНИТЕЛЬ В СБОРЕ THROTTLE LEVER TO OIL PUMP LINK ASSEMBLY THROTTLE LEVER TO OIL PUMP |
1 | |
| 9 | 4301619 |
ТРУБОПРОВОД OIL PUMP TUBING OIL PUMP |
1 | superseded |
