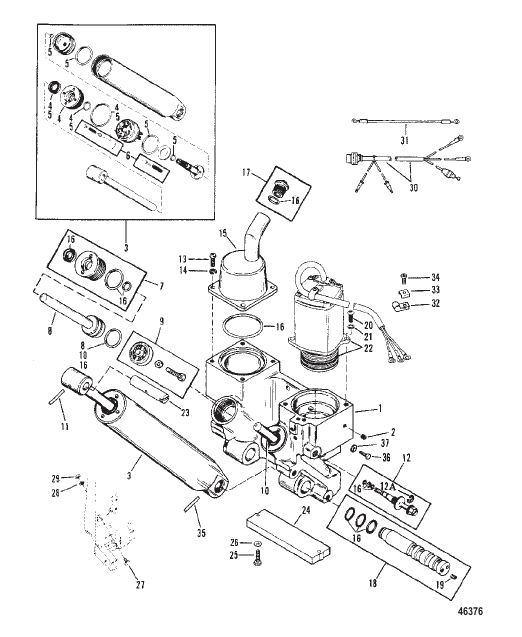

| # | Part Number | Description | Qty | Status |
|---|
| 1 |
99659A21 |
MANIFOLD ASSEMBLY
|
1 |
disc.
|
| 10 |
43398A3 |
PISTON/ROD ASSEMBLY Power Trim (STARBOARD)
|
1 |
superseded
|
| 11 |
13794 |
PIN Groove TRIM CYLINDER (UPPER)
|
1 |
superseded
|
| 12 |
812843A1 |
VALVE ASSEMBLY
|
1 |
superseded
|
| 12A |
812844 |
E RING
|
1 |
superseded
|
| 13 |
4000327 |
SCREW (M6 x 14) COVER
|
4 |
|
| 14 |
43450 |
WASHER COVER SCREW
|
4 |
superseded
|
| 15 |
99642 |
COVER MANIFOLD
|
1 |
disc.
|
| 16 |
48462A2 |
O-RING KIT
|
1 |
superseded
|
| 17 |
99609A1 |
PLUG ASSEMBLY
|
1 |
disc.
|
| 18 |
99641A1 |
SHAFT ASSEMBLY
|
1 |
disc.
|
| 19 |
99616 |
PIPE PLUG SHAFT
|
2 |
superseded
|
| 2 |
99616 |
PIPE PLUG MANIFOLD
|
11 |
superseded
|
| 20 |
4008820 |
SCREW (M6 x 20) PUMP AND MOTOR
|
2 |
|
| 21 |
400256 |
LOCKWASHER (M6)
|
2 |
|
| 22 |
99186T |
PUMP AND MOTOR
|
1 |
superseded
|
| 23 |
99625 |
SHAFT UPPER
|
1 |
superseded
|
| 24 |
43396A2 |
ANODE ASSEMBLY
|
1 |
superseded
|
| 25 |
4000332 |
SCREW (M6 x 35) ANODE
|
2 |
|
| 26 |
29245 |
WASHER (.281 x .500 x .060) Stainless Steel ANODE SCREW
|
2 |
superseded
|
| 27 |
996301 |
STRIKER PLATE TRIM SHAFT
|
2 |
superseded
|
| 28 |
58643 |
LOCKWASHER (.375)
|
2 |
|
| 29 |
46335 |
NUT (.375-24)
|
2 |
|
| 3 |
41493A7 |
TRIM CYLINDER ASSEMBLY
|
1 |
disc.
|
| 30 |
814609A1 |
HARNESS ASSEMBLY Control POWER TRIM (W/FUSE)
|
1 |
disc.
|
| 30 |
17201A5 |
HARNESS ASSEMBLY Control POWER TRIM (W/O FUSE)
|
1 |
disc.
|
| 31 |
88808A22 |
CABLE ASSEMBLY (6-3/8"-RED)
|
1 |
disc.
|
| 32 |
22875 |
CLIP PUMP WIRE
|
2 |
|
| 33 |
69205 |
C WASHER CLIP SCREW
|
2 |
superseded
|
| 34 |
69079 |
SCREW (#10-16 x .440) CLIP TO TRANSOM BRACKET
|
2 |
|
| 35 |
44431 |
PIN Groove TRIM CYLINDER (LOWER)
|
1 |
superseded
|
| 36 |
4000377 |
SCREW (M10 x 30) MANFOLD
|
6 |
|
| 37 |
400258 |
LOCKWASHER (M10) Stainless Steel MANIFOLD SCREW
|
6 |
disc.
|
| 4 |
41492A1 |
GUIDE ASSEMBLY
|
1 |
disc.
|
| 5 |
41478A1 |
REPAIR KIT
|
1 |
|
| 6 |
41482A2 |
CHECK VALVE KIT
|
1 |
disc.
|
| 7 |
99638A1 |
GUIDE ASSEMBLY TRIM ROD
|
2 |
superseded
|
| 8 |
43397A6 |
PISTON/ROD ASSEMBLY Power Trim (PORT)
|
1 |
superseded
|
| 9 |
12184A1 |
TRIM FILTER ASSEMBLY
|
1 |
disc.
|
