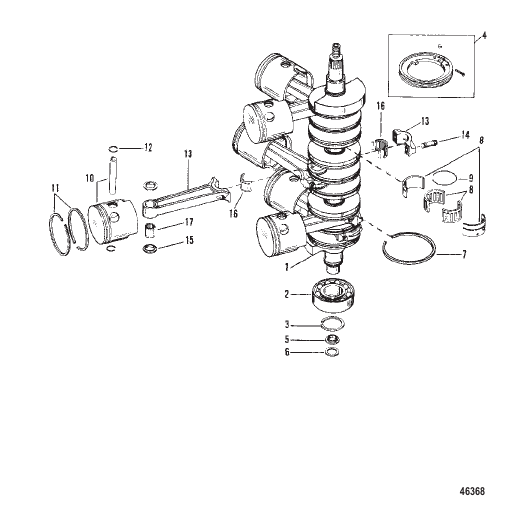

CRANKSHAFT PISTONS AND CONNECTING RODS
Parts (20)
| # | Part Number | Description | Qty | Status |
|---|---|---|---|---|
| - | 14697A87 |
КОМПЛЕКТ ПРОКЛАДОК GASKET SET |
discontinued | |
| 1 | 8745A5 |
КОЛЕНЧАТЫЙ ВАЛ В СБОРЕ CRANKSHAFT ASSEMBLY |
1 | superseded |
| 10 | 8666A3 |
ПОРШЕНЬ В СБОРЕ (STARBOARD) PISTON ASSEMBLY (STARBOARD) |
3 | superseded |
| 10 | 8667A3 |
ПОРШЕНЬ В СБОРЕ (PORT) PISTON ASSEMBLY (PORT) |
3 | superseded |
| 11 | 78996A12 |
КОЛЬЦО В СБОРЕ Поршень RING ASSEMBLY Piston |
1 | superseded |
| 12 | 52035 |
КОЛЬЦО Замок PISTON RING Lock PISTON |
12 | superseded |
| 13 | 8119A4 |
СОЕДИНИТЕЛЬНЫЙ СТЕРЖЕНЬ В СБОРЕ CONNECTING ROD ASSEMBLY |
6 | superseded |
| 14 | 93886 |
ВИНТ (0.312-28 x 0.875) CONNECTING ROD SCREW (.312-28 x .875) CONNECTING ROD |
12 | |
| 15 | 47247 |
ШАЙБА NEEDLE LOCATING WASHER NEEDLE LOCATING |
12 | superseded |
| 16 | 17514A1 |
КОМПЛЕКТ ПОДШИПНИКОВ CRANKSHAFT END BEARING KIT CRANKSHAFT END |
6 | superseded |
| 17 | 67483 |
ПОДШИПНИК Игла PISTON END BEARING Needle PISTON END |
174 | |
| 2 | 67923 |
ПОДШИПНИК Шарик CRANKSHAFT (LOWER) BEARING Ball CRANKSHAFT (LOWER) |
1 | superseded |
| 3 | 67446 |
КОЛЬЦО BALL BEARING RING BALL BEARING |
1 | |
| 4 | 99727A1 |
ПЕРЕДАЧА Привод GEAR Drive |
1 | |
| 5 | 54196A6 |
СТАКАН В СБОРЕ SEAL CARRIER ASSEMBLY SEAL |
1 | |
| 6 | 65800 |
УПАКОВКА CARRIER PACKING CARRIER |
1 | |
| 7 | 67377 |
КОЛЬЦО Уплотнение SEALING - CRANKSHAFT (.124 THICK) RING Sealing SEALING - CRANKSHAFT (.124 THICK) |
AR | superseded |
| 7 | 78633 |
КОЛЬЦО SEALING - CRANKSHAFT (.139 THICK) RING SEALING - CRANKSHAFT (.139 THICK) |
AR | discontinued |
| 8 | 93495 |
ПОДШИПНИК Ролик CRANKSHAFT BEARING Roller CRANKSHAFT |
2 | superseded |
| 9 | 67444 |
КОЛЬЦО Стопор ROLLER BEARING RING Retaining ROLLER BEARING |
2 | discontinued |
