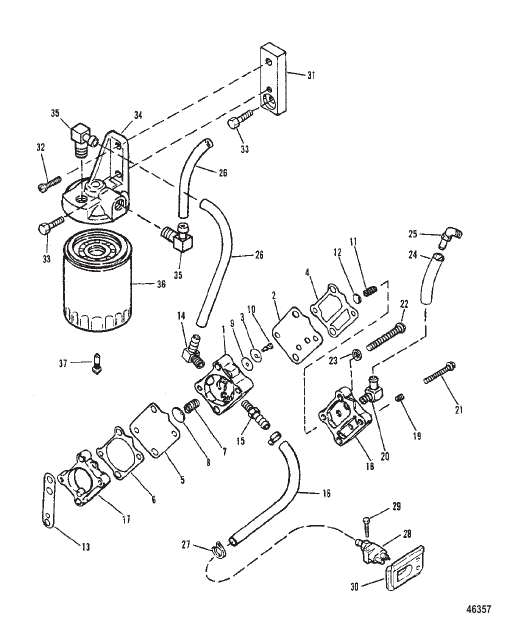

| # | Part Number | Description | Qty | Status |
|---|
| 1 |
15930A15 |
PUMP KIT Fuel
|
1 |
|
| 10 |
NSS |
NOT SOLD SEPARATE RETAINER
|
2 |
|
| 11 |
NSS |
NOT SOLD SEPARATE SPRING
|
1 |
|
| 12 |
NSS |
NOT SOLD SEPARATE CAP
|
1 |
|
| 13 |
987691 |
GASKET BASE
|
1 |
superseded
|
| 14 |
14868 |
FITTING FUEL PUMP (ELBOW)
|
1 |
|
| 15 |
16604 |
FITTING Straight (.125-27) FUEL PUMP (STRAIGHT)
|
1 |
|
| 16 |
9912976 |
TUBING
|
1 |
superseded
|
| 17 |
144303 |
BASE FUEL PUMP
|
1 |
|
| 18 |
98775A3 |
PLATE FUEL PUMP
|
1 |
superseded
|
| 19 |
56800 |
PLUG Pipe (.0625-27)
|
1 |
|
| 2 |
42990A6 |
DIAPHRAGM KIT CONTENTS INDICATED BY FOOTNOTE 3
|
1 |
superseded
|
| 20 |
15979 |
FITTING
|
1 |
disc.
|
| 21 |
16452 |
SCREW (#12-24 x 2.00) FUEL PUMP
|
2 |
|
| 22 |
4000310 |
SCREW (M5 x 40) FUEL PUMP TO CRANKCASE
|
2 |
disc.
|
| 23 |
4002314 |
WASHER FUEL PUMP SCREW
|
2 |
|
| 24 |
9072925 |
HOSE PULSE
|
1 |
|
| 25 |
99751 |
FITTING (.0625-27) Brass PULSE HOSE (90 DEGREE)
|
1 |
superseded
|
| 26 |
1350377 |
HOSE
|
2 |
superseded
|
| 27 |
90077 |
TIE STRAP FUEL TUBING
|
AR |
superseded
|
| 28 |
15781A1 |
CONNECTOR Fuel
|
1 |
superseded
|
| 29 |
69067 |
SCREW (.250-20 x 1.375) FUEL CONNECTOR
|
1 |
|
| 3 |
NSS |
NOT SOLD SEPARATE CHECK VALVE, RUBBER
|
2 |
|
| 30 |
812782 |
SEAL
|
1 |
disc.
|
| 31 |
813657 |
BRACKET
|
1 |
disc.
|
| 32 |
69067 |
SCREW (.250-20 x 1.375)
|
1 |
|
| 33 |
28668 |
SCREW (.250-20 x .875) Stainless Steel FUEL FILTER BASE
|
2 |
|
| 34 |
13170A1 |
BASE FUEL FILTER
|
1 |
superseded
|
| 35 |
13607 |
FITTING BASE
|
2 |
superseded
|
| 36 |
18458A1 |
FILTER ASSEMBLY Fuel
|
1 |
superseded
|
| 37 |
14570 |
PROBE WATER SENSING
|
1 |
|
| 4 |
NSS |
NOT SOLD SEPARATE GASKET, BOOST
|
1 |
|
| 5 |
NSS |
NOT SOLD SEPARATE DIAPHRAGM
|
2 |
|
| 6 |
NSS |
NOT SOLD SEPARATE GASKET, PULSE
|
1 |
|
| 7 |
NSS |
NOT SOLD SEPARATE SPRING
|
1 |
|
| 8 |
NSS |
NOT SOLD SEPARATE CAP
|
1 |
|
| 9 |
NSS |
NOT SOLD SEPARATE CHECK VAVLE
|
2 |
|
