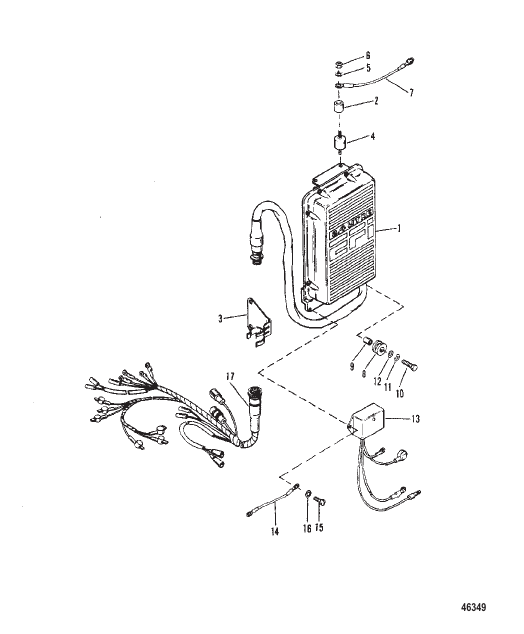

E.C.U. ASSEMBLY
Parts (17)
| # | Part Number | Description | Qty | Status |
|---|---|---|---|---|
| 1 | 14632A2 |
ECU Блок управления двигателем ECU Engine Control Unit |
1 | discontinued |
| 10 | 28667 |
ВИНТ (0.250-20 x 1.00), нержавеющая сталь SCREW (.250-20 x 1.00) Stainless Steel |
1 | |
| 11 | 26992 |
СТОПОРНАЯ ШАЙБА (0.250), нержавеющая сталь LOCKWASHER (.250) Stainless Steel |
1 | |
| 12 | 65567 |
ШАЙБА (0.265 x 0.750 x 0.048), нержавеющая сталь WASHER (.265 x .750 x .048) Stainless Steel |
1 | |
| 13 | 13202A2 |
МОДУЛЬ В СБОРЕ Водяной сенсор MODULE ASSEMBLY Water Sensor |
1 | discontinued |
| 14 | 88807A18 |
КАБЕЛЬ В СБОРЕ (BLACK) CABLE ASSEMBLY (BLACK) |
1 | discontinued |
| 15 | 37571 |
ВИНТ (0.190-32 x 0.500) WATER SENSOR MODULE SCREW (.190-32 x .500) WATER SENSOR MODULE |
2 | discontinued |
| 16 | 89302 |
ШАЙБА (0.203 x 0.406 x 0.040) WATER SENSOR MODULE SCREW WASHER (.203 x .406 x .040) WATER SENSOR MODULE SCREW |
2 | |
| 17 | 98866A14 |
ЖГУТ ПРОВОДОВ В СБОРЕ E.C.U. AND INJECTORS HARNESS ASSEMBLY E.C.U. AND INJECTORS |
1 | |
| 2 | 34948 |
ПРОСТАВКА COWL MOUNTING (UPPER) SPACER COWL MOUNTING (UPPER) |
2 | |
| 3 | 146951 |
ЗАЖИМ CLIP |
1 | discontinued |
| 4 | 90435 |
КРЕПЛЕНИЕ COWL MOUNTING BRACKET MOUNT COWL MOUNTING BRACKET |
2 | |
| 5 | 21249 |
ШАЙБА MOUNT ATTACHING WASHER MOUNT ATTACHING |
4 | |
| 6 | 20361 |
ГАЙКА (0.250-28) MOUNT ATTACHING NUT (.250-28) MOUNT ATTACHING |
4 | superseded |
| 7 | 88807A19 |
КАБЕЛЬ В СБОРЕ CABLE ASSEMBLY |
1 | |
| 8 | 14637 |
УПЛОТНИТЕЛЬНОЕ КОЛЬЦО GROMMET |
1 | |
| 9 | 14636 |
ВТУЛКА BUSHING |
1 | discontinued |
