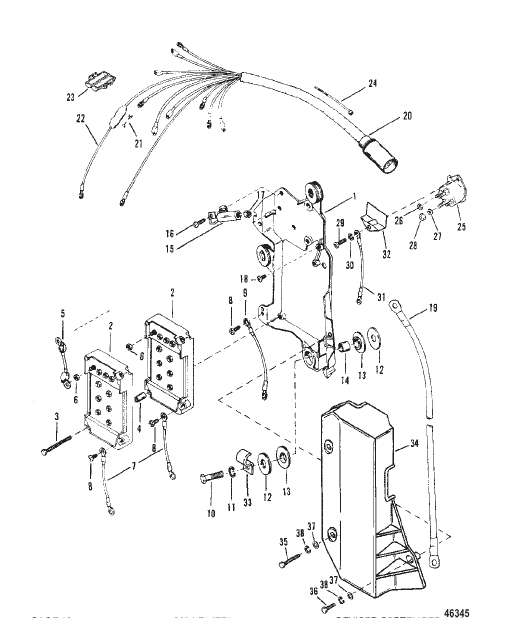

WIRING HARNESS/STARTER SOLENOID
Parts (39)
| # | Part Number | Description | Qty | Status |
|---|---|---|---|---|
| 1 | 434291 |
ДИСК ЗАЖИГАНИЯ IGNITION IGNITION PLATE IGNITION |
1 | superseded |
| 10 | 69092 |
ВИНТ (1.25) IGNITION PLATE (1-1/4") SCREW (1.25) IGNITION PLATE (1-1/4") |
3 | superseded |
| 11 | 26993 |
СТОПОРНАЯ ШАЙБА (0.312) IGNITION PLATE SCREW LOCKWASHER (.312) IGNITION PLATE SCREW |
3 | superseded |
| 12 | 36042 |
ШАЙБА IGNITION PLATE SCREW WASHER IGNITION PLATE SCREW |
6 | |
| 13 | 67264 |
ШАЙБА (Резина) IGNITION PLATE SCREW (RUBBER) WASHER (Rubber) IGNITION PLATE SCREW (RUBBER) |
6 | |
| 14 | 67268 |
ВТУЛКА IGNITION PLATE SCREW BUSHING IGNITION PLATE SCREW |
3 | discontinued |
| 15 | 33386A3 |
ПЕРЕКЛЮЧАТЕЛЬ В СБОРЕ SWITCH ASSEMLBY |
1 | discontinued |
| 16 | 38055 |
ВИНТ (0.190-32 x 0.620) MERCURY SWITCH TO IGNITION PLATE (5/8") SCREW (.190-32 x .620) MERCURY SWITCH TO IGNITION PLATE (5/8") |
1 | discontinued |
| 17 | 45076 |
ГАЙКА (№10-32), латунь MERCURY SWITCH TERMINAL NUT (#10-32) Brass MERCURY SWITCH TERMINAL |
1 | |
| 18 | 87926 |
ВИНТ (№10-32 x 0.500) LEAD ATTACHING (1/2") SCREW (#10-32 x .500) LEAD ATTACHING (1/2") |
1 | discontinued |
| 19 | 88439A3 |
КАБЕЛЬ В СБОРЕ Положительный полюс – аккумулятор POSITIVE CABLE ASSEMBLY Positive - Battery POSITIVE |
1 | |
| 19 | 88439A2 |
КАБЕЛЬ В СБОРЕ Аккумулятор – отрицательный полюс NEGATIVE CABLE ASSEMBLY Battery - Negative NEGATIVE |
1 | |
| 2 | 7778A9 |
РАСПРЕДЕЛИТЕЛЬНАЯ КОРОБКА В СБОРЕ SWITCHBOX ASSEMBLY |
2 | superseded |
| 20 | 96220A13 |
ЖГУТ ПРОВОДОВ В СБОРЕ ENGINE HARNESS ASSEMBLY ENGINE |
1 | superseded |
| 21 | 79091 |
ПЛАВКИЙ ПРЕДОХРАНИТЕЛЬ 20 ампер FUSE 20 Ampere |
1 | superseded |
| 22 | 95084A2 |
КАБЕЛЬ В СБОРЕ FUSE CABLE ASSEMBLY FUSE |
1 | |
| 23 | 134731 |
ДЕРЖАТЕЛЬ Предохранитель HOLDER Fuse |
1 | discontinued |
| 24 | 90077 |
ЛЕНТОЧНЫЙ ХОМУТ HARNESS AND CABLES TIE STRAP HARNESS AND CABLES |
AR | superseded |
| 25 | 15857 |
ЭЛЕКТРОМАГНИТ Стартер SOLENOID Starter |
1 | superseded |
| 26 | 45076 |
ГАЙКА (№10-32), латунь SOLENOID TERMINALS (10-32) NUT (#10-32) Brass SOLENOID TERMINALS (10-32) |
2 | |
| 27 | 53166 |
СТОПОРНАЯ ШАЙБА (0.312) SOLENOID TERMINALS (5/16") LOCKWASHER (.312) SOLENOID TERMINALS (5/16") |
2 | |
| 28 | 68292 |
ГАЙКА (0.312-18) SOLENOID TERMINALS (5/16-18) NUT (.312-18) SOLENOID TERMINALS (5/16-18) |
2 | superseded |
| 29 | 31716 |
ВИНТ (0.250-20 x 0.620) SOLENOID TO IGNITION PLATE (5/8") SCREW (.250-20 x .620) SOLENOID TO IGNITION PLATE (5/8") |
2 | discontinued |
| 3 | 13669 |
ВИНТ (№12-24 x 2.00) SWITCH BOX TO IGNITION PLATE (2-1/2") SCREW (#12-24 x 2.00) SWITCH BOX TO IGNITION PLATE (2-1/2") |
2 | discontinued |
| 30 | 26992 |
СТОПОРНАЯ ШАЙБА (0.250), нержавеющая сталь SOLENOID TO IGNITION PLATE SCREW LOCKWASHER (.250) Stainless Steel SOLENOID TO IGNITION PLATE SCREW |
2 | |
| 31 | 65999A2 |
КАБЕЛЬ В СБОРЕ Черный UPPER MOUNT (BLACK) CABLE ASSEMBLY Black UPPER MOUNT (BLACK) |
1 | discontinued |
| 32 | 78866 |
РАЗЪЕДИНИТЕЛЬ SOLENOID (OLD DESIGN) INSULATOR SOLENOID (OLD DESIGN) |
1 | discontinued |
| 33 | 47483 |
J-ЗАЖИМ J CLIP |
2 | |
| 34 | 814422T |
КРЫШКА IGNITION PLATE [C239553] & Up COVER IGNITION PLATE [C239553] & Up |
1 | discontinued |
| 35 | 88447 |
ВИНТ (0.190-32 x 1.62) [C239553] & Up SCREW (.190-32 x 1.62) [C239553] & Up |
2 | |
| 36 | 69020 |
ВИНТ (№10-32 x 0.875) [C239553] & Up SCREW (#10-32 x .875) [C239553] & Up |
1 | superseded |
| 37 | 89302 |
ШАЙБА (0.203 x 0.406 x 0.040) [C239553] & Up WASHER (.203 x .406 x .040) [C239553] & Up |
3 | |
| 38 | 26992 |
СТОПОРНАЯ ШАЙБА (0.250), нержавеющая сталь [C239553] & Up LOCKWASHER (.250) Stainless Steel [C239553] & Up |
3 | |
| 4 | 94453 |
ВТУЛКА SWITCH BOX SCREW BUSHING SWITCH BOX SCREW |
2 | discontinued |
| 5 | 88528A2 |
КАБЕЛЬ В СБОРЕ (6" - RED/WHITE) CABLE ASSEMBLY (6" - RED/WHITE) |
1 | discontinued |
| 6 | 45076 |
ГАЙКА (№10-32), латунь SWITCH BOX TERMINAL NUT (#10-32) Brass SWITCH BOX TERMINAL |
20 | |
| 7 | 60871A10 |
ПРОВОД В СБОРЕ SWITCH BOX WIRE ASSEMBLY SWITCH BOX |
2 | |
| 8 | 62568 |
ВИНТ (№10-16 x 0.375) WIRE ATTACHING SCREW (#10-16 x .375) WIRE ATTACHING |
3 | |
| 9 | 65999A3 |
КАБЕЛЬ В СБОРЕ Черный BLACK CABLE ASSEMBLY Black BLACK |
1 | discontinued |
