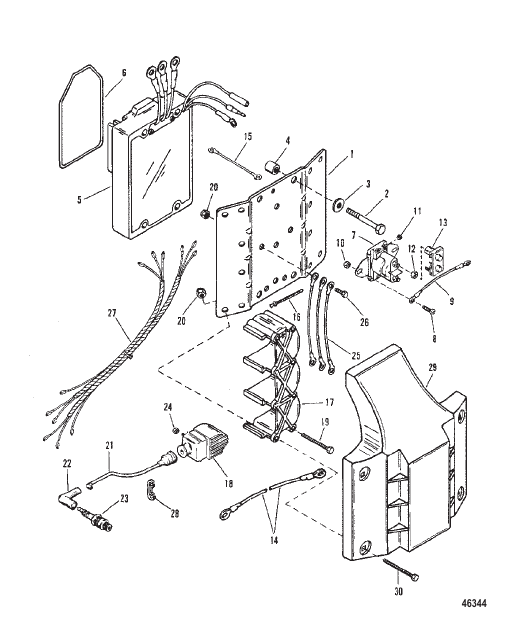

IGNITION COIL/VOLTAGE REGULATOR
Parts (31)
| # | Part Number | Description | Qty | Status |
|---|---|---|---|---|
| 1 | 195871 |
ПЛАСТИНА MOUNTING PLATE MOUNTING |
1 | superseded |
| 10 | 56374 |
ГАЙКА (0.250-20) SOLENOID SCREW NUT (.250-20) SOLENOID SCREW |
3 | superseded |
| 11 | 26419 |
ГАЙКА (№8-32), латунь SOLENOID TERMINAL (8-32) NUT (#8-32) Brass SOLENOID TERMINAL (8-32) |
4 | |
| 12 | 94330 |
ГАЙКА (0.250-20), латунь SOLENOID TERMINAL (1/4-20) NUT (.250-20) Brass SOLENOID TERMINAL (1/4-20) |
4 | |
| 13 | 97861 |
РАЗЪЕДИНИТЕЛЬ STARTER SOLENOID (OLD DESIGN) INSULATOR STARTER SOLENOID (OLD DESIGN) |
2 | |
| 14 | 87379A14 |
ПРОВОД В СБОРЕ (2.750") (2-3/4" - RED) WIRE ASSEMBLY (2.750 Inches) (2-3/4" - RED) |
1 | discontinued |
| 14 | 88807A8 |
КАБЕЛЬ В СБОРЕ (3.50"), черный (3-1/2" - BLACK) CABLE ASSEMBLY (3.50 Inches) Black (3-1/2" - BLACK) |
2 | discontinued |
| 15 | 88807A29 |
КАБЕЛЬ В СБОРЕ (9" - BLACK) CABLE ASSEMBLY (9" - BLACK) |
1 | discontinued |
| 16 | 90077 |
ЛЕНТОЧНЫЙ ХОМУТ TIE STRAP |
AR | superseded |
| 17 | 43542 |
КРЫШКА IGNITION COIL COVER IGNITION COIL |
2 | discontinued |
| 18 | 7370A13 |
КАТУШКА В СБОРЕ Зажигание COIL ASSEMBLY Ignition |
6 | superseded |
| 19 | 90048 |
ВИНТ (№10-32 x 2.125) IGNITION COIL COVER SCREW (#10-32 x 2.125) IGNITION COIL COVER |
8 | discontinued |
| 2 | 30720 |
ВИНТ (0.250-20 x 2.25) VOLTAGE REGULATOR SCREW (.250-20 x 2.25) VOLTAGE REGULATOR |
4 | discontinued |
| 20 | 90078 |
ГАЙКА (№10-32) COVER SCREW/GROUND WIRE NUT (#10-32) COVER SCREW/GROUND WIRE |
14 | discontinued |
| 21 | 813715A9 |
КОМПЛЕКТ КАБЕЛЯ Зажигание HIGH TENSION CABLE KIT Ignition HIGH TENSION |
1 | |
| 22 | 63709A1 |
КОМПЛЕКТ ЧЕХЛА/КЛЕММ HIGH TENSION CABLE BOOT/TERMINAL KIT HIGH TENSION CABLE |
6 | |
| 23 | 14103568 |
СВЕЧА ЗАЖИГАНИЯ SPARK PLUG |
6 | superseded |
| 24 | 45076 |
ГАЙКА (№10-32), латунь IGNITION COIL TERMINAL NUT (#10-32) Brass IGNITION COIL TERMINAL |
12 | |
| 25 | 88807A13 |
КАБЕЛЬ В СБОРЕ (5-1/2" - BLACK) CABLE ASSEMBLY (5-1/2" - BLACK) |
6 | |
| 26 | 69022 |
ВИНТ (№10-32 x 0.500), нержавеющая сталь GROUNDING WIRE SCREW (#10-32 x .500) Stainless Steel GROUNDING WIRE |
2 | |
| 27 | 69739A7 |
ЖГУТ ПРОВОДОВ В СБОРЕ COIL TO SWITCH BOX (#2,4 AND 6) HARNESS ASSEMBLY COIL TO SWITCH BOX (#2,4 AND 6) |
1 | discontinued |
| 28 | 54676 |
ФИКСАТОР Двухпроводной RETAINER Two Wire |
2 | |
| 29 | 814423T |
КРЫШКА COIL PLATE [C239553] & Up COVER COIL PLATE [C239553] & Up |
1 | discontinued |
| 3 | 26992 |
СТОПОРНАЯ ШАЙБА (0.250), нержавеющая сталь LOCKWASHER (.250) Stainless Steel |
4 | |
| 30 | 814343 |
ВИНТ (№10-32 x 2.380) [C239553] & Up SCREW (#10-32 x 2.380) [C239553] & Up |
4 | |
| 4 | 19661 |
ВТУЛКА BUSHING |
4 | |
| 5 | 18736A15 |
РЕГУЛЯТОР В СБОРЕ Напряжение REGULATOR ASSEMBLY Voltage |
1 | superseded |
| 6 | 18717 |
УПЛОТНЕНИЕ SEAL |
1 | discontinued |
| 7 | 96158 |
ЭЛЕКТРОМАГНИТ Стартер SOLENOID Starter |
2 | superseded |
| 8 | 90192 |
ВИНТ (0.250-20 x 0.750), нержавеющая сталь STARTER SOLENOID SCREW (.250-20 x .750) Stainless Steel STARTER SOLENOID |
3 | |
| 9 | 88807A6 |
КАБЕЛЬ В СБОРЕ (3.50"), черный (3-1/2" - BLACK) CABLE ASSEMBLY (3.50 Inches) Black (3-1/2" - BLACK) |
1 |
