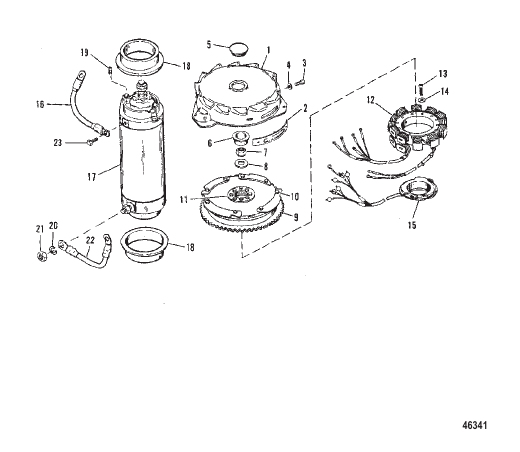

| # | Part Number | Description | Qty | Status |
|---|
| 1 |
18896A1 |
COVER KIT FLYWHEEL
|
1 |
|
| 10 |
32417 |
SCREW (.250-28 x .625) FLYWHEEL PLATE
|
8 |
disc.
|
| 11 |
68997 |
SCREW (.312-24 x .750) FLYWHEEL HUB
|
8 |
|
| 12 |
9610A5 |
STATOR
|
1 |
disc.
|
| 13 |
90045 |
SCREW (#10-32 x 1.375) STATOR
|
4 |
|
| 14 |
26996 |
LOCKWASHER (#10) Stainless Steel STATOR SCREW
|
4 |
|
| 15 |
96455A9 |
PLATE ASSEMBLY Trigger
|
1 |
|
| 16 |
93388A1 |
CABLE ASSEMBLY (6.00 Inches) Black PLATE TO STARTER MOTOR (BLACK)
|
1 |
|
| 17 |
79472 |
STARTER MOTOR ASSEMBLY
|
1 |
superseded
|
| 18 |
56703 |
COLLAR STARTER MOTOR
|
2 |
superseded
|
| 19 |
68042 |
STOP Rubber RUBBER-STARTER MOTOR
|
2 |
superseded
|
| 2 |
79022 |
MARKER TIMING
|
1 |
|
| 20 |
26992 |
LOCKWASHER (.250) Stainless Steel STARTER MOTOR TERMINAL
|
1 |
|
| 21 |
20890 |
NUT (.250-20) STARTER MOTOR TERMINAL
|
1 |
|
| 22 |
93388A2 |
CABLE ASSEMBLY Black SOLENOID TO STARTER MOTOR (BLACK)
|
1 |
superseded
|
| 23 |
69035 |
SCREW AND LOCKWASHER (.250-20 x .625) Stainless Steel CABLE TO STARTER MOTOR
|
1 |
|
| 3 |
37572 |
SCREW (.190-32 x .380) TIMING MARKER
|
2 |
|
| 4 |
72761 |
WASHER (.203 x .562 x .060) Stainless Steel TIMING MARKER SCREW
|
2 |
|
| 5 |
89219 |
PLUG FLYWHEEL COVER
|
1 |
superseded
|
| 6 |
45907 |
PLUG Yellow FLYWHEEL
|
1 |
|
| 7 |
52901 |
NUT (.625-18) FLYWHEEL
|
1 |
|
| 8 |
68229 |
WASHER (.641 x 1.250 x .190) FLYWHEEL
|
1 |
superseded
|
| 9 |
9841A7 |
FLYWHEEL
|
1 |
superseded
|
