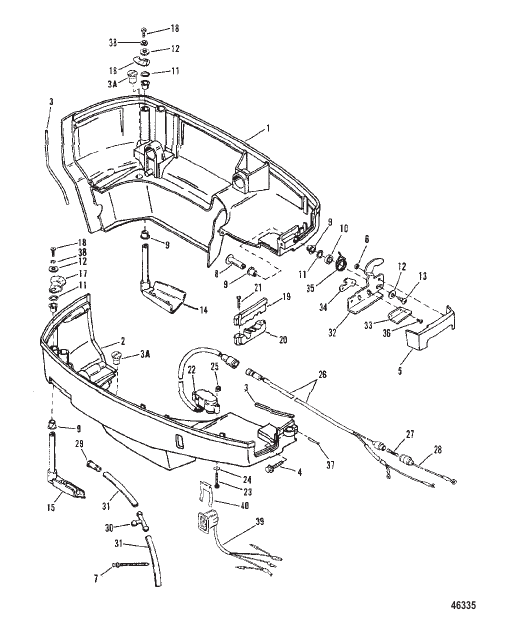

| # | Part Number | Description | Qty | Status |
|---|
| - |
813096A1 |
REAR LATCH KIT ORDER WHEN REPLACING NON-ROLLER COMPONENTS. (A PRODUCT IMPROVEMENT.)
|
1 |
disc.
|
| 1 |
9744A2 |
BOTTOM COWL ASSEMBLY (PORT) [C239552] & Below
|
1 |
superseded
|
| 1 |
9744A6 |
BOTTOM COWL (PORT) [C239553] & Up
|
1 |
superseded
|
| 10 |
19666 |
BUSHING
|
1 |
disc.
|
| 11 |
99611 |
WAVE WASHER
|
3 |
|
| 12 |
69057 |
WASHER (.281 x .734 x .063)
|
3 |
|
| 13 |
18192 |
SCREW (.250-20 x .620)
|
1 |
disc.
|
| 14 |
19648A3 |
HANDLE ASSEMBLY (PORT)
|
1 |
superseded
|
| 15 |
19647A3 |
HANDLE ASSEMBLY (STARBOARD)
|
1 |
disc.
|
| 16 |
19370 |
PAWL (PORT)
|
1 |
disc.
|
| 17 |
19369 |
PAWL (STARBOARD)
|
1 |
disc.
|
| 18 |
73286 |
SCREW (.250-20 x .500) Stainless Steel
|
2 |
|
| 19 |
19749 |
CLAMP (UPPER)
|
1 |
disc.
|
| 2 |
9745A1 |
BOTTOM COWL ASSEMBLY (STARBOARD) [C239552] & Below
|
1 |
disc.
|
| 2 |
9745A3 |
BOTTOM COWL (STARBOARD) [C239553] & Up
|
1 |
superseded
|
| 20 |
197481 |
CLAMP (LOWER)
|
1 |
disc.
|
| 21 |
92799 |
SCREW (#10-16 x 1.12)
|
2 |
|
| 22 |
16636A1 |
HARNESS ASSEMBLY TRIM. [C239552] & Below
|
1 |
disc.
|
| 23 |
72202 |
SCREW (#10-32 x 1.25) [C239552] & Below
|
2 |
|
| 24 |
56681 |
WASHER (.203 x .500 x .032) [C239552] & Below
|
2 |
superseded
|
| 25 |
29488 |
NUT (#10-32) [C239552] & Below
|
2 |
superseded
|
| 26 |
16639A1 |
HARNESS ASSEMBLY [C239552] & Below
|
1 |
disc.
|
| 27 |
79091 |
FUSE 20 Ampere [C239552] & Below
|
1 |
superseded
|
| 28 |
95084A2 |
CABLE ASSEMBLY FUSE [C239552] & Below
|
1 |
|
| 29 |
813613 |
FITTING TELLTALE
|
1 |
|
| 3 |
18701A1 |
SEAL KIT BOTTOM COWLS
|
1 |
disc.
|
| 30 |
90824 |
TEE TELLTALE
|
1 |
superseded
|
| 31 |
99127109 |
LINE (57.00 Inches Bulk) TELLTALE
|
1 |
superseded
|
| 32 |
8130762 |
FRONT HANDLE ASSEMBLY
|
1 |
disc.
|
| 33 |
813925 |
HANDLE LOCK
|
1 |
disc.
|
| 34 |
813926 |
HANDLE
|
1 |
disc.
|
| 35 |
8139291 |
SPRING
|
1 |
disc.
|
| 36 |
69079 |
SCREW (#10-16 x .440)
|
2 |
|
| 37 |
815296 |
PIN Lock
|
1 |
disc.
|
| 38 |
26992 |
LOCKWASHER (.250) Stainless Steel
|
2 |
|
| 39 |
18286A13 |
SWITCH ASSEMBLY [C239553] & Up
|
1 |
superseded
|
| 3A |
812821A1 |
CHECK VALVE
|
2 |
superseded
|
| 4 |
18699 |
SCREW (.250-20 x 1.320) COWL (STARBOARD)
|
4 |
|
| 40 |
812443 |
RETAINER SWITCH [C239553] & Up
|
1 |
superseded
|
| 5 |
18872A1 |
COVER ASSEMBLY
|
1 |
disc.
|
| 6 |
813692 |
LOCKNUT
|
2 |
superseded
|
| 7 |
90077 |
TIE STRAP
|
AR |
superseded
|
| 8 |
18727 |
ROD
|
1 |
disc.
|
| 9 |
65830 |
NYLINER
|
6 |
|
