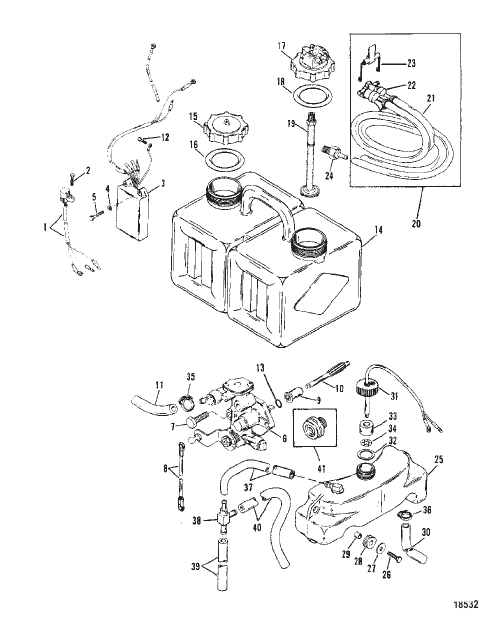

| # | Part Number | Description | Qty | Status |
|---|
| 1 |
12430A4 |
SENSOR ASSEMBLY
|
1 |
|
| 10 |
12726 |
GEAR Driven
|
1 |
superseded
|
| 11 |
4301619 |
TUBING OIL PUMP TO TEE
|
1 |
superseded
|
| 12 |
42813 |
SCREW (#10-32 X .380) WARNING MODULE LEAD
|
1 |
disc.
|
| 13 |
11379 |
O-RING OIL PUMP
|
1 |
|
| 14 |
87421 |
TANK
|
1 |
|
| 15 |
43298A2 |
CAP ASSEMBLY OIL TANK
|
1 |
|
| 16 |
11332 |
O-RING (2.225 x .210) CAP
|
1 |
|
| 17 |
43295A5 |
HOUSING ASSEMBLY Adaptor
|
1 |
superseded
|
| 18 |
11332 |
O-RING (2.225 x .210) ADAPTOR HOUSING
|
1 |
|
| 19 |
99802 |
TUBE OIL PICK-UP
|
1 |
|
| 2 |
48409 |
SCREW (#10-16 x .625) Stainless Steel SENSOR ATTACHING
|
1 |
|
| 20 |
12540A2 |
HOUSING ASSEMBLY Flywheel
|
1 |
superseded
|
| 21 |
99439 |
HOSE (114.00 Inches) OIL
|
1 |
|
| 22 |
12540A3 |
HOUSING
|
1 |
disc.
|
| 23 |
12242A1 |
LATCH
|
1 |
disc.
|
| 24 |
43278 |
FITTING CHECK VALVE (CRANKCASE)
|
1 |
superseded
|
| 25 |
994433 |
RESERVOIR Oil
|
1 |
superseded
|
| 26 |
69020 |
SCREW (#10-32 x .875) OIL RESERVOIR ATTACHING
|
3 |
superseded
|
| 27 |
42118 |
WASHER OIL RESERVOIR SCREW
|
6 |
|
| 28 |
42117 |
GROMMET OIL RESERVOIR SCREW
|
3 |
|
| 29 |
42116 |
BUSHING OIL RESERVOIR SCREW
|
3 |
|
| 3 |
41470A15 |
WARNING MODULE ASSEMBLY
|
1 |
superseded
|
| 30 |
4301736 |
TUBING OIL RESERVOIR TO OIL PUMP (5-1/4")
|
1 |
superseded
|
| 31 |
43300A9 |
CAP ASSEMBLY OIL RESERVOIR
|
1 |
|
| 32 |
43307 |
GASKET RESERVOIR CAP
|
1 |
superseded
|
| 33 |
99022A1 |
FLOAT ASSEMBLY
|
1 |
superseded
|
| 34 |
99265 |
PUSH NUT
|
1 |
|
| 35 |
415824 |
CLAMP OIL HOSE (SMALL)
|
2 |
disc.
|
| 36 |
415823 |
CLAMP OIL HOSE (LARGE)
|
2 |
disc.
|
| 37 |
99127109 |
LINE (57.00 Inches Bulk) OIL
|
1 |
superseded
|
| 38 |
42425 |
TEE OIL TUBING
|
1 |
disc.
|
| 39 |
9072925 |
HOSE OIL (6-3/4")
|
1 |
|
| 4 |
38833 |
WASHER WARNING MODULE SCREW
|
3 |
|
| 40 |
99127109 |
LINE (57.00 Inches Bulk)
|
1 |
superseded
|
| 41 |
814103 |
BEARING
|
1 |
superseded
|
| 5 |
69020 |
SCREW (#10-32 x .875) WARNING MODULE TO CYLINDER BLOCK
|
3 |
superseded
|
| 6 |
815699 |
PUMP ASSEMBLY Oil
|
1 |
superseded
|
| 7 |
32228 |
SCREW (#10-32 x .625) OIL PUMP TO CRANKCASE
|
1 |
|
| 7 |
41507 |
SCREW (#10-32 x 1.120)
|
1 |
|
| 8 |
193855 |
LINK ASSEMBLY THROTTLE LEVER TO OIL PUMP
|
1 |
disc.
|
| 9 |
41429A2 |
BEARING ASSEMBLY DRIVE GEAR
|
1 |
|
