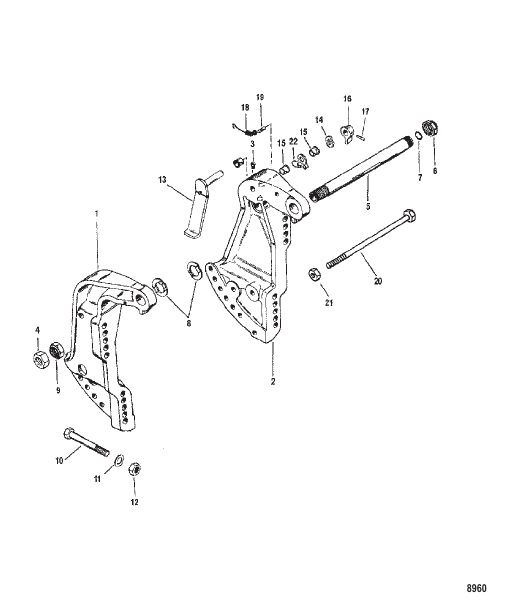

| # | Part Number | Description | Qty | Status |
|---|
| - |
89221A88 |
GASKET SET
|
1 |
disc.
|
| 1 |
8718A1 |
BRACKET ASSEMBLY Transom (STARBOARD)(BLACK)
|
1 |
superseded
|
| 1 |
8718A2 |
BRACKET ASSEMBLY Transom (STARBOARD)(GRAY)
|
1 |
superseded
|
| 10 |
677551 |
SCREW (.500-20 x 4.500) TRANSOM BRACKET TO TRANSOM
|
4 |
superseded
|
| 11 |
28421 |
WASHER (1.5 x 3.05 x 0.13) Stainless Steel TRANSOM BRACKET BOLT
|
4 |
superseded
|
| 12 |
8M0027784 |
NUT TRANSOM BRACKET BOLT
|
4 |
superseded
|
| 13 |
99629A2 |
LEVER ASSEMBLY TILT LOCK
|
1 |
superseded
|
| 14 |
99611 |
WAVE WASHER TILT LEVER
|
1 |
|
| 15 |
65830 |
NYLINER TILT LEVER
|
2 |
|
| 16 |
99633 |
KNOB TILT LOCK LEVER (BLACK)
|
1 |
|
| 16 |
99633T6 |
KNOB TILT LEVER (GRAY)
|
1 |
superseded
|
| 17 |
99615 |
PIN Groove
|
1 |
|
| 18 |
99622 |
SPRING
|
1 |
|
| 19 |
99604 |
PIN Groove
|
1 |
|
| 2 |
8716A5 |
BRACKET ASSEMBLY Transom (PORT)(BLACK)
|
1 |
superseded
|
| 2 |
8716A6 |
BRACKET ASSEMBLY Transom (PORT)(GRAY)
|
1 |
superseded
|
| 20 |
96930A1 |
BOLT ASSEMBLY TILT LOCK
|
1 |
|
| 21 |
23161 |
NUT (.375-24) BOLT
|
1 |
|
| 22 |
814207 |
STOP TILT LEVER
|
1 |
disc.
|
| 3 |
98727 |
FITTING Grease PORT TRANSOM BRACKET
|
1 |
superseded
|
| 4 |
37984 |
NUT (.875-14)
|
1 |
superseded
|
| 5 |
99170A1 |
TILT TUBE
|
1 |
superseded
|
| 6 |
90068T |
NUT TILT TUBE (1"-14) (BLACK)
|
1 |
superseded
|
| 6 |
90068T6 |
NUT TILT TUBE (1"-14) (GRAY)
|
1 |
superseded
|
| 7 |
45711 |
O-RING (.612 x .103) TILT TUBE
|
1 |
|
| 8 |
88750 |
WASHER Wave (1.62 x 1.05) TILT TUBE
|
2 |
|
| 9 |
56041 |
NUT (.875-14) TILT TUBE
|
1 |
superseded
|
