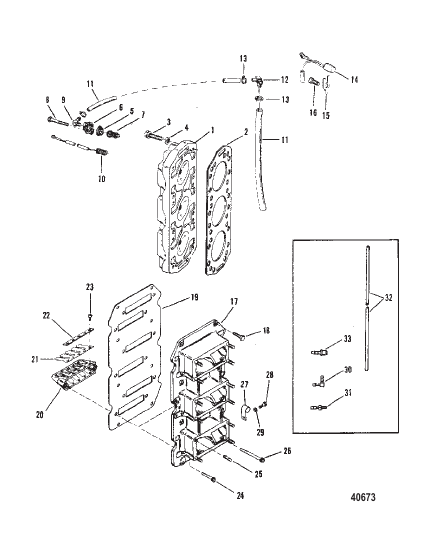

| # | Part Number | Description | Qty | Status |
|---|
| - |
89221A88 |
GASKET SET
|
1 |
disc.
|
| 1 |
15221A2 |
CYLINDER HEAD ASSEMBLY
|
2 |
superseded
|
| 10 |
97465 |
SENDER Temperature
|
1 |
|
| 11 |
7765377 |
HOSE (24.500 Inches Bulk) WATER DISTRIBUTION
|
2 |
superseded
|
| 12 |
68728 |
FITTING THERMOSTAT COVER TO WATER HOSES
|
1 |
disc.
|
| 13 |
90077 |
TIE STRAP WATER HOSES
|
4 |
superseded
|
| 14 |
13536A7 |
SENSOR ASSEMBLY Temperature
|
1 |
|
| 15 |
13715 |
RETAINER SENSOR AND SENDER
|
2 |
superseded
|
| 16 |
98257 |
SCREW (.312-18 x .500) RETAINER
|
2 |
|
| 17 |
43517T |
HOUSING REED BLOCK
|
1 |
disc.
|
| 18 |
28668 |
SCREW (.250-20 x .875) Stainless Steel REED BLOCK HOUSING
|
8 |
|
| 19 |
967611 |
GASKET REED BLOCK HOUSING
|
1 |
|
| 2 |
41246 |
GASKET CYLINDER HEAD
|
2 |
superseded
|
| 20 |
75953 |
REED BLOCK
|
6 |
|
| 21 |
75362A1 |
REED ASSEMBLY
|
6 |
disc.
|
| 22 |
96183 |
CLAMP Reed
|
12 |
superseded
|
| 23 |
14783 |
SCREW (#8-32 x .187) REEDS TO REED BLOCK
|
60 |
superseded
|
| 24 |
21558 |
SCREW (.250-20 x .75) REED BLOCK ATTACHING
|
6 |
superseded
|
| 25 |
27037 |
STUD (.250-28 x 1.125) CARBURETOR MOUNTING
|
12 |
superseded
|
| 26 |
96529 |
SCREW (.250-20 x 2.00) REED BLOCK ATTACHING
|
6 |
disc.
|
| 27 |
23567 |
CLIP
|
1 |
|
| 28 |
69079 |
SCREW (#10-16 x .440)
|
1 |
|
| 29 |
69205 |
C WASHER
|
1 |
superseded
|
| 3 |
98534 |
SCREW (.375-16 x 2.30) CYLINDER HEAD
|
24 |
disc.
|
| 30 |
15133 |
FITTING BLEED HOSE (PRESS IN)
|
6 |
|
| 31 |
56759 |
FITTING Barbed BLEED HOSE (PRESS IN)
|
4 |
|
| 32 |
99130122 |
TUBING (20.00 Feet Bulk) BLEED
|
1 |
superseded
|
| 33 |
42623 |
CHECK VALVE BLEED HOSE (PRESS-IN - 11/16" LONG)
|
1 |
superseded
|
| 33 |
42698 |
CHECK VALVE BLEED HOSE (PRESS-IN - 13/16" LONG)
|
7 |
superseded
|
| 4 |
25909 |
WASHER (.406 x .812 x .065) CYLINDER HEAD SCREW
|
24 |
|
| 5 |
62386 |
GASKET THERMOSTAT
|
2 |
superseded
|
| 6 |
90390A1 |
COVER KIT THERMOSTAT
|
2 |
|
| 7 |
75692 |
THERMOSTAT
|
2 |
|
| 8 |
35386 |
SCREW (.312-18 x 1.00) THERMOSTAT COVER
|
4 |
|
| 9 |
68727 |
FITTING (.250-18) 90 Degree - Brass ELBOW - WATER HOSES
|
1 |
superseded
|
