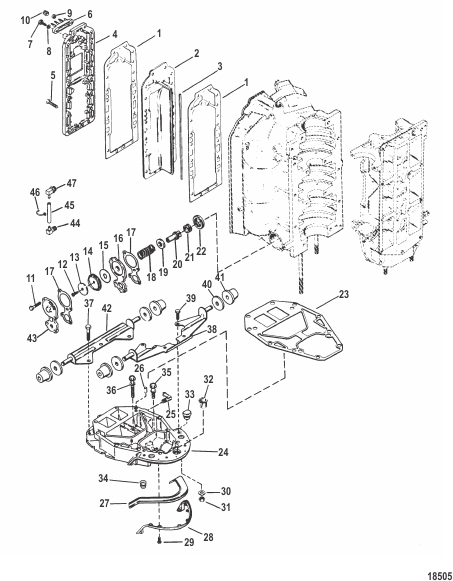

EXHAUST MANIFOLD AND EXHAUST PLATE
Parts (49)
| # | Part Number | Description | Qty | Status |
|---|---|---|---|---|
| - | 89221A88 |
КОМПЛЕКТ ПРОКЛАДОК GASKET SET |
1 | discontinued |
| 1 | 904841 |
ПРОКЛАДКА DIVIDER PLATE GASKET DIVIDER PLATE |
2 | |
| 10 | 813938 |
НАКИДНАЯ ГАЙКА (№10-32) CAP NUT (#10-32) |
3 | |
| 11 | 74824 |
ВИНТ (0.312-18 x 1.250) COVER TO CYLINDER BLOCK SCREW (.312-18 x 1.250) COVER TO CYLINDER BLOCK |
4 | |
| 12 | 69570 |
ВИНТ (№10-16 x 0.750) DIAPHRAGM TO PLATE SCREW (#10-16 x .750) DIAPHRAGM TO PLATE |
1 | |
| 13 | 76451 |
ШАЙБА DIAPHRAGM SCREW WASHER DIAPHRAGM SCREW |
1 | |
| 14 | 14479 |
ДИАФРАГМА DIAPHRAGM |
1 | superseded |
| 15 | 16496 |
ОТРАЖАТЕЛЬ Вода DEFLECTOR Water |
1 | |
| 16 | 16497A1 |
ПЛАСТИНА RELIEF VALVE PLATE RELIEF VALVE |
1 | |
| 17 | 78690 |
ПРОКЛАДКА RELIEF VALVE PLATE GASKET RELIEF VALVE PLATE |
2 | superseded |
| 18 | 64878 |
ПРУЖИНА (черный) COMPRESSION POPPET VALVE SPRING (Black) COMPRESSION POPPET VALVE |
1 | |
| 19 | 85303 |
ШАЙБА POPPET SPRING WASHER POPPET SPRING |
1 | |
| 2 | 99169A1 |
ПЛАСТИНА DIVIDER PLATE DIVIDER |
1 | discontinued |
| 20 | 14480 |
ТАРЕЛЬЧАТЫЙ КЛАПАН VALVE POPPET VALVE |
1 | |
| 21 | 64872 |
УПЛОТНИТЕЛЬНОЕ КОЛЬЦО POPPET VALVE GROMMET POPPET VALVE |
1 | |
| 22 | 65848 |
КОРПУС POPPET VALVE CARRIER POPPET VALVE |
1 | |
| 23 | 991762 |
ПРОКЛАДКА EXHAUST PLATE GASKET EXHAUST PLATE |
1 | superseded |
| 24 | 41944A5 |
ПЛАСТИНА В СБОРЕ EXHAUST PLATE ASSEMBLY EXHAUST |
1 | discontinued |
| 25 | 99664 |
КОЛЕНЧАТЫЙ EXHAUST PLATE ELBOW EXHAUST PLATE |
1 | superseded |
| 26 | 20033 |
ШТИФТ Штифт LOCATING - EXHAUST PLATE PIN Dowel LOCATING - EXHAUST PLATE |
2 | superseded |
| 27 | 183982 |
УПЛОТНЕНИЕ EXHAUST PLATE SEAL EXHAUST PLATE |
1 | superseded |
| 28 | 680101 |
КРОНШТЕЙН SEAL RETAINING BRACKET SEAL RETAINING |
1 | |
| 29 | 812832 |
ВИНТ (№10-16 x 0.500) BRACKET TO EXHAUST PLATE SCREW (#10-16 x .500) BRACKET TO EXHAUST PLATE |
6 | superseded |
| 3 | 69668 |
УПЛОТНЕНИЕ DIVIDER PLATE SEAL DIVIDER PLATE |
1 | superseded |
| 30 | 25970 |
ШАЙБА POWERHEAD STUD WASHER POWERHEAD STUD |
6 | superseded |
| 31 | 69254 |
ГАЙКА POWERHEAD STUD NUT POWERHEAD STUD |
6 | |
| 32 | 27132 |
ВТУЛКА EXHAUST PLATE BUSHING EXHAUST PLATE |
1 | |
| 33 | 19564 |
УПЛОТНИТЕЛЬНОЕ КОЛЬЦО GROMMET |
1 | superseded |
| 34 | 12602 |
УПЛОТНИТЕЛЬНОЕ КОЛЬЦО EXHAUST PLATE GROMMET EXHAUST PLATE |
1 | superseded |
| 35 | 66727 |
ВИНТ (0.312-18 x 1.250) EXHAUST PLATE ATTACHING SCREW (.312-18 x 1.250) EXHAUST PLATE ATTACHING |
1 | |
| 36 | 68783 |
ВИНТ (0.312-18 x 2.50) EXHAUST PLATE ATTACHING SCREW (.312-18 x 2.50) EXHAUST PLATE ATTACHING |
1 | |
| 37 | 66725 |
ВИНТ (0.375-16 x 3.50) EXHAUST PLATE ATTACHING SCREW (.375-16 x 3.50) EXHAUST PLATE ATTACHING |
3 | superseded |
| 38 | 812905A2 |
КРОНШТЕЙН В СБОРЕ FRONT BRACKET ASSEMBLY FRONT |
1 | superseded |
| 39 | 90285 |
ВИНТ (0.312-18 x 0.625) FRONT BRACKET SCREW (.312-18 x .625) FRONT BRACKET |
4 | |
| 4 | 193071 |
КРЫШКА EXHAUST MAINFOLD COVER EXHAUST MAINFOLD |
1 | discontinued |
| 40 | 187031 |
ШАЙБА WASHER |
4 | |
| 41 | 18778 |
УПЛОТНИТЕЛЬНОЕ КОЛЬЦО GROMMET |
4 | superseded |
| 42 | 18578A3 |
КРОНШТЕЙН В СБОРЕ Задний BRACKET ASSEMBLY Rear |
4 | superseded |
| 43 | 14462A1 |
КРЫШКА RELIEF VALVE (OLD DESIGN) COVER RELIEF VALVE (OLD DESIGN) |
1 | discontinued |
| 43 | 68729 |
КРЫШКА RELIEF VALVE (NEW DESIGN) COVER RELIEF VALVE (NEW DESIGN) |
1 | superseded |
| 44 | 92007 |
ФИТИНГ (.250-18) (90 DEG.) (NEW DESIGN) FITTING (.250-18) (90 DEG.) (NEW DESIGN) |
1 | superseded |
| 45 | 99127109 |
ТРУБОПРОВОД (Общая длина 57.00") (NEW DESIGN) LINE (57.00 Inches Bulk) (NEW DESIGN) |
1 | superseded |
| 46 | 90077 |
ЛЕНТОЧНЫЙ ХОМУТ (NEW DESIGN) TIE STRAP (NEW DESIGN) |
2 | superseded |
| 47 | 814430 |
ФИТИНГ (0.500-14) (NEW DESIGN) FITTING (.500-14) (NEW DESIGN) |
1 | superseded |
| 5 | 74824 |
ВИНТ (0.312-18 x 1.250) SCREW (.312-18 x 1.250) |
21 | |
| 6 | 194373 |
КЛЕММНАЯ КОЛОДКА (3 TERMINALS) TERMINAL BLOCK (3 TERMINALS) |
1 | discontinued |
| 7 | 31716 |
ВИНТ (0.250-20 x 0.620) TERMINAL BLOCK SCREW (.250-20 x .620) TERMINAL BLOCK |
2 | discontinued |
| 8 | 29245 |
ШАЙБА (0.281 x 0.500 x 0.060), нержавеющая сталь TERMINAL BLOCK SCREW WASHER (.281 x .500 x .060) Stainless Steel TERMINAL BLOCK SCREW |
2 | superseded |
| 9 | 45076 |
ГАЙКА (№10-32), латунь TERMINAL BLOCK NUT (#10-32) Brass TERMINAL BLOCK |
3 |
