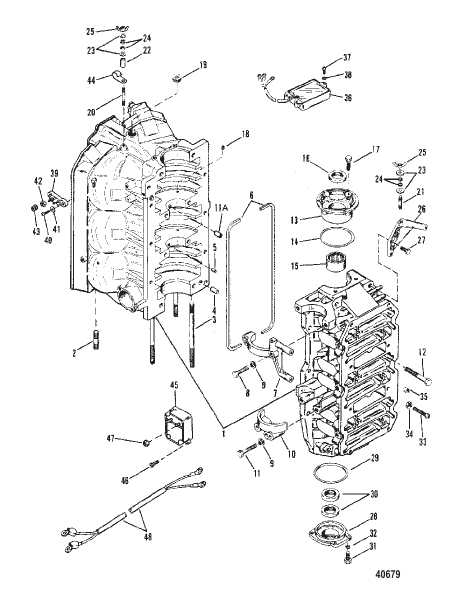

| # | Part Number | Description | Qty | Status |
|---|
| - |
813043A89 |
POWERHEAD ASSEMBLY COMPLETE
|
1 |
superseded
|
| - |
89221A88 |
GASKET SET
|
1 |
disc.
|
| 1 |
8712A42 |
CYLINDER BLOCK
|
1 |
superseded
|
| 10 |
76867 |
COVER STARTER MOTOR (LOWER)
|
1 |
|
| 11 |
77065 |
SCREW (.312-18 x 2) COVER TO CRANKCASE
|
2 |
superseded
|
| 11A |
99448 |
BUSHING
|
1 |
|
| 12 |
66717 |
SCREW (.375-16 x 3.250) CRANKCASE TO CYLINDER BLOCK
|
8 |
|
| 12 |
74824 |
SCREW (.312-18 x 1.250) CRANKCASE TO CYLINDER BLOCK
|
6 |
|
| 13 |
9608A1 |
END CAP ASSEMBLY UPPER
|
1 |
superseded
|
| 14 |
54029 |
O-RING (2.800 x .103) END CAP
|
1 |
|
| 15 |
93496 |
BEARING Roller END CAP
|
1 |
superseded
|
| 16 |
41953 |
SEAL END CAP
|
1 |
|
| 17 |
69034 |
SCREW AND LOCKWASHER (.312-18 x 1.00) UPPER END CAP TO CYLINDER BLOCK
|
4 |
superseded
|
| 18 |
24220 |
SCREW (.190-24 x .190) SET - CYLINDER BLOCK (OLD DESIGN)
|
2 |
disc.
|
| 19 |
38407 |
PLUG (.500-14) CYLINDER BLOCK (WATER JACKET) (OLD DESIGN)
|
1 |
|
| 2 |
76175 |
STUD POWERHEAD (1-7/8")
|
6 |
|
| 20 |
15094 |
STUD (.190-32 x 1.870) FLYWHEEL COVER TO CYLINDER BLOCK
|
1 |
disc.
|
| 21 |
15093 |
STUD (#10-32 x 1.00) FLYWHEEL COVER TO BRACKET
|
2 |
superseded
|
| 22 |
67269 |
SPACER FLYWHEEL COVER STUD
|
1 |
|
| 23 |
492211 |
WASHER FLYWHEEL COVER STUD
|
6 |
superseded
|
| 24 |
72761 |
WASHER (.203 x .562 x .060) Stainless Steel FLYWHEEL COVER STUD
|
3 |
|
| 25 |
73651 |
NUT FLYWHEEL COVER STUD
|
3 |
superseded
|
| 26 |
42248 |
BRACKET FLYWHEEL COVER
|
1 |
superseded
|
| 27 |
49668 |
SCREW (.250-20 x .750) BRACKET TO CRANKCASE
|
2 |
|
| 28 |
7809A1 |
END CAP ASSEMBLY LOWER
|
1 |
superseded
|
| 29 |
62700 |
O-RING (3.237 x .103) END CAP
|
1 |
|
| 3 |
67065 |
STUD POWERHEAD (5-1/2")
|
2 |
superseded
|
| 3 |
78438 |
STUD POWERHEAD (6-3/4")
|
2 |
superseded
|
| 30 |
41953 |
SEAL END CAP
|
2 |
|
| 31 |
28636 |
SCREW (.250-20 x .750)
|
4 |
|
| 32 |
26992 |
LOCKWASHER (.250) Stainless Steel LOWER END CAP SCREW
|
4 |
|
| 33 |
64022 |
SCREW (.250-20 x 2.125) ADJUSTING - CYLINDER BLOCK
|
1 |
|
| 34 |
64015 |
NUT (.250-20) JAM - ADJUSTING SCREW
|
1 |
|
| 35 |
26852 |
CAP Nylon ADJUSTING SCREW
|
1 |
|
| 36 |
93772A2 |
STABILIZER
|
1 |
disc.
|
| 37 |
69020 |
SCREW (#10-32 x .875)
|
3 |
superseded
|
| 38 |
38833 |
WASHER
|
3 |
|
| 39 |
194372 |
TERMINAL BLOCK
|
1 |
disc.
|
| 4 |
20033 |
PIN Dowel LOCATING
|
2 |
superseded
|
| 40 |
48409 |
SCREW (#10-16 x .625) Stainless Steel
|
2 |
|
| 41 |
89302 |
WASHER (.203 x .406 x .040)
|
2 |
|
| 42 |
45076 |
NUT (#10-32) Brass
|
2 |
|
| 43 |
813938 |
CAP NUT (#10-32)
|
2 |
|
| 44 |
63153 |
J CLIP
|
1 |
|
| 45 |
88825A7 |
VOLTAGE REGUALTOR
|
1 |
disc.
|
| 46 |
48409 |
SCREW (#10-16 x .625) Stainless Steel VOLTAGE REGULATOR
|
2 |
|
| 47 |
45076 |
NUT (#10-32) Brass VOLTAGE REGULATOR
|
2 |
|
| 48 |
13397A1 |
HARNESS ASSEMBLY
|
1 |
disc.
|
| 5 |
67296 |
PIN CYLINDER BLOCK (BEARING RACE)
|
2 |
superseded
|
| 6 |
11338 |
GASKET SEALING
|
2 |
|
| 7 |
42249 |
COVER STARTER MOTOR (UPPER)
|
1 |
superseded
|
| 8 |
73657 |
SCREW (.312-18 x 1.50) COVER TO CRANKCASE
|
2 |
|
| 9 |
26993 |
LOCKWASHER (.312) STARTER MOTOR COVER SCREW
|
4 |
superseded
|
