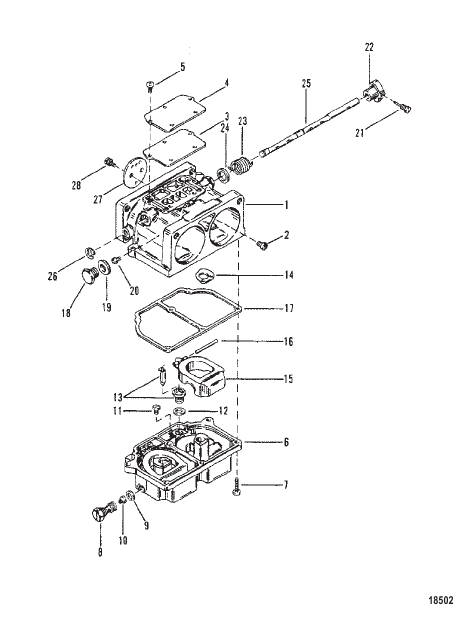

CARBURETOR ASSEMBLY
Parts (34)
| # | Part Number | Description | Qty | Status |
|---|---|---|---|---|
| - | 6452 |
КОМПЛЕКТ ПРОКЛАДОК CARBURETOR GASKET KIT CARBURETOR |
1 | |
| - | 7826 |
РЕМОНТНЫЙ КОМПЛЕКТ CARBURETOR REPAIR KIT CARBURETOR |
1 | |
| 1 | 9242A42 |
КАРБЮРАТОР (TOP) CARBURETOR (TOP) |
1 | superseded |
| 1 | 9242A43 |
КАРБЮРАТОР (CENTER) CARBURETOR (CENTER) |
1 | superseded |
| 1 | 9242A44 |
КАРБЮРАТОР (BOTTOM) CARBURETOR (BOTTOM) |
1 | superseded |
| 10 | 6201 |
ВОДОМЕТНЫЙ (0.080) MAIN FUEL JET (.080) MAIN FUEL |
4 | |
| 10 | 3518 |
ВОДОМЕТНЫЙ (0.082) MAIN FUEL JET (.082) MAIN FUEL |
2 | |
| 11 | NSS |
НЕ ПРОДАЕТСЯ ОТДЕЛЬНО SCREWM FLOAT PIN NOT SOLD SEPARATE SCREWM FLOAT PIN |
6 | |
| 12 | NSS |
НЕ ПРОДАЕТСЯ ОТДЕЛЬНО GASKET, INLET NEEDLE AND SEAT NOT SOLD SEPARATE GASKET, INLET NEEDLE AND SEAT |
6 | |
| 13 | 7824 |
ИГЛА/СЕДЛО В СБОРЕ Впуск NEEDLE/SEAT ASSEMBLY Inlet |
6 | |
| 14 | NSS |
НЕ ПРОДАЕТСЯ ОТДЕЛЬНО GASKET, NOZZLE BOSS NOT SOLD SEPARATE GASKET, NOZZLE BOSS |
6 | |
| 15 | 9267 |
ПОПЛАВОК FLOAT |
6 | discontinued |
| 16 | NSS |
НЕ ПРОДАЕТСЯ ОТДЕЛЬНО PIN, FLOAT LEVER NOT SOLD SEPARATE PIN, FLOAT LEVER |
6 | |
| 17 | NSS |
НЕ ПРОДАЕТСЯ ОТДЕЛЬНО GASKET, FUEL BOWL NOT SOLD SEPARATE GASKET, FUEL BOWL |
3 | |
| 18 | 4541 |
ВИНТ IDLE AIR BLEED JET SCREW IDLE AIR BLEED JET |
6 | |
| 19 | NSS |
НЕ ПРОДАЕТСЯ ОТДЕЛЬНО GASKET, BLEED JET PLUG NOT SOLD SEPARATE GASKET, BLEED JET PLUG |
6 | |
| 2 | 6249 |
ВОДОМЕТНЫЙ Главн. (0.096) JET Main (.096) |
4 | |
| 20 | 5213 |
ВОДОМЕТНЫЙ Главн. (0.056) IDLE AIR BLEED (.056) JET Main (.056) IDLE AIR BLEED (.056) |
6 | |
| 21 | 6027 |
ВИНТ THROTTLE LEVER SCREW THROTTLE LEVER |
3 | discontinued |
| 22 | 87607 |
РЫЧАГ Дроссельная заслонка LEVER Throttle |
3 | discontinued |
| 23 | NSS |
НЕ ПРОДАЕТСЯ ОТДЕЛЬНО SPRING, THROTTLE RETURN NOT SOLD SEPARATE SPRING, THROTTLE RETURN |
3 | |
| 24 | 6031 |
ПРОСТАВКА THROTTLE LEVER SPACER THROTTLE LEVER |
3 | discontinued |
| 25 | 6022 |
ВАЛ THROTTLE SHAFT THROTTLE |
3 | discontinued |
| 26 | NSS |
НЕ ПРОДАЕТСЯ ОТДЕЛЬНО RING, RETAINER - THROTTLE SHAFT NOT SOLD SEPARATE RING, RETAINER - THROTTLE SHAFT |
3 | |
| 27 | 9416 |
КЛАПАН Дроссельная заслонка VALVE Throttle |
6 | discontinued |
| 28 | NSS |
НЕ ПРОДАЕТСЯ ОТДЕЛЬНО SCREW, THROTTLE VALVE NOT SOLD SEPARATE SCREW, THROTTLE VALVE |
12 | |
| 3 | NSS |
НЕ ПРОДАЕТСЯ ОТДЕЛЬНО GASKET, COVER PLATE NOT SOLD SEPARATE GASKET, COVER PLATE |
3 | |
| 4 | 6032 |
ПЛАСТИНА COVER PLATE COVER |
3 | discontinued |
| 5 | 9597 |
ВИНТ COVER PLATE SCREW COVER PLATE |
15 | discontinued |
| 6 | 7823 |
КАМЕРА Топливо (TOP) BOWL Fuel (TOP) |
1 | discontinued |
| 6 | 7822 |
КАМЕРА Топливо (CENTER/BOTTOM) BOWL Fuel (CENTER/BOTTOM) |
2 | discontinued |
| 7 | NSS |
НЕ ПРОДАЕТСЯ ОТДЕЛЬНО SCREW, FUEL BOWL NOT SOLD SEPARATE SCREW, FUEL BOWL |
18 | |
| 8 | 6025 |
ПРОБКА MAIN JET PLUG MAIN JET |
6 | |
| 9 | NSS |
НЕ ПРОДАЕТСЯ ОТДЕЛЬНО GASKET, MAIN JET NOT SOLD SEPARATE GASKET, MAIN JET |
6 |
