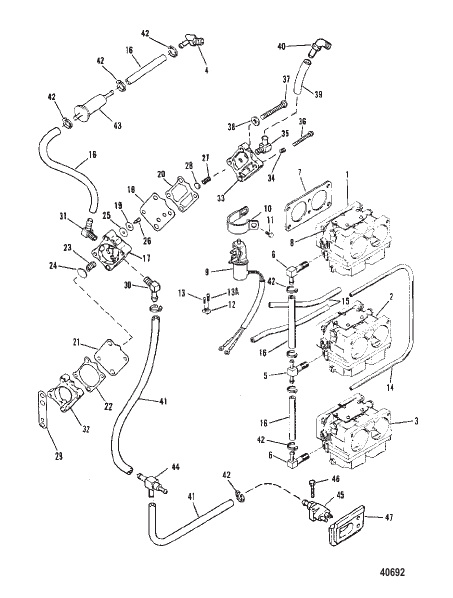

| # | Part Number | Description | Qty | Status |
|---|
| 1 |
9242A42 |
CARBURETOR (TOP)
|
1 |
superseded
|
| 10 |
633001 |
CLAMP ENRICHENER VALVE
|
1 |
disc.
|
| 11 |
73286 |
SCREW (.250-20 x .500) Stainless Steel VALVE CLAMP
|
1 |
|
| 12 |
45915 |
TERMINAL BLOCK REED BLOCK HOUSING
|
3 |
|
| 13 |
35519 |
SCREW (#10-16 x .500) TERMINAL BLOCK
|
2 |
disc.
|
| 13 |
38055 |
SCREW (.190-32 x .620) TERMINAL BLOCK
|
1 |
disc.
|
| 13A |
62568 |
SCREW (#10-16 x .375)
|
2 |
|
| 14 |
99130122 |
TUBING (20.00 Feet Bulk) TOP CARBURETOR TO VALVE
|
1 |
superseded
|
| 15 |
9912688 |
TUBING (36.00 Inches Bulk) CARBURETOR (4-1/4")
|
2 |
|
| 16 |
99127109 |
LINE (57.00 Inches Bulk)
|
4 |
superseded
|
| 17 |
15930A15 |
PUMP KIT Fuel
|
1 |
|
| 18 |
42990A6 |
DIAPHRAGM KIT
|
1 |
superseded
|
| 19 |
NSS |
NOT SOLD SEPARATE CHECK VALVE, RUBBER
|
2 |
|
| 2 |
9242A43 |
CARBURETOR (CENTER)
|
1 |
superseded
|
| 20 |
NSS |
NOT SOLD SEPARATE GASKET, BOOST
|
1 |
|
| 21 |
NSS |
NOT SOLD SEPARATE DIAPHRAGM
|
2 |
|
| 22 |
NSS |
NOT SOLD SEPARATE GASKET, PULSE
|
1 |
|
| 23 |
NSS |
NOT SOLD SEPARATE SPRING
|
1 |
|
| 24 |
NSS |
NOT SOLD SEPARATE CAP
|
1 |
|
| 25 |
NSS |
NOT SOLD SEPARATE CHECK VALVE
|
2 |
|
| 26 |
NSS |
NOT SOLD SEPARATE RETAINER
|
2 |
|
| 27 |
NSS |
NOT SOLD SEPARATE SPRING
|
1 |
|
| 28 |
NSS |
NOT SOLD SEPARATE CAP
|
1 |
|
| 29 |
987691 |
GASKET BASE
|
1 |
superseded
|
| 3 |
9242A44 |
CARBURETOR (BOTTOM)
|
1 |
superseded
|
| 30 |
14868 |
FITTING FUEL PUMP (ELBOW)
|
1 |
|
| 31 |
19688 |
FITTING FUEL PUMP (ELBOW)
|
1 |
disc.
|
| 32 |
144303 |
BASE FUEL PUMP
|
1 |
|
| 33 |
98775A3 |
PLATE FUEL PUMP
|
1 |
superseded
|
| 34 |
56800 |
PLUG Pipe (.0625-27)
|
1 |
|
| 35 |
15979 |
FITTING
|
1 |
disc.
|
| 36 |
16452 |
SCREW (#12-24 x 2.00) FULE PUMP
|
2 |
|
| 37 |
4000310 |
SCREW (M5 x 40) FUEL PUMP TO CRANKCASE
|
2 |
disc.
|
| 38 |
4002314 |
WASHER FUEL PUMP SCREW
|
2 |
|
| 39 |
9072925 |
HOSE PULSE
|
1 |
|
| 4 |
70007 |
FITTING 45 Degree FUEL INLET (MIDDLE)
|
1 |
|
| 40 |
99751 |
FITTING (.0625-27) Brass PULSE HOSE (90 DEG.)
|
1 |
superseded
|
| 41 |
9912976 |
TUBING TO CENTER CARBURETOR
|
2 |
superseded
|
| 42 |
90077 |
TIE STRAP FUEL TUBING
|
AR |
superseded
|
| 43 |
16494 |
FILTER Fuel
|
1 |
superseded
|
| 44 |
424251 |
TEE
|
1 |
superseded
|
| 45 |
15781A1 |
CONNECTOR Fuel
|
1 |
superseded
|
| 46 |
69067 |
SCREW (.250-20 x 1.375) FUEL CONNECTOR
|
1 |
|
| 47 |
812782 |
SEAL
|
1 |
disc.
|
| 5 |
7900 |
TEE FITTING FUEL INLET (MIDDLE)
|
1 |
disc.
|
| 6 |
7901 |
ELBOW FUEL INLET-UPPER AND LOWER
|
2 |
|
| 7 |
677511 |
GASKET CARBURETOR
|
3 |
|
| 8 |
20184 |
NUT (1/4-28X7/32) CARBURETOR MOUNTING
|
12 |
superseded
|
| 9 |
42859A2 |
VALVE ASSEMBLY Enrichner
|
1 |
|
