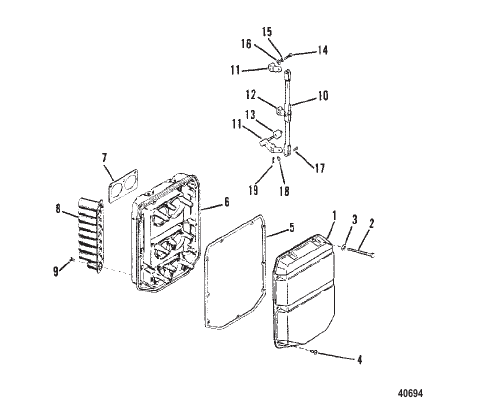

CHOKE PLATE AND THROTTLE LEVERS (S/N-C239552 AND BELOW)
Parts (20)
| # | Part Number | Description | Qty | Status |
|---|---|---|---|---|
| - | 89221A88 |
КОМПЛЕКТ ПРОКЛАДОК GASKET SET |
discontinued | |
| 1 | 18734 |
КРЫШКА SOUND ATTENUATOR COVER SOUND ATTENUATOR |
1 | discontinued |
| 10 | 87604 |
СОЕДИНИТЕЛЬ Дроссельная заслонка LINK Throttle |
1 | discontinued |
| 11 | 93332A1 |
РЫЧАГ В СБОРЕ Дроссельная заслонка LEVER ASSEMBLY Throttle |
1 | superseded |
| 12 | 41048 |
РЫЧАГ Дроссельная заслонка LEVER Throttle |
1 | superseded |
| 13 | 67748 |
РОЛИК LOWER THROTTLE LEVER ROLLER LOWER THROTTLE LEVER |
1 | |
| 14 | 15124 |
ВИНТ (№10-32 x 0.750) SCREW (#10-32 x .750) |
3 | |
| 15 | 26996 |
СТОПОРНАЯ ШАЙБА (№10), нержавеющая сталь THROTTLE LEVERS SCREW LOCKWASHER (#10) Stainless Steel THROTTLE LEVERS SCREW |
3 | |
| 16 | 56681 |
ШАЙБА (0.203 x 0.500 x 0.032) THROTTLE LEVERS SCREW WASHER (.203 x .500 x .032) THROTTLE LEVERS SCREW |
3 | superseded |
| 17 | 67297 |
ШТИФТ Вилка THROTTLE LEVERS TO THROTTLE LINK PIN Clevis THROTTLE LEVERS TO THROTTLE LINK |
3 | |
| 18 | 89302 |
ШАЙБА (0.203 x 0.406 x 0.040) CLEVIS PIN WASHER (.203 x .406 x .040) CLEVIS PIN |
3 | |
| 19 | 26953 |
ШПЛИНТ CLEVIS PIN COTTER PIN CLEVIS PIN |
3 | |
| 2 | 68000 |
ВИНТ (0.250-28 x 1.00) SOUND ATTENUATOR SCREW (.250-28 x 1.00) SOUND ATTENUATOR |
6 | discontinued |
| 3 | 20583 |
ШАЙБА SOUND ATTENUATOR SCREW WASHER SOUND ATTENUATOR SCREW |
6 | |
| 4 | 48408 |
ВИНТ (№10-16 x 0.500) COVER TO SOUND ATTENUATOR SCREW (#10-16 x .500) COVER TO SOUND ATTENUATOR |
9 | |
| 5 | 877361 |
ПРОКЛАДКА COVER GASKET COVER |
1 | |
| 6 | 194261 |
ПЛАСТИНА SOUND ATTENUATOR PLATE SOUND ATTENUATOR |
1 | discontinued |
| 7 | 892211 |
ПРОКЛАДКА SOUND ATTENUATOR TO CARBURETOR GASKET SOUND ATTENUATOR TO CARBURETOR |
3 | |
| 8 | 43440T |
ВПУСК SOUND ATTENUATOR INLET SOUND ATTENUATOR |
2 | discontinued |
| 9 | 48408 |
ВИНТ (№10-16 x 0.500) INLET TO SOUND ATTENUATOR SCREW (#10-16 x .500) INLET TO SOUND ATTENUATOR |
12 |
