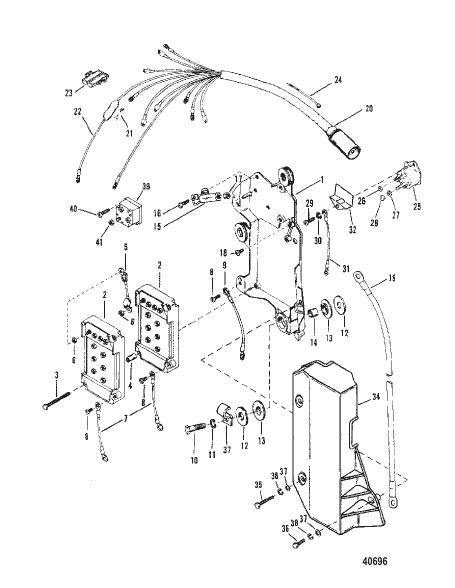

| # | Part Number | Description | Qty | Status |
|---|
| 1 |
434291 |
IGNITION PLATE
|
1 |
superseded
|
| 10 |
69092 |
SCREW (1.25)
|
3 |
superseded
|
| 11 |
26993 |
LOCKWASHER (.312)
|
3 |
superseded
|
| 12 |
36042 |
WASHER
|
6 |
|
| 13 |
67264 |
WASHER (Rubber)
|
6 |
|
| 14 |
67268 |
BUSHING
|
3 |
disc.
|
| 15 |
33386A3 |
SWITCH ASSEMLBY
|
1 |
disc.
|
| 16 |
38055 |
SCREW (.190-32 x .620)
|
1 |
disc.
|
| 17 |
45076 |
NUT (#10-32) Brass
|
1 |
|
| 18 |
87926 |
SCREW (#10-32 x .500)
|
1 |
disc.
|
| 19 |
88439A3 |
CABLE ASSEMBLY Positive - Battery
|
1 |
|
| 19 |
88439A4 |
CABLE ASSEMBLY Battery - Negative
|
1 |
|
| 2 |
7778A9 |
SWITCHBOX ASSEMBLY
|
2 |
superseded
|
| 20 |
96220A12 |
HARNESS ASSEMBLY (USE WITH 18736A15 VOLTAKE REGULATOR
|
1 |
disc.
|
| 20 |
96220A4 |
HARNESS ASSEMBLY (USE WITH 62351A1 RECTIFIER)
|
1 |
|
| 21 |
79091 |
FUSE 20 Ampere
|
1 |
superseded
|
| 22 |
95084A2 |
CABLE ASSEMBLY
|
1 |
|
| 23 |
134731 |
HOLDER Fuse
|
1 |
disc.
|
| 24 |
90077 |
TIE STRAP
|
AR |
superseded
|
| 25 |
15857 |
SOLENOID Starter
|
1 |
superseded
|
| 26 |
45076 |
NUT (#10-32) Brass
|
2 |
|
| 27 |
53166 |
LOCKWASHER (.312)
|
2 |
|
| 28 |
68292 |
NUT (.312-18)
|
2 |
superseded
|
| 29 |
31716 |
SCREW (.250-20 x .620)
|
2 |
disc.
|
| 3 |
13669 |
SCREW (#12-24 x 2.00)
|
2 |
disc.
|
| 30 |
26992 |
LOCKWASHER (.250) Stainless Steel
|
2 |
|
| 31 |
65999A2 |
CABLE ASSEMBLY Black
|
1 |
disc.
|
| 32 |
78866 |
INSULATOR (OLD DESIGN)
|
1 |
disc.
|
| 33 |
47483 |
J CLIP
|
2 |
|
| 34 |
814422T |
COVER [0C239553] & Up
|
1 |
disc.
|
| 35 |
88447 |
SCREW (.190-32 x 1.62) [0C239553] & Up
|
2 |
|
| 36 |
69020 |
SCREW (#10-32 x .875) [0C239553] & Up
|
1 |
superseded
|
| 37 |
89302 |
WASHER (.203 x .406 x .040) [0C239553] & Up
|
3 |
|
| 38 |
26996 |
LOCKWASHER (#10) Stainless Steel [0C239553] & Up
|
3 |
|
| 39 |
62351A1 |
RECTIFIER
|
1 |
superseded
|
| 4 |
94453 |
BUSHING
|
2 |
disc.
|
| 40 |
38055 |
SCREW (.190-32 x .620)
|
2 |
disc.
|
| 41 |
45076 |
NUT (#10-32) Brass
|
3 |
|
| 5 |
62310A2 |
CABLE ASSEMBLY
|
1 |
|
| 6 |
45076 |
NUT (#10-32) Brass
|
20 |
|
| 7 |
60871A10 |
WIRE ASSEMBLY
|
2 |
|
| 8 |
62568 |
SCREW (#10-16 x .375)
|
3 |
|
| 9 |
65999A3 |
CABLE ASSEMBLY Black
|
1 |
disc.
|
