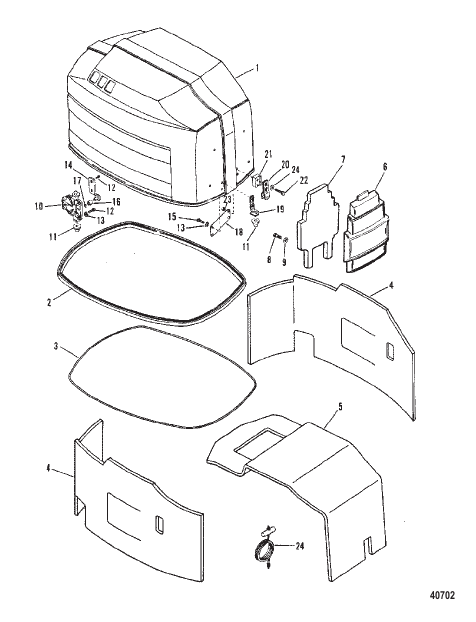

TOP COWL AND FRONT SHIELD
Parts (28)
| # | Part Number | Description | Qty | Status |
|---|---|---|---|---|
| - | 813096A1 |
КОМПЛЕКТ ЗАДНЕЙ ЗАЩЕЛКИ REAR LATCH KIT |
1 | discontinued |
| 1 | 9742A57 |
ВЕРХНИЙ КОЖУХ В СБОРЕ (BLACK) TOP COWL ASSEMBLY (BLACK) |
1 | superseded |
| 1 | 9742A58 |
ВЕРХНИЙ КОЖУХ В СБОРЕ (GRAY) TOP COWL ASSEMBLY (GRAY) |
1 | superseded |
| 10 | 184741 |
КРОНШТЕЙН REAR BRACKET REAR |
2 | discontinued |
| 11 | 18506 |
УПЛОТНИТЕЛЬНОЕ КОЛЬЦО GROMMET |
3 | superseded |
| 12 | 28636 |
ВИНТ (0.250-20 x 0.750) REAR BRACKET SCREW (.250-20 x .750) REAR BRACKET |
12 | |
| 13 | 26992 |
СТОПОРНАЯ ШАЙБА (0.250), нержавеющая сталь REAR BRACKET SCREW LOCKWASHER (.250) Stainless Steel REAR BRACKET SCREW |
10 | |
| 14 | 813096 |
КРЮК HOOK |
2 | superseded |
| 15 | 73286 |
ВИНТ (0.250-20 x 0.500), нержавеющая сталь SCREW (.250-20 x .500) Stainless Steel |
2 | |
| 16 | 813074 |
РОЛИК ROLLER |
2 | superseded |
| 17 | 13194 |
КОЛЬЦО Стопор RING Retaining |
2 | |
| 18 | 813553 |
ПЛАСТИНА PLATE |
1 | discontinued |
| 19 | 187021 |
ФИКСАТОР LOCATOR |
1 | discontinued |
| 2 | 812784 |
УПЛОТНЕНИЕ SEAL |
1 | discontinued |
| 20 | 18173 |
КРОНШТЕЙН В СБОРЕ Роликовая защелка BRACKET ASSEMBLY Latch Roller |
1 | superseded |
| 21 | 813552 |
ПРОСТАВКА SPACER |
1 | discontinued |
| 22 | 31984 |
ВИНТ (0.312-18 x 1.375) SCREW (.312-18 x 1.375) |
2 | |
| 23 | 815848 |
ГАЙКА (0.312) NUT (.312) |
2 | |
| 24 | 70132 |
ШАЙБА (0.323 x 0.563 x 0.063), нержавеющая сталь WASHER (.323 x .563 x .063) Stainless Steel |
2 | superseded |
| 25 | 47341A1 |
КОМПЛЕКТ ТРОСА И РУКОЯТКИ Ручной/аварийный запуск (FOR MANUAL STARTING) ROPE AND HANDLE KIT Manual/Emergency Start (FOR MANUAL STARTING) |
1 | superseded |
| 3 | 815478 |
УПЛОТНЕНИЕ SEAL |
1 | discontinued |
| 4 | 814823 |
ШУМОПОГЛОТИТЕЛЬ (SIDE) SOUND BLANKET (SIDE) |
2 | discontinued |
| 5 | 814837 |
ШУМОПОГЛОТИТЕЛЬ (TOP) SOUND BLANKET (TOP) |
1 | discontinued |
| 6 | 18755A1 |
ПЕРЕДНИЙ ЭКРАН В СБОРЕ (BLACK) FRONT SHIELD ASSEMBLY (BLACK) |
1 | discontinued |
| 6 | 18755A2 |
ПЕРЕДНИЙ ЭКРАН В СБОРЕ (GRAY) FRONT SHIELD ASSEMBLY (GRAY) |
1 | discontinued |
| 7 | 813562 |
УПЛОТНЕНИЕ SEAL |
1 | discontinued |
| 8 | 48409 |
ВИНТ (№10-16 x 0.625), нержавеющая сталь SCREW (#10-16 x .625) Stainless Steel |
4 | |
| 9 | 56681 |
ШАЙБА (0.203 x 0.500 x 0.032) WASHER (.203 x .500 x .032) |
4 | superseded |
