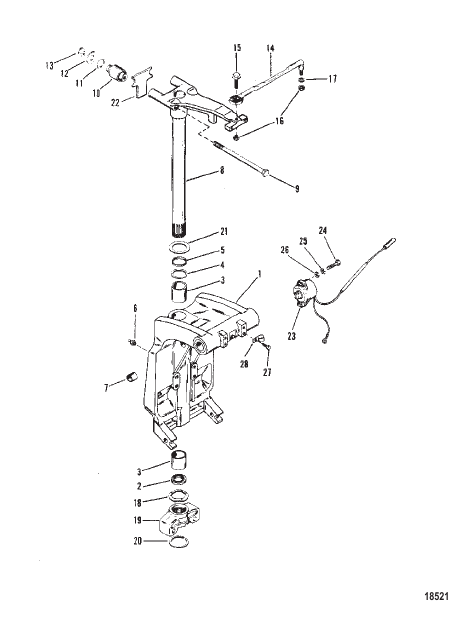

SWIVEL BRACKET AND STEERING ARM
Parts (33)
| # | Part Number | Description | Qty | Status |
|---|---|---|---|---|
| - | 11338A88 |
КОМПЛЕКТ ПРОКЛАДОК Капитальный ремонт двигателя GASKET SET Engine Overhaul |
1 | discontinued |
| 1 | 8710A17 |
ПОВОРОТНЫЙ КРОНШТЕЙН В СБОРЕ (BLACK) SWIVEL BRACKET ASSEMBLY (BLACK) |
1 | superseded |
| 1 | 8710A18 |
ПОВОРОТНЫЙ КРОНШТЕЙН В СБОРЕ (GRAY) SWIVEL BRACKET ASSEMBLY (GRAY) |
1 | superseded |
| 10 | 78687 |
КРЕПЛЕНИЕ RUBBER - UPPER (LONG) MOUNT RUBBER - UPPER (LONG) |
2 | superseded |
| 10 | 77326 |
КРЕПЛЕНИЕ RUBBER - UPPER (X-LONG) MOUNT RUBBER - UPPER (X-LONG) |
2 | |
| 11 | 66921 |
ШАЙБА UPPER MOUNT BOLT WASHER UPPER MOUNT BOLT |
2 | |
| 12 | 78688 |
ШАЙБА UPPER MOUNT BOLT WASHER UPPER MOUNT BOLT |
2 | |
| 13 | 34933 |
ГАЙКА (.437-20), нержавеющая сталь UPPER MOUNT BOLT NUT (.437-20) Stainless Steel UPPER MOUNT BOLT |
2 | superseded |
| 14 | 92876A1 |
СОЕДИНИТЕЛЬ В СБОРЕ Рулевой механизм (MERCURY AND MARINER) LINK ASSEMBLY Steering (MERCURY AND MARINER) |
1 | superseded |
| 15 | 14000 |
ВИНТ (0.375-24 x 1.25) STEERING LINK TO STEERING ARM (MERCURY AND MARINER) SCREW (.375-24 x 1.25) STEERING LINK TO STEERING ARM (MERCURY AND MARINER) |
1 | superseded |
| 16 | 34863 |
ГАЙКА (.375-24) STEERING LINK SCREW (MERCURY AND MARINER) NUT (.375-24) STEERING LINK SCREW (MERCURY AND MARINER) |
2 | superseded |
| 17 | 34931 |
ШАЙБА (0.406 x 0.734 x 0.063), нержавеющая сталь STEERING LINK TO STEERING ARM (MERCURY AND MARINER) WASHER (.406 x .734 x .063) Stainless Steel STEERING LINK TO STEERING ARM (MERCURY AND MARINER) |
2 | |
| 18 | 78854 |
ВОЛНИСТАЯ ШАЙБА BOTTOM YOKE WAVE WASHER BOTTOM YOKE |
1 | |
| 19 | 86580A1 |
ВИЛКА В СБОРЕ Нижняя часть (BLACK) YOKE ASSEMBLY Bottom (BLACK) |
1 | discontinued |
| 19 | 86580A2 |
ВИЛКА В СБОРЕ Нижняя часть (GRAY) YOKE ASSEMBLY Bottom (GRAY) |
1 | superseded |
| 2 | 87735 |
УПЛОТНЕНИЕ Масло SWIVEL BRACKET (LOWER) SEAL Oil SWIVEL BRACKET (LOWER) |
1 | |
| 20 | 67684 |
КОЛЬЦО Стопор BOTTOM YOKE RING Retaining BOTTOM YOKE |
1 | |
| 21 | 67670 |
ШАЙБА THRUST - SWIVEL BRACKET WASHER THRUST - SWIVEL BRACKET |
1 | discontinued |
| 22 | 88882 |
УПОР Верхняя вилка BUMPER Top Yoke |
1 | |
| 23 | 95164A9 |
ДАТЧИК В СБОРЕ Дифферент SENDER ASSEMBLY Trim |
1 | superseded |
| 24 | 56682 |
ВИНТ (№10-24 x 0.750) TRIM SENDER SCREW (#10-24 x .750) TRIM SENDER |
2 | superseded |
| 25 | 26996 |
СТОПОРНАЯ ШАЙБА (№10), нержавеющая сталь TRIM SENDER SCREW LOCKWASHER (#10) Stainless Steel TRIM SENDER SCREW |
2 | |
| 26 | 89302 |
ШАЙБА (0.203 x 0.406 x 0.040) TRIM SENDER SCREW WASHER (.203 x .406 x .040) TRIM SENDER SCREW |
2 | |
| 27 | 64014 |
ВИНТ (0.250-28 x 0.500) SWIVEL BRACKET SCREW (.250-28 x .500) SWIVEL BRACKET |
2 | |
| 28 | 54457 |
J-ЗАЖИМ J CLIP |
1 | |
| 3 | 67669 |
ВТУЛКА SWIVEL BRACKET (LOWER AND UPPER) BUSHING SWIVEL BRACKET (LOWER AND UPPER) |
2 | superseded |
| 4 | 33466 |
УПЛОТНИТЕЛЬНОЕ КОЛЬЦО SWIVEL BRACKET (UPPER) O-RING SWIVEL BRACKET (UPPER) |
1 | |
| 5 | 67668 |
ПРОСТАВКА SWIVEL BRACKET (UPPER) SPACER SWIVEL BRACKET (UPPER) |
1 | discontinued |
| 6 | 74036 |
ФИТИНГ Смазка FITTING Grease |
2 | superseded |
| 7 | 99608 |
ВТУЛКА SWIVEL BRACKET BUSHING SWIVEL BRACKET |
2 | superseded |
| 8 | 67706A30 |
ШАРНИРНЫЙ ПАЛЕЦ В СБОРЕ Черный SWIVEL PIN ASSEMBLY Black |
1 | superseded |
| 8 | 67706A31 |
ШАРНИРНЫЙ ПАЛЕЦ В СБОРЕ Серый SWIVEL PIN ASSEMBLY Gray |
1 | superseded |
| 9 | 78689 |
ВИНТ (0.437-20 x 7.50) STEERING ARM TO UPPER MOUNT SCREW (.437-20 x 7.50) STEERING ARM TO UPPER MOUNT |
2 | superseded |
