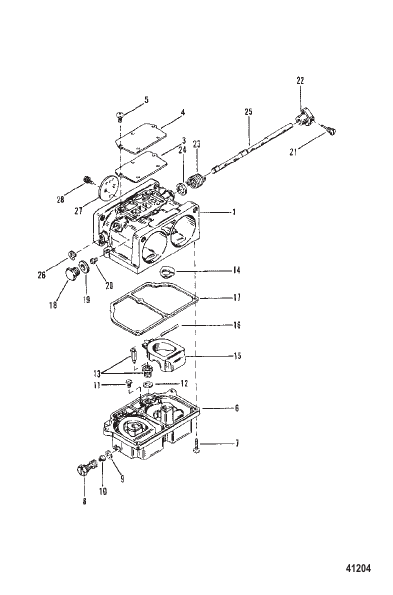

CARBURETOR ASSEMBLY
Parts (33)
| # | Part Number | Description | Qty | Status |
|---|---|---|---|---|
| - | 6452 |
КОМПЛЕКТ ПРОКЛАДОК GASKET KIT |
1 | |
| - | 8506 |
РЕМОНТНЫЙ КОМПЛЕКТ Карбюратор REPAIR KIT Carburetor |
1 | |
| 1 | 9242A10 |
КАРБЮРАТОР (TOP) CARBURETOR (TOP) |
1 | discontinued |
| 1 | 9242A11 |
КАРБЮРАТОР (CENTER) CARBURETOR (CENTER) |
1 | discontinued |
| 1 | 9242A12 |
КАРБЮРАТОР (BOTTOM) CARBURETOR (BOTTOM) |
1 | discontinued |
| 10 | 4216 |
ВОДОМЕТНЫЙ (0.064) MAIN FUEL JET (.064) MAIN FUEL |
4 | |
| 10 | 4215 |
ВОДОМЕТНЫЙ Главн. топл. (0.066) JET Main Fuel (.066) |
2 | |
| 11 | NSS |
НЕ ПРОДАЕТСЯ ОТДЕЛЬНО SCREW, FLOAT PIN NOT SOLD SEPARATE SCREW, FLOAT PIN |
6 | |
| 12 | NSS |
НЕ ПРОДАЕТСЯ ОТДЕЛЬНО GASKET, INLET NEEDLE AND SEAT NOT SOLD SEPARATE GASKET, INLET NEEDLE AND SEAT |
6 | |
| 13 | 7824 |
ИГЛА/СЕДЛО В СБОРЕ Впуск NEEDLE/SEAT ASSEMBLY Inlet |
6 | |
| 14 | NSS |
НЕ ПРОДАЕТСЯ ОТДЕЛЬНО GASKET, NOZZLE BOSS NOT SOLD SEPARATE GASKET, NOZZLE BOSS |
6 | |
| 15 | 9267 |
ПОПЛАВОК FLOAT |
6 | discontinued |
| 16 | NSS |
НЕ ПРОДАЕТСЯ ОТДЕЛЬНО PIN, FLOAT LEVER NOT SOLD SEPARATE PIN, FLOAT LEVER |
6 | |
| 17 | NSS |
НЕ ПРОДАЕТСЯ ОТДЕЛЬНО GASKET, FUEL BOWL NOT SOLD SEPARATE GASKET, FUEL BOWL |
3 | |
| 18 | 4541 |
ВИНТ IDLE AIR BLEED JET SCREW IDLE AIR BLEED JET |
6 | |
| 19 | NSS |
НЕ ПРОДАЕТСЯ ОТДЕЛЬНО GASKET, BLEED JET PLUG NOT SOLD SEPARATE GASKET, BLEED JET PLUG |
6 | |
| 20 | 6030 |
ВОДОМЕТНЫЙ (0.070) IDLE AIR BLEED JET (.070) IDLE AIR BLEED |
6 | |
| 21 | 6027 |
ВИНТ THROTTLE LEVER SCREW THROTTLE LEVER |
3 | discontinued |
| 22 | 37752 |
НАКЛЕЙКА THROTTLE DECAL THROTTLE |
3 | discontinued |
| 23 | NSS |
НЕ ПРОДАЕТСЯ ОТДЕЛЬНО SPRING, THROTTLE RETURN NOT SOLD SEPARATE SPRING, THROTTLE RETURN |
3 | |
| 24 | 6031 |
ПРОСТАВКА THROTTLE LEVER SPACER THROTTLE LEVER |
3 | discontinued |
| 25 | 6022 |
ВАЛ THROTTLE SHAFT THROTTLE |
3 | discontinued |
| 26 | NSS |
НЕ ПРОДАЕТСЯ ОТДЕЛЬНО RING, RETAINER - THROTTLE SHAFT NOT SOLD SEPARATE RING, RETAINER - THROTTLE SHAFT |
3 | |
| 27 | 9416 |
КЛАПАН Дроссельная заслонка VALVE Throttle |
6 | discontinued |
| 28 | NSS |
НЕ ПРОДАЕТСЯ ОТДЕЛЬНО SCREW, THROTTLE VALVE NOT SOLD SEPARATE SCREW, THROTTLE VALVE |
12 | |
| 3 | NSS |
НЕ ПРОДАЕТСЯ ОТДЕЛЬНО GASKET, COVER PLATE NOT SOLD SEPARATE GASKET, COVER PLATE |
3 | |
| 4 | 6032 |
ПЛАСТИНА COVER PLATE COVER |
3 | discontinued |
| 5 | NSS |
НЕ ПРОДАЕТСЯ ОТДЕЛЬНО SCREW, COVER PLATE NOT SOLD SEPARATE SCREW, COVER PLATE |
15 | |
| 6 | 7823 |
КАМЕРА Топливо (TOP) BOWL Fuel (TOP) |
1 | discontinued |
| 6 | 7822 |
КАМЕРА Топливо (CENTER/BOTTOM) BOWL Fuel (CENTER/BOTTOM) |
2 | discontinued |
| 7 | NSS |
НЕ ПРОДАЕТСЯ ОТДЕЛЬНО SCREW, FUEL BOWL NOT SOLD SEPARATE SCREW, FUEL BOWL |
18 | |
| 8 | 6025 |
ПРОБКА MAIN JET PLUG MAIN JET |
6 | |
| 9 | NSS |
НЕ ПРОДАЕТСЯ ОТДЕЛЬНО GASKET, MAIN JET NOT SOLD SEPARATE GASKET, MAIN JET |
6 |
