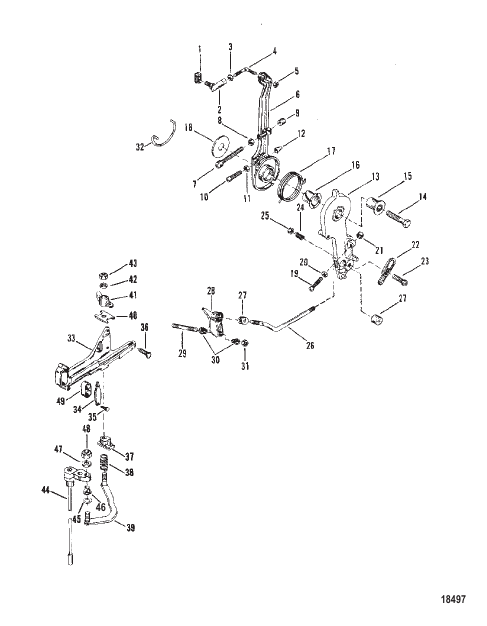

Throttle Lever and Shift Shaft
Parts (50)
| # | Part Number | Description | Qty | Status |
|---|---|---|---|---|
| 1 | 74897 |
ШАРНИР TRIGGER PLATE PIVOT TRIGGER PLATE |
1 | superseded |
| 10 | 69560 |
ВИНТ (0.190-32 x 1.250) SPARK ADVANCE LEVER - STOP SCREW (.190-32 x 1.250) SPARK ADVANCE LEVER - STOP |
1 | |
| 11 | 68219 |
ГАЙКА (№10-32), нержавеющая сталь SPARK ADVANCE LEVER STOP SCREW NUT (#10-32) Stainless Steel SPARK ADVANCE LEVER STOP SCREW |
1 | |
| 12 | 48039 |
ПРОБКА CAP |
1 | |
| 13 | 41095T |
РЫЧАГ THROTTLE CONTROL LEVER THROTTLE CONTROL |
1 | superseded |
| 14 | 55337 |
ВИНТ (0.375-16 x 1.75) SCREW (.375-16 x 1.75) |
1 | superseded |
| 15 | 55164 |
ВТУЛКА THROTTLE LEVER BUSHING THROTTLE LEVER |
1 | |
| 16 | 55171 |
ВТУЛКА BUSHING |
1 | discontinued |
| 17 | 68784 |
ПРУЖИНА SPRING |
1 | |
| 18 | 68410 |
ШАЙБА WASHER |
1 | discontinued |
| 19 | 64022 |
ВИНТ (0.250-20 x 2.125) SCREW (.250-20 x 2.125) |
1 | |
| 2 | 62459 |
ШАРОВОЕ СОЕДИНЕНИЕ В СБОРЕ TRIGGER PLATE BALL JOINT ASSEMBLY TRIGGER PLATE |
1 | superseded |
| 20 | 64015 |
ГАЙКА (0.250-20) NUT (.250-20) |
1 | |
| 21 | 26852 |
ПРОБКА Нейлон CAP Nylon |
1 | |
| 22 | 39483 |
ЗАЩЕЛКА CABLE LATCH CABLE |
1 | |
| 23 | 22486 |
ВИНТ (0.250-28 x 0.880) SCREW (.250-28 x .880) |
1 | superseded |
| 24 | 20099 |
ПРУЖИНА SPRING |
1 | |
| 25 | 20586 |
ГАЙКА (0.250-28) NUT (.250-28) |
1 | superseded |
| 26 | 79949 |
ШТОК THROTTLE CONTROL ROD THROTTLE CONTROL |
1 | discontinued |
| 27 | 60572 |
ДИФФУЗОР BARREL |
2 | superseded |
| 28 | 95791 |
КУЛАЧОК Дроссельная заслонка CAM Throttle |
1 | |
| 29 | 20353 |
ШПИЛЬКА (0.250-28 x 1.750) THROTTLE CAM ATTACHING STUD (.250-28 x 1.750) THROTTLE CAM ATTACHING |
1 | discontinued |
| 3 | 45076 |
ГАЙКА (№10-32), латунь LINK ROD NUT (#10-32) Brass LINK ROD |
1 | |
| 30 | 26856 |
ВТУЛКА THROTTLE CAM BUSHING THROTTLE CAM |
2 | |
| 31 | 36069 |
ГАЙКА THROTTLE CAM STUD NUT THROTTLE CAM STUD |
1 | |
| 32 | 41050 |
ПРУЖИНА THROTTLE RETURN SPRING THROTTLE RETURN |
1 | discontinued |
| 33 | 92032A2 |
КРОНШТЕЙН ANCHOR-CONTROL CABLES BRACKET ANCHOR-CONTROL CABLES |
1 | superseded |
| 34 | 98889 |
ЗАЩЕЛКА CONTROL CABLE LATCH CONTROL CABLE |
1 | |
| 35 | 42975 |
ХОДОВОЙ ВИНТ DRIVE SCREW |
2 | |
| 36 | 53167 |
ВИНТ (0.312-18 x 0.880) SCREW (.312-18 x .880) |
3 | superseded |
| 37 | 37896 |
НАПРАВЛЯЮЩИЙ БЛОК LINK ROD GUIDE BLOCK LINK ROD |
1 | discontinued |
| 38 | 20099 |
ПРУЖИНА SPRING |
1 | |
| 39 | 67073A1 |
СТЕРЖЕНЬ ТЯГИ В СБОРЕ LINK ROD ASSEMBLY |
1 | |
| 4 | 76035 |
ШТОК TRIGGER PLATE ROD TRIGGER PLATE |
1 | discontinued |
| 40 | 52100 |
ИЗНОСОСТОЙКАЯ ПЛАСТИНА LINK ROD WEAR PLATE LINK ROD |
1 | |
| 41 | 38279 |
ЗАЩЕЛКА LATCH |
1 | superseded |
| 42 | 35462 |
ШАЙБА (0.2656 x 0.625 x 0.0625), нержавеющая сталь WASHER (.2656 x .625 x .0625) Stainless Steel |
1 | |
| 43 | 36069 |
ГАЙКА NUT |
1 | |
| 44 | 79932A11 |
ВАЛ ПЕРЕКЛЮЧЕНИЯ ПЕРЕДАЧ В СБОРЕ Long SHIFT SHAFT ASSEMBLY Long |
1 | superseded |
| 44 | 79932A12 |
ВАЛ ПЕРЕКЛЮЧЕНИЯ ПЕРЕДАЧ В СБОРЕ X-Long SHIFT SHAFT ASSEMBLY X-Long |
1 | superseded |
| 45 | 29720 |
ВОЛНИСТАЯ ШАЙБА WAVE WASHER |
1 | |
| 46 | 26600 |
ВТУЛКА NYLON BUSHING NYLON |
1 | discontinued |
| 47 | 35462 |
ШАЙБА (0.2656 x 0.625 x 0.0625), нержавеющая сталь WASHER (.2656 x .625 x .0625) Stainless Steel |
1 | |
| 48 | 36069 |
ГАЙКА NUT |
1 | |
| 49 | 39519 |
КОЛПАЧОК CUP |
1 | |
| 5 | 46438 |
ГАЙКА (№10-32) BALL JOINT NUT (#10-32) BALL JOINT |
1 | |
| 6 | 41094A3 |
РЫЧАГ В СБОРЕ SPARK ADVANCE LEVER ASSEMBLY SPARK ADVANCE |
1 | |
| 7 | 64022 |
ВИНТ (0.250-20 x 2.125) SCREW (.250-20 x 2.125) |
1 | |
| 8 | 64015 |
ГАЙКА (0.250-20) NUT (.250-20) |
1 | |
| 9 | 26852 |
ПРОБКА Нейлон CAP Nylon |
1 |
