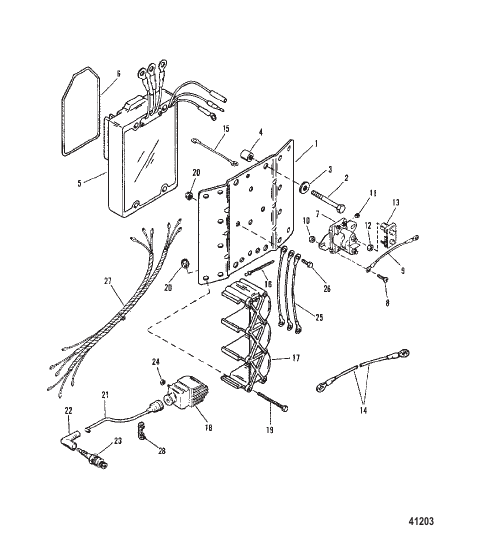

IGNITION COIL/VOLTAGE REGULATOR
Parts (29)
| # | Part Number | Description | Qty | Status |
|---|---|---|---|---|
| 1 | 19587 |
ПЛАСТИНА MOUNTING PLATE MOUNTING |
1 | superseded |
| 10 | 56374 |
ГАЙКА (0.250-20) SOLENOID SCREW NUT (.250-20) SOLENOID SCREW |
3 | superseded |
| 11 | 26419 |
ГАЙКА (№8-32), латунь SOLENOID TERMINAL NUT (#8-32) Brass SOLENOID TERMINAL |
4 | |
| 12 | 94330 |
ГАЙКА (0.250-20), латунь SOLENOID TERMINAL NUT (.250-20) Brass SOLENOID TERMINAL |
4 | |
| 13 | 97861 |
РАЗЪЕДИНИТЕЛЬ STARTER SOLENOID INSULATOR STARTER SOLENOID |
2 | |
| 14 | 88807A8 |
КАБЕЛЬ В СБОРЕ (3.50"), черный CABLE ASSEMBLY (3.50 Inches) Black |
2 | discontinued |
| 15 | 88807A29 |
КАБЕЛЬ В СБОРЕ (9" - BLACK) CABLE ASSEMBLY (9" - BLACK) |
1 | discontinued |
| 16 | 90077 |
ЛЕНТОЧНЫЙ ХОМУТ TIE STRAP |
AR | superseded |
| 17 | 43542 |
КРЫШКА IGNITION COIL COVER IGNITION COIL |
2 | discontinued |
| 18 | 7370A13 |
КАТУШКА В СБОРЕ Зажигание COIL ASSEMBLY Ignition |
6 | superseded |
| 19 | 90048 |
ВИНТ (№10-32 x 2.125) IGNITION COIL COVER SCREW (#10-32 x 2.125) IGNITION COIL COVER |
12 | discontinued |
| 2 | 30720 |
ВИНТ (0.250-20 x 2.25) VOLTAGE REGULATOR SCREW (.250-20 x 2.25) VOLTAGE REGULATOR |
4 | discontinued |
| 20 | 90078 |
ГАЙКА (№10-32) COVER SCREW/GROUND WIRE NUT (#10-32) COVER SCREW/GROUND WIRE |
14 | discontinued |
| 21 | 813715A9 |
КОМПЛЕКТ КАБЕЛЯ Зажигание HIGH TENSION CABLE KIT Ignition HIGH TENSION |
1 | |
| 22 | 63709A1 |
КОМПЛЕКТ ЧЕХЛА/КЛЕММ HIGH TENSION CABLE BOOT/TERMINAL KIT HIGH TENSION CABLE |
6 | |
| 23 | 136862 |
СВЕЧА ЗАЖИГАНИЯ SPARK PLUG |
6 | superseded |
| 24 | 45076 |
ГАЙКА (№10-32), латунь IGNITION COIL TERMINAL NUT (#10-32) Brass IGNITION COIL TERMINAL |
12 | |
| 25 | 88807A13 |
КАБЕЛЬ В СБОРЕ CABLE ASSEMBLY |
6 | |
| 26 | 69022 |
ВИНТ (№10-32 x 0.500), нержавеющая сталь GROUNDING WIRE SCREW (#10-32 x .500) Stainless Steel GROUNDING WIRE |
2 | |
| 27 | 69738A9 |
ЖГУТ ПРОВОДОВ В СБОРЕ COIL TO SWITCH BOX (#2, 4 AND 6) HARNESS ASSEMBLY COIL TO SWITCH BOX (#2, 4 AND 6) |
1 | |
| 27 | 69739A6 |
ЖГУТ ПРОВОДОВ В СБОРЕ COIL TO SWITCH BOX (#1, 3 AND 5) HARNESS ASSEMBLY COIL TO SWITCH BOX (#1, 3 AND 5) |
1 | |
| 28 | 54676 |
ФИКСАТОР Двухпроводной RETAINER Two Wire |
2 | |
| 3 | 26992 |
СТОПОРНАЯ ШАЙБА (0.250), нержавеющая сталь LOCKWASHER (.250) Stainless Steel |
4 | |
| 4 | 19661 |
ВТУЛКА BUSHING |
4 | |
| 5 | 18736A8 |
РЕГУЛЯТОР В СБОРЕ Напряжение REGULATOR ASSEMBLY Voltage |
1 | superseded |
| 6 | 18717 |
УПЛОТНЕНИЕ SEAL |
1 | discontinued |
| 7 | 96158 |
ЭЛЕКТРОМАГНИТ Стартер SOLENOID Starter |
2 | superseded |
| 8 | 28635 |
ВИНТ (0.250-20 x 0.620), нержавеющая сталь STARTER SOLENOID SCREW (.250-20 x .620) Stainless Steel STARTER SOLENOID |
3 | |
| 9 | 88807A6 |
КАБЕЛЬ В СБОРЕ (3.50"), черный CABLE ASSEMBLY (3.50 Inches) Black |
1 |
