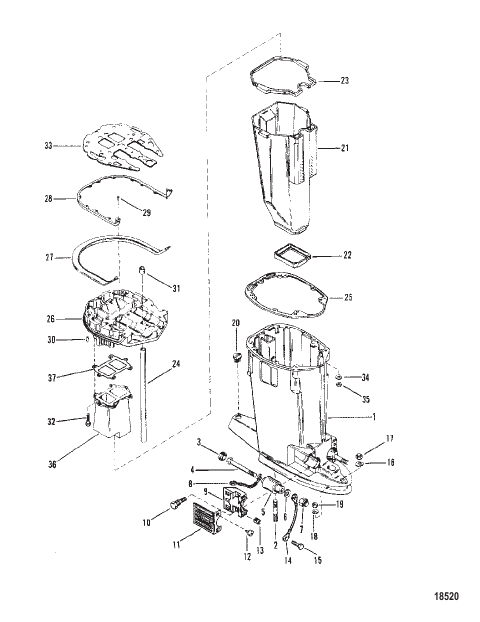

| # | Part Number | Description | Qty | Status |
|---|
| - |
11338A88 |
GASKET SET Engine Overhaul
|
1 |
disc.
|
| 1 |
8343A7 |
HOUSING ASSEMBLY Driveshaft (BLACK)
|
1 |
disc.
|
| 1 |
8343A8 |
HOUSING ASSEMBLY Driveshaft (GRAY)
|
1 |
disc.
|
| 10 |
66727 |
SCREW (.312-18 x 1.250) LOWER MOUNT CLAMP ATTACHING
|
4 |
|
| 11 |
67077 |
COVER LOWER MOUNT CLAMP (BLACK)
|
2 |
superseded
|
| 11 |
67077T6 |
COVER LOWER MOUNT CLAMP (GRAY)
|
2 |
superseded
|
| 12 |
88417 |
SCREW (#12-24 x .620) COVER ATTACHING
|
4 |
|
| 13 |
35521 |
NUT NYLON-COVER TO CLAMP SCREW
|
4 |
|
| 14 |
88238A2 |
CABLE ASSEMBLY Ground
|
1 |
superseded
|
| 15 |
41508 |
SCREW (.250-20 x .500) Stainless Steel GROUND WIRE
|
1 |
|
| 16 |
73862 |
WASHER GEAR HOUSING STUD
|
1 |
disc.
|
| 17 |
29489 |
NUT GEAR HOUSING STUD (CAP)
|
1 |
disc.
|
| 18 |
45176 |
WASHER (.453 x .812 x .105) Stainless Steel GEAR HOUSING STUD
|
2 |
|
| 19 |
34933 |
NUT (.437-20) Stainless Steel GEAR HOUSING STUD
|
2 |
superseded
|
| 2 |
56295 |
STUD (.437 x 2.69) DRIVE SHAFT HSG./GEAR HSG.
|
2 |
|
| 20 |
64649 |
PLUG DRIVE SHAFT HOUSING
|
1 |
|
| 21 |
89743 |
TUBE Exhaust
|
1 |
disc.
|
| 22 |
66350 |
SEAL EXHAUST TUBE-LOWER
|
1 |
superseded
|
| 23 |
86027 |
SEAL EXHAUST TUBE-UPPER
|
1 |
|
| 24 |
67295 |
TUBE Water WATER
|
1 |
superseded
|
| 25 |
991731 |
GASKET DRIVE SHAFT HOUSING TO PLATE
|
1 |
superseded
|
| 26 |
41945A7 |
PLATE ASSEMBLY DRIVE SHAFT HOUSING
|
1 |
disc.
|
| 27 |
183982 |
SEAL BRACKET
|
1 |
superseded
|
| 28 |
68011 |
BRACKET SEAL RETAINING
|
1 |
|
| 29 |
48408 |
SCREW (#10-16 x .500) BRACKET TO PLATE
|
12 |
|
| 3 |
25067 |
BUMPER LOWER MOUNT SCREW
|
2 |
disc.
|
| 30 |
20033 |
PIN Dowel LOCATING
|
2 |
superseded
|
| 31 |
38970 |
SEAL WATER TUBE
|
1 |
|
| 32 |
90192 |
SCREW (.250-20 x .750) Stainless Steel DIFFUSER TO PLATE
|
6 |
|
| 33 |
991771 |
GASKET DRIVE SHAFT HOUSING PLATE TO EXHAUST PLATE
|
1 |
superseded
|
| 34 |
25970 |
WASHER POWER HEAD STUD
|
4 |
superseded
|
| 35 |
69254 |
NUT POWER HEAD STUD
|
4 |
|
| 36 |
17303 |
DIFFUSER EXHAUST
|
1 |
superseded
|
| 37 |
78246 |
GASKET EXHAUST DIFFUSER
|
1 |
superseded
|
| 4 |
63474 |
SCREW (.500-20 x 6.00) LOWER MOUNT
|
2 |
superseded
|
| 5 |
77327 |
MOUNT LOWER
|
2 |
|
| 6 |
49339 |
WASHER (.8125) LOWER MOUNT SCREW
|
2 |
|
| 7 |
25096 |
NUT LOWER MOUNT SCREW
|
2 |
disc.
|
| 8 |
88238A1 |
CABLE ASSEMBLY Ground
|
1 |
superseded
|
| 9 |
67076 |
CLAMP LOWER MOUNT
|
2 |
superseded
|
