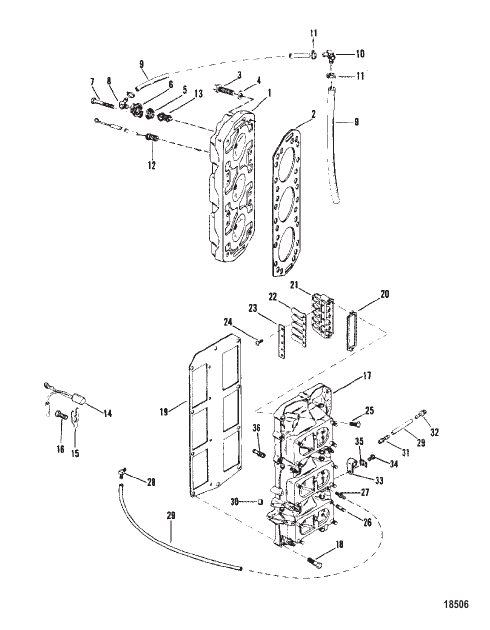

Reed Block and Cylinder Head
Parts (40)
| # | Part Number | Description | Qty | Status |
|---|---|---|---|---|
| - | 11338A88 |
КОМПЛЕКТ ПРОКЛАДОК Капитальный ремонт двигателя GASKET SET Engine Overhaul |
1 | discontinued |
| 1 | 15221A1 |
ГОЛОВКА ЦИЛИНДРА В СБОРЕ CYLINDER HEAD ASSEMBLY |
2 | superseded |
| 10 | 68728 |
ФИТИНГ THERMOSTAT COVER TO WATER HOSES FITTING THERMOSTAT COVER TO WATER HOSES |
1 | discontinued |
| 11 | 90077 |
ЛЕНТОЧНЫЙ ХОМУТ WATER HOSES TIE STRAP WATER HOSES |
AR | superseded |
| 12 | 97465 |
ДАТЧИК Температура (STARBOARD) SENDER Temperature (STARBOARD) |
1 | |
| 13 | 75692 |
ТЕРМОСТАТ THERMOSTAT |
2 | |
| 14 | 13536A7 |
ДАТЧИК В СБОРЕ Температура (PORT) SENSOR ASSEMBLY Temperature (PORT) |
1 | |
| 15 | 13715 |
ФИКСАТОР SENSOR AND SENDER RETAINER SENSOR AND SENDER |
2 | superseded |
| 16 | 98257 |
ВИНТ (0.312-18 x 0.500) RETAINER SCREW (.312-18 x .500) RETAINER |
2 | |
| 17 | 99747A9 |
КОРПУС REED BLOCK HOUSING REED BLOCK |
1 | discontinued |
| 18 | 24878 |
ВИНТ (0.250-20 x 1.25) REED BLOCK HOUSING SCREW (.250-20 x 1.25) REED BLOCK HOUSING |
1 | discontinued |
| 18 | 69093 |
ВИНТ (0.250-20 x 1.50) REED BLOCK HOUSING SCREW (.250-20 x 1.50) REED BLOCK HOUSING |
8 | discontinued |
| 18 | 69067 |
ВИНТ (0.250-20 x 1.375) REED BLOCK HOUSING SCREW (.250-20 x 1.375) REED BLOCK HOUSING |
1 | |
| 19 | 935361 |
ПРОКЛАДКА REED BLOCK HOUSING GASKET REED BLOCK HOUSING |
1 | |
| 2 | 41246 |
ПРОКЛАДКА CYLINDER COVER GASKET CYLINDER COVER |
2 | superseded |
| 20 | 65744 |
ПРОКЛАДКА REED BLOCK GASKET REED BLOCK |
6 | superseded |
| 21 | 75953 |
БЛОК С ПЛАСТИНЧАТЫМИ КЛАПАНАМИ REED BLOCK |
6 | |
| 22 | 75362A1 |
ПЛАСТИНЫ В СБОРЕ REED ASSEMBLY |
6 | discontinued |
| 23 | 96183 |
ЗАЖИМ Пластинчатый клапан CLAMP Reed |
12 | superseded |
| 24 | 57583 |
ВИНТ (№8-32 x .375) REED TO REED BLOCK SCREW (#8-32 x .375) REED TO REED BLOCK |
60 | superseded |
| 25 | 65746 |
ВИНТ (0.250-20 x 0.750) REED BLOCK ATTACHING SCREW (.250-20 x .750) REED BLOCK ATTACHING |
12 | |
| 26 | 27037 |
ШПИЛЬКА (0.250-28 x 1.125) CARBURETOR MOUNTING STUD (.250-28 x 1.125) CARBURETOR MOUNTING |
12 | superseded |
| 27 | 42658 |
ОБРАТНЫЙ КЛАПАН BLEED HOSE TO REED BLOCK HOUSING CHECK VALVE BLEED HOSE TO REED BLOCK HOUSING |
5 | superseded |
| 28 | 15133 |
ФИТИНГ BLEED HOSE TO CYLINDER BLOCK (90 DEG.) FITTING BLEED HOSE TO CYLINDER BLOCK (90 DEG.) |
5 | |
| 29 | 99130122 |
ТРУБОПРОВОД (Общая длина 20.00 фт.) BLEED LINE TUBING (20.00 Feet Bulk) BLEED LINE |
1 | superseded |
| 3 | 98534 |
ВИНТ (0.375-16 x 2.30) CYLINDER HEAD SCREW (.375-16 x 2.30) CYLINDER HEAD |
24 | discontinued |
| 30 | 42657A1 |
ОБРАТНЫЙ КЛАПАН CHECK VALVE |
1 | superseded |
| 31 | 65857 |
СОЕДИНИТЕЛЬ BLEED HOSE (PRESS-IN) CONNECTOR BLEED HOSE (PRESS-IN) |
1 | superseded |
| 32 | 64871A2 |
ОБРАТНЫЙ КЛАПАН CHECK VALVE |
1 | discontinued |
| 33 | 23567 |
ЗАЖИМ (9/16") CLIP (9/16") |
1 | |
| 33 | 26404 |
ЗАЖИМ (1") CLAMP (1") |
1 | discontinued |
| 34 | 69079 |
ВИНТ (№10-16 x 0.440) CLIP SCREW (#10-16 x .440) CLIP |
2 | |
| 35 | 69205 |
C-ШАЙБА C WASHER |
2 | superseded |
| 36 | 64705 |
ФИТИНГ FITTING |
1 | |
| 4 | 25909 |
ШАЙБА (0.406 x 0.812 x 0.065) CYLINDER HEAD SCREW WASHER (.406 x .812 x .065) CYLINDER HEAD SCREW |
24 | |
| 5 | 62386 |
ПРОКЛАДКА THERMOSTAT GASKET THERMOSTAT |
2 | superseded |
| 6 | 90390A1 |
КОМПЛЕКТ КРЫШЕК THERMOSTAT COVER KIT THERMOSTAT |
2 | |
| 7 | 35386 |
ВИНТ (0.312-18 x 1.00) THERMOSTAT COVER SCREW (.312-18 x 1.00) THERMOSTAT COVER |
4 | |
| 8 | 68727 |
ФИТИНГ (0.250-18), 90 градусов – латунь ELBOW - WATER HOSES FITTING (.250-18) 90 Degree - Brass ELBOW - WATER HOSES |
1 | superseded |
| 9 | 7765377 |
РУКАВ (Общая длина 24.500") WATER DISTRUBUTION HOSE (24.500 Inches Bulk) WATER DISTRUBUTION |
2 | superseded |
