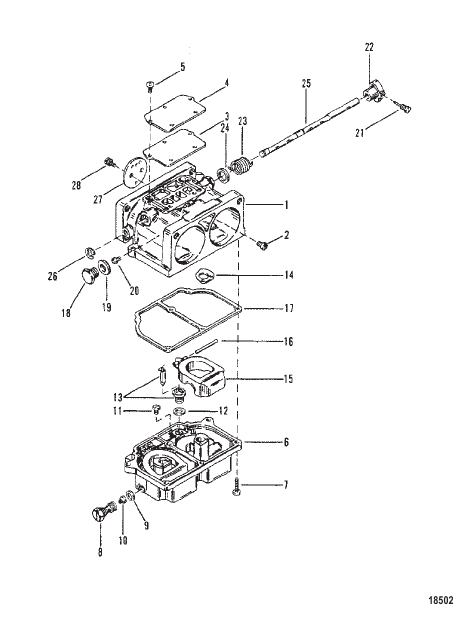

Carburetor Assembly
Parts (39)
| # | Part Number | Description | Qty | Status |
|---|---|---|---|---|
| - | 6452 |
КОМПЛЕКТ ПРОКЛАДОК GASKET KIT |
1 | |
| - | 8506 |
РЕМОНТНЫЙ КОМПЛЕКТ Карбюратор (WH-41) REPAIR KIT Carburetor (WH-41) |
1 | |
| - | 814787 |
РЕМОНТНЫЙ КОМПЛЕКТ Карбюратор (WH-41A) REPAIR KIT Carburetor (WH-41A) |
1 | discontinued |
| 1 | 9671A1 |
КАРБЮРАТОР (Top)(WH-41) CARBURETOR (Top)(WH-41) |
1 | discontinued |
| 1 | 9671A7 |
КАРБЮРАТОР (Top)(WH-41A) CARBURETOR (Top)(WH-41A) |
1 | discontinued |
| 1 | 9671A2 |
КАРБЮРАТОР (Center)(WH-41) CARBURETOR (Center)(WH-41) |
1 | discontinued |
| 1 | 9671A8 |
КАРБЮРАТОР (Center)(WH-41A) CARBURETOR (Center)(WH-41A) |
1 | discontinued |
| 1 | 9671A3 |
КАРБЮРАТОР (Bottom)(WH-41) CARBURETOR (Bottom)(WH-41) |
1 | discontinued |
| 1 | 9671A9 |
КАРБЮРАТОР (Bottom)(WH-41A) CARBURETOR (Bottom)(WH-41A) |
1 | discontinued |
| 10 | 3794 |
ВОДОМЕТНЫЙ (0.074) Main Fuel (For High Altitude jets, consult your service manual for correct sizes and part numbers) JET (.074) Main Fuel (For High Altitude jets, consult your service manual for correct sizes and part numbers) |
6 | |
| 11 | NSS |
НЕ ПРОДАЕТСЯ ОТДЕЛЬНО Screw-Float Pin NOT SOLD SEPARATE Screw-Float Pin |
6 | |
| 12 | NSS |
НЕ ПРОДАЕТСЯ ОТДЕЛЬНО Gasket-Inlet Needle and Seat NOT SOLD SEPARATE Gasket-Inlet Needle and Seat |
6 | |
| 13 | 7824 |
ИГЛА/СЕДЛО В СБОРЕ Впуск (WH-41) NEEDLE/SEAT ASSEMBLY Inlet (WH-41) |
6 | |
| 13 | 814786 |
ИГЛА/СЕДЛО В СБОРЕ Впуск (WH-41A) NEEDLE/SEAT ASSEMBLY Inlet (WH-41A) |
6 | discontinued |
| 14 | NSS |
НЕ ПРОДАЕТСЯ ОТДЕЛЬНО Gasket-Nozzle Boss NOT SOLD SEPARATE Gasket-Nozzle Boss |
6 | |
| 15 | 9267 |
ПОПЛАВОК FLOAT |
6 | discontinued |
| 16 | NSS |
НЕ ПРОДАЕТСЯ ОТДЕЛЬНО Pin-Float Lever NOT SOLD SEPARATE Pin-Float Lever |
6 | |
| 17 | NSS |
НЕ ПРОДАЕТСЯ ОТДЕЛЬНО Gasket-Fuel Bowl NOT SOLD SEPARATE Gasket-Fuel Bowl |
3 | |
| 18 | 4541 |
ВИНТ Idle Air Bleed Jet SCREW Idle Air Bleed Jet |
6 | |
| 19 | NSS |
НЕ ПРОДАЕТСЯ ОТДЕЛЬНО Gasket-Bleed Jet Plug NOT SOLD SEPARATE Gasket-Bleed Jet Plug |
6 | |
| 2 | 3796 |
ВОДОМЕТНЫЙ (0.076) Bowl Vent JET (.076) Bowl Vent |
3 | |
| 20 | 6359 |
ВОДОМЕТНЫЙ (0.052) Idle Air Bleed (WH-41) JET (.052) Idle Air Bleed (WH-41) |
6 | |
| 20 | 6246 |
ВОДОМЕТНЫЙ (0.048) Idle Air Bleed (WH-41A) JET (.048) Idle Air Bleed (WH-41A) |
6 | |
| 21 | 6027 |
ВИНТ Throttle Lever SCREW Throttle Lever |
3 | discontinued |
| 22 | 814679 |
РЫЧАГ Throttle LEVER Throttle |
3 | discontinued |
| 23 | NSS |
НЕ ПРОДАЕТСЯ ОТДЕЛЬНО Spring-Throttle Return NOT SOLD SEPARATE Spring-Throttle Return |
3 | |
| 24 | 6031 |
ПРОСТАВКА Throttle Lever SPACER Throttle Lever |
3 | discontinued |
| 25 | 6022 |
ВАЛ Throttle SHAFT Throttle |
3 | discontinued |
| 26 | NSS |
НЕ ПРОДАЕТСЯ ОТДЕЛЬНО Ring-Retainer-Throttle Shaft NOT SOLD SEPARATE Ring-Retainer-Throttle Shaft |
3 | |
| 27 | 6023 |
КЛАПАН Дроссельная заслонка VALVE Throttle |
6 | discontinued |
| 28 | NSS |
НЕ ПРОДАЕТСЯ ОТДЕЛЬНО Screw-Throttle Valve NOT SOLD SEPARATE Screw-Throttle Valve |
12 | |
| 3 | NSS |
НЕ ПРОДАЕТСЯ ОТДЕЛЬНО Gasket-Cover Plate NOT SOLD SEPARATE Gasket-Cover Plate |
3 | |
| 4 | 6032 |
ПЛАСТИНА Cover PLATE Cover |
3 | discontinued |
| 5 | NSS |
НЕ ПРОДАЕТСЯ ОТДЕЛЬНО Screw-Cover Plate NOT SOLD SEPARATE Screw-Cover Plate |
15 | |
| 6 | 7823 |
КАМЕРА Топливо (Top) BOWL Fuel (Top) |
1 | discontinued |
| 6 | 7822 |
КАМЕРА Топливо (Center/Bottom) BOWL Fuel (Center/Bottom) |
2 | discontinued |
| 7 | NSS |
НЕ ПРОДАЕТСЯ ОТДЕЛЬНО Screw-Fuel Bowl NOT SOLD SEPARATE Screw-Fuel Bowl |
18 | |
| 8 | 6025 |
ПРОБКА Main Jet PLUG Main Jet |
6 | |
| 9 | NSS |
НЕ ПРОДАЕТСЯ ОТДЕЛЬНО NOT SOLD SEPARATE |
6 |
