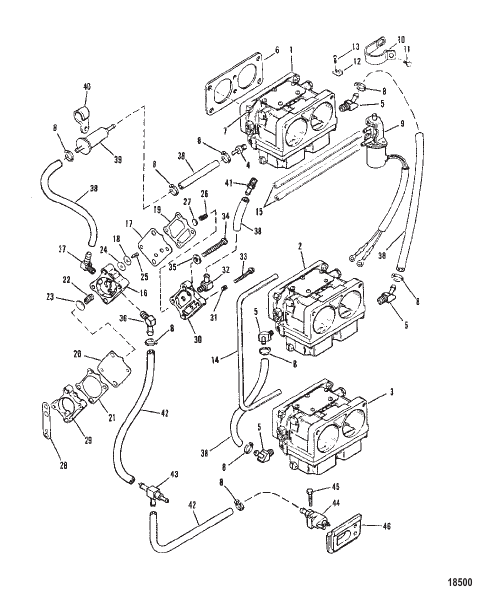

| # | Part Number | Description | Qty | Status |
|---|
| - |
6452 |
GASKET KIT
|
1 |
|
| - |
8506 |
REPAIR KIT Carburetor (WH-41)
|
1 |
|
| - |
814787 |
REPAIR KIT Carburetor (WH-41A)
|
1 |
disc.
|
| - |
11338A88 |
GASKET SET Engine Overhaul
|
1 |
disc.
|
| 1 |
9671A1 |
CARBURETOR (TOP) (WH-41)
|
1 |
disc.
|
| 1 |
9671A7 |
CARBURETOR (TOP) (WH-41A)
|
1 |
disc.
|
| 10 |
633001 |
CLAMP ENRICHENER VALVE
|
1 |
disc.
|
| 11 |
73286 |
SCREW (.250-20 x .500) Stainless Steel VALVE CLAMP
|
1 |
|
| 12 |
45915 |
TERMINAL BLOCK REED BLOCK HOUSING
|
1 |
|
| 13 |
35519 |
SCREW (#10-16 x .500) TERMINAL BLOCK ATTACHING
|
1 |
disc.
|
| 14 |
99130122 |
TUBING (20.00 Feet Bulk) TOP CARBURETOR TO VALVE (7.75 Inches)
|
1 |
superseded
|
| 15 |
9912688 |
TUBING (36.00 Inches Bulk) CARBURETOR TO CARBURETOR (4.25 Inches)
|
2 |
|
| 16 |
15930A15 |
PUMP KIT Fuel
|
1 |
|
| 17 |
42990A6 |
DIAPHRAGM KIT
|
1 |
superseded
|
| 18 |
NSS |
NOT SOLD SEPARATE Check Valve-Rubber
|
2 |
|
| 19 |
NSS |
NOT SOLD SEPARATE Gasket-Boost
|
1 |
|
| 2 |
9671A2 |
CARBURETOR (CENTER) (WH-41)
|
1 |
disc.
|
| 2 |
9671A8 |
CARBURETOR (CENTER) (WH-41A)
|
1 |
disc.
|
| 20 |
NSS |
NOT SOLD SEPARATE Diaphragm
|
2 |
|
| 21 |
NSS |
NOT SOLD SEPARATE Gasket-Pulse
|
1 |
|
| 22 |
NSS |
NOT SOLD SEPARATE Spring
|
1 |
|
| 23 |
NSS |
NOT SOLD SEPARATE Cap
|
1 |
|
| 24 |
NSS |
NOT SOLD SEPARATE Check Valve
|
2 |
|
| 25 |
NSS |
NOT SOLD SEPARATE Retainer
|
2 |
|
| 26 |
NSS |
NOT SOLD SEPARATE Spring
|
1 |
|
| 27 |
NSS |
NOT SOLD SEPARATE Cap
|
1 |
|
| 28 |
987691 |
GASKET BASE
|
1 |
superseded
|
| 29 |
144303 |
BASE FUEL PUMP
|
1 |
|
| 3 |
9671A3 |
CARBURETOR (BOTTOM) (WH-41)
|
1 |
disc.
|
| 3 |
9671A9 |
CARBURETOR (BOTTOM) (WH-41A)
|
1 |
disc.
|
| 30 |
98775A2 |
PLATE FUEL PUMP
|
1 |
superseded
|
| 31 |
56800 |
PLUG Pipe (.0625-27)
|
1 |
|
| 32 |
19688 |
FITTING
|
1 |
disc.
|
| 33 |
16452 |
SCREW (#12-24 x 2.00) FUEL PUMP
|
2 |
|
| 34 |
4000310 |
SCREW (M5 x 40) FUEL PUMP TO CRANKCASE
|
2 |
disc.
|
| 35 |
4002314 |
WASHER FUEL PUMP SCREW
|
2 |
|
| 36 |
14868 |
FITTING FUEL PUMP
|
1 |
|
| 37 |
19688 |
FITTING FUEL PUMP
|
1 |
disc.
|
| 38 |
99127109 |
LINE (57.00 Inches Bulk)
|
1 |
superseded
|
| 39 |
16494 |
FILTER Fuel
|
1 |
superseded
|
| 4 |
6232 |
FITTING FUEL INLET (UPPER)
|
1 |
disc.
|
| 40 |
15279 |
CLAMP FUEL FILTER
|
1 |
disc.
|
| 41 |
64705 |
FITTING PULSE HOSE
|
1 |
|
| 42 |
9912976 |
TUBING
|
2 |
superseded
|
| 43 |
424251 |
TEE
|
1 |
superseded
|
| 44 |
15781A1 |
CONNECTOR Fuel
|
1 |
superseded
|
| 45 |
69067 |
SCREW (.250-20 x 1.375)
|
1 |
|
| 46 |
812782 |
SEAL
|
1 |
disc.
|
| 5 |
70007 |
FITTING 45 Degree FUEL INLET
|
4 |
|
| 6 |
904301 |
GASKET CARBURETOR
|
3 |
|
| 7 |
20184 |
NUT (1/4-28X7/32) CARBURETOR MOUNTING
|
12 |
superseded
|
| 8 |
90077 |
TIE STRAP FUEL HOSE TO CARBURETOR
|
AR |
superseded
|
| 9 |
42859A2 |
VALVE ASSEMBLY Enrichner
|
1 |
|
