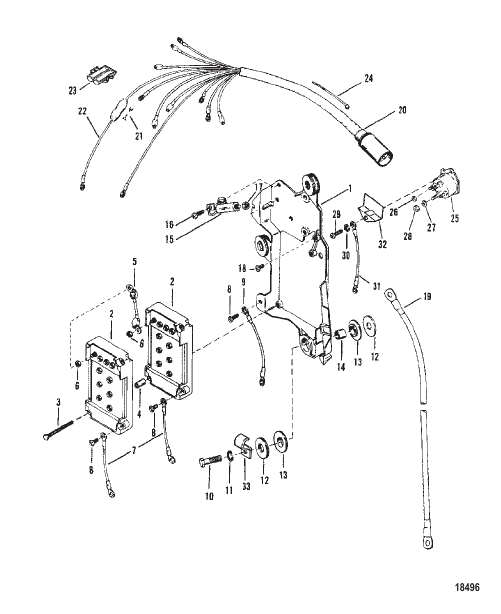

Wiring Harness/Starter Solenoid
Parts (34)
| # | Part Number | Description | Qty | Status |
|---|---|---|---|---|
| 1 | 43429 |
ПЛАСТИНА Ignition PLATE Ignition |
1 | superseded |
| 10 | 69092 |
ВИНТ (1.25) Ignition Plate SCREW (1.25) Ignition Plate |
3 | superseded |
| 11 | 26993 |
СТОПОРНАЯ ШАЙБА (0.312) Ignition Plate Screw LOCKWASHER (.312) Ignition Plate Screw |
3 | superseded |
| 12 | 36042 |
ШАЙБА Ignition Plate Screw WASHER Ignition Plate Screw |
6 | |
| 13 | 67264 |
ШАЙБА (Резина) Ignition Plate Screw WASHER (Rubber) Ignition Plate Screw |
6 | |
| 14 | 67268 |
ВТУЛКА Ignition Plate Screw BUSHING Ignition Plate Screw |
3 | discontinued |
| 15 | 33386A3 |
ПЕРЕКЛЮЧАТЕЛЬ В СБОРЕ SWITCH ASSEMLBY |
1 | discontinued |
| 16 | 38055 |
ВИНТ (0.190-32 x 0.620) Switch to Ignition Plate SCREW (.190-32 x .620) Switch to Ignition Plate |
1 | discontinued |
| 17 | 45076 |
ГАЙКА (№10-32), латунь Switch Terminal NUT (#10-32) Brass Switch Terminal |
1 | |
| 18 | 87926 |
ВИНТ (№10-32 x 0.500) Lead Attaching SCREW (#10-32 x .500) Lead Attaching |
1 | discontinued |
| 19 | 88439A3 |
КАБЕЛЬ В СБОРЕ Положительный полюс – аккумулятор CABLE ASSEMBLY Positive - Battery |
1 | |
| 19 | 88439A2 |
КАБЕЛЬ В СБОРЕ Аккумулятор – отрицательный полюс Negative CABLE ASSEMBLY Battery - Negative Negative |
1 | |
| 2 | 7778A9 |
РАСПРЕДЕЛИТЕЛЬНАЯ КОРОБКА В СБОРЕ SWITCHBOX ASSEMBLY |
2 | superseded |
| 20 | 96220A12 |
ЖГУТ ПРОВОДОВ В СБОРЕ Engine HARNESS ASSEMBLY Engine |
1 | discontinued |
| 21 | 79091 |
ПЛАВКИЙ ПРЕДОХРАНИТЕЛЬ 20 ампер FUSE 20 Ampere |
1 | superseded |
| 22 | 95084A2 |
КАБЕЛЬ В СБОРЕ Fuse CABLE ASSEMBLY Fuse |
1 | |
| 23 | 134731 |
ДЕРЖАТЕЛЬ Предохранитель HOLDER Fuse |
1 | discontinued |
| 24 | 90077 |
ЛЕНТОЧНЫЙ ХОМУТ Harness and Cables TIE STRAP Harness and Cables |
AR | superseded |
| 25 | 15857 |
ЭЛЕКТРОМАГНИТ Стартер SOLENOID Starter |
1 | superseded |
| 26 | 45076 |
ГАЙКА (№10-32), латунь Solenoid Terminals NUT (#10-32) Brass Solenoid Terminals |
2 | |
| 27 | 53166 |
СТОПОРНАЯ ШАЙБА (0.312) Solenoid Terminals LOCKWASHER (.312) Solenoid Terminals |
2 | |
| 28 | 68292 |
ГАЙКА (0.312-18) Solenoid Terminals NUT (.312-18) Solenoid Terminals |
2 | superseded |
| 29 | 31716 |
ВИНТ (0.250-20 x 0.620) Solenoid to Ignition Plate SCREW (.250-20 x .620) Solenoid to Ignition Plate |
2 | discontinued |
| 3 | 13669 |
ВИНТ (№12-24 x 2.00) Switch Box to Ignition Plate SCREW (#12-24 x 2.00) Switch Box to Ignition Plate |
2 | discontinued |
| 30 | 26992 |
СТОПОРНАЯ ШАЙБА (0.250), нержавеющая сталь Solenoid to Ignition Plate Screw LOCKWASHER (.250) Stainless Steel Solenoid to Ignition Plate Screw |
2 | |
| 31 | 65999A2 |
КАБЕЛЬ В СБОРЕ Черный Upper Mount CABLE ASSEMBLY Black Upper Mount |
1 | discontinued |
| 32 | 78866 |
РАЗЪЕДИНИТЕЛЬ Solenoid INSULATOR Solenoid |
1 | discontinued |
| 33 | 47483 |
J-ЗАЖИМ J CLIP |
2 | |
| 4 | 94453 |
ВТУЛКА Switch Box Screw BUSHING Switch Box Screw |
2 | discontinued |
| 5 | 62310A2 |
КАБЕЛЬ В СБОРЕ Switch Box to Switch Box CABLE ASSEMBLY Switch Box to Switch Box |
1 | |
| 6 | 45076 |
ГАЙКА (№10-32), латунь Switch Box Terminal NUT (#10-32) Brass Switch Box Terminal |
20 | |
| 7 | 60871A10 |
ПРОВОД В СБОРЕ Switch Box WIRE ASSEMBLY Switch Box |
2 | |
| 8 | 62568 |
ВИНТ (№10-16 x 0.375) Wire Attaching SCREW (#10-16 x .375) Wire Attaching |
3 | |
| 9 | 65999A3 |
КАБЕЛЬ В СБОРЕ Черный CABLE ASSEMBLY Black |
1 | discontinued |
