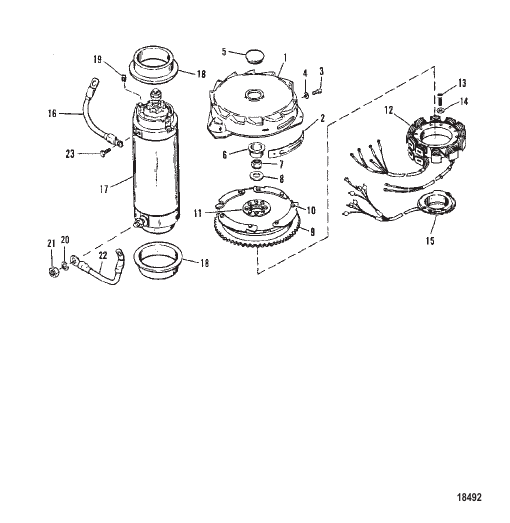

Flywheel/Starter Motor
Parts (23)
| # | Part Number | Description | Qty | Status |
|---|---|---|---|---|
| 1 | 18896A1 |
КОМПЛЕКТ КРЫШЕК Flywheel COVER KIT Flywheel |
1 | |
| 10 | 32417 |
ВИНТ (0.250-28 x 0.625) Flywheel Plate SCREW (.250-28 x .625) Flywheel Plate |
8 | discontinued |
| 11 | 68997 |
ВИНТ (0.312-24 x 0.750) Flywheel Hub SCREW (.312-24 x .750) Flywheel Hub |
8 | |
| 12 | 9610A5 |
СТАТОР STATOR |
1 | discontinued |
| 13 | 90045 |
ВИНТ (№10-32 x 1.375) Stator SCREW (#10-32 x 1.375) Stator |
4 | |
| 14 | 26996 |
СТОПОРНАЯ ШАЙБА (№10), нержавеющая сталь Stator Screw LOCKWASHER (#10) Stainless Steel Stator Screw |
4 | |
| 15 | 96455A9 |
ПЛАСТИНА В СБОРЕ Триггер PLATE ASSEMBLY Trigger |
1 | |
| 16 | 93388A1 |
КАБЕЛЬ В СБОРЕ (6.00"), черный Plate to Starter Motor CABLE ASSEMBLY (6.00 Inches) Black Plate to Starter Motor |
1 | |
| 17 | 79472 |
СТАРТЕР В СБОРЕ STARTER MOTOR ASSEMBLY |
1 | superseded |
| 18 | 56703 |
ВТУЛКА Starter Motor COLLAR Starter Motor |
2 | superseded |
| 19 | 68042 |
СТОП Резина Rubber-Starter Motor STOP Rubber Rubber-Starter Motor |
2 | superseded |
| 2 | 79022 |
МАРКЕР Timing MARKER Timing |
1 | |
| 20 | 26992 |
СТОПОРНАЯ ШАЙБА (0.250), нержавеющая сталь Starter Motor to Terminal LOCKWASHER (.250) Stainless Steel Starter Motor to Terminal |
1 | |
| 21 | 20890 |
ГАЙКА (0.250-20) Starter Motor Terminal NUT (.250-20) Starter Motor Terminal |
1 | |
| 22 | 93388A2 |
КАБЕЛЬ В СБОРЕ Черный Solenoid to Starter Motor CABLE ASSEMBLY Black Solenoid to Starter Motor |
1 | superseded |
| 23 | 69035 |
ВИНТ И СТОПОРНАЯ ШАЙБА (0.250-20 x 0.625), нержавеющая сталь Cable to Starer Motor SCREW AND LOCKWASHER (.250-20 x .625) Stainless Steel Cable to Starer Motor |
1 | |
| 3 | 37572 |
ВИНТ (0.190-32 x 0.380) Timing Marker SCREW (.190-32 x .380) Timing Marker |
2 | |
| 4 | 72761 |
ШАЙБА (0.203 x 0.562 x 0.060), нержавеющая сталь Timing Marker Screw WASHER (.203 x .562 x .060) Stainless Steel Timing Marker Screw |
2 | |
| 5 | 89219 |
ПРОБКА Flywheel Cover PLUG Flywheel Cover |
1 | superseded |
| 6 | 45907 |
ПРОБКА Желтый Flywheel PLUG Yellow Flywheel |
1 | |
| 7 | 52901 |
ГАЙКА (.625-18) Flywheel NUT (.625-18) Flywheel |
1 | |
| 8 | 68229 |
ШАЙБА (0.641 x 1.250 x 0.190) Flywheel WASHER (.641 x 1.250 x .190) Flywheel |
1 | superseded |
| 9 | 9841A2 |
МАХОВИК FLYWHEEL |
1 | superseded |
