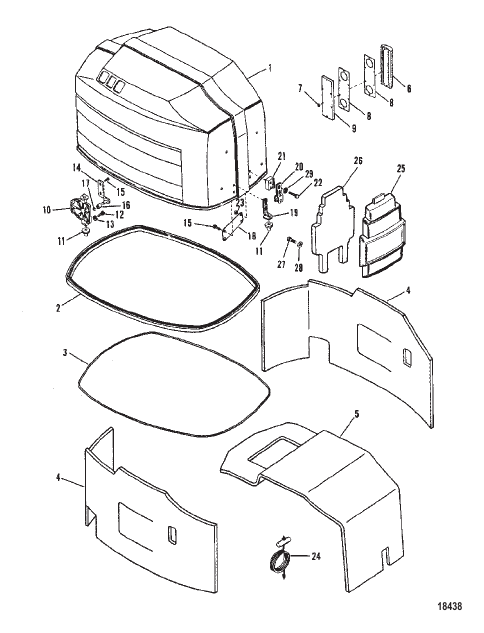

Top Cowl and Front Shield
Parts (33)
| # | Part Number | Description | Qty | Status |
|---|---|---|---|---|
| - | 813096A1 |
КОМПЛЕКТ ЗАДНЕЙ ЗАЩЕЛКИ (Product Improvement to replace 813096 Hook) REAR LATCH KIT (Product Improvement to replace 813096 Hook) |
1 | discontinued |
| 1 | 9742A19 |
ВЕРХНИЙ КОЖУХ В СБОРЕ (Black - Without Decals) TOP COWL ASSEMBLY (Black - Without Decals) |
1 | superseded |
| 1 | 9742A20 |
ВЕРХНИЙ КОЖУХ В СБОРЕ (Gray- Without Decals) TOP COWL ASSEMBLY (Gray- Without Decals) |
1 | superseded |
| 10 | 184741 |
КРОНШТЕЙН REAR BRACKET REAR |
2 | discontinued |
| 11 | 18506 |
УПЛОТНИТЕЛЬНОЕ КОЛЬЦО GROMMET |
3 | superseded |
| 12 | 28636 |
ВИНТ (0.250-20 x 0.750) REAR BRACKET SCREW (.250-20 x .750) REAR BRACKET |
8 | |
| 13 | 26992 |
СТОПОРНАЯ ШАЙБА (0.250), нержавеющая сталь REAR BRACKET SCREW LOCKWASHER (.250) Stainless Steel REAR BRACKET SCREW |
8 | |
| 14 | 813096 |
КРЮК (Order 813096A1 Rear Latch Kit when replacing non-roller components. A Product Improvement) HOOK (Order 813096A1 Rear Latch Kit when replacing non-roller components. A Product Improvement) |
2 | superseded |
| 15 | 73286 |
ВИНТ (0.250-20 x 0.500), нержавеющая сталь SCREW (.250-20 x .500) Stainless Steel |
8 | |
| 16 | 813074 |
РОЛИК ROLLER |
2 | superseded |
| 17 | 13194 |
КОЛЬЦО Стопор RING Retaining |
2 | |
| 18 | 813553 |
ПЛАСТИНА PLATE |
1 | discontinued |
| 19 | 187021 |
ФИКСАТОР LOCATOR |
1 | discontinued |
| 2 | 812784 |
УПЛОТНЕНИЕ SEAL |
1 | discontinued |
| 20 | 18173 |
КРОНШТЕЙН В СБОРЕ Роликовая защелка BRACKET ASSEMBLY Latch Roller |
1 | superseded |
| 21 | 813552 |
ПРОСТАВКА SPACER |
1 | discontinued |
| 22 | 31984 |
ВИНТ (0.312-18 x 1.375) SCREW (.312-18 x 1.375) |
2 | |
| 23 | 67980 |
ГАЙКА (0.312-18) NUT (.312-18) |
2 | superseded |
| 24 | 47341A1 |
КОМПЛЕКТ ТРОСА И РУКОЯТКИ Ручной/аварийный запуск (FOR MANUAL STARTING) ROPE AND HANDLE KIT Manual/Emergency Start (FOR MANUAL STARTING) |
1 | superseded |
| 25 | 18755A1 |
ПЕРЕДНИЙ ЭКРАН В СБОРЕ (Black - Without Decals) FRONT SHIELD ASSEMBLY (Black - Without Decals) |
1 | discontinued |
| 25 | 18755A2 |
ПЕРЕДНИЙ ЭКРАН В СБОРЕ (Gray - Without Decals) FRONT SHIELD ASSEMBLY (Gray - Without Decals) |
1 | discontinued |
| 26 | 813562 |
УПЛОТНЕНИЕ SEAL |
1 | discontinued |
| 27 | 48409 |
ВИНТ (№10-16 x 0.625), нержавеющая сталь SCREW (#10-16 x .625) Stainless Steel |
4 | |
| 28 | 42118 |
ШАЙБА WASHER |
4 | |
| 29 | 70132 |
ШАЙБА (0.323 x 0.563 x 0.063), нержавеющая сталь WASHER (.323 x .563 x .063) Stainless Steel |
2 | superseded |
| 3 | 813566 |
УПЛОТНЕНИЕ SEAL |
1 | superseded |
| 4 | 813670 |
ШУМОПОГЛОТИТЕЛЬ (SIDE) SOUND BLANKET (SIDE) |
2 | superseded |
| 5 | 813671 |
ШУМОПОГЛОТИТЕЛЬ (TOP) SOUND BLANKET (TOP) |
1 | superseded |
| 6 | 17196A1 |
ЭКРАН AIR INLET SHIELD AIR INLET |
2 | discontinued |
| 7 | 11316 |
ГАЙКА СКОРОСТНОГО ВАЛА SPEED NUT |
12 | discontinued |
| 8 | 17238 |
УПЛОТНЕНИЕ AIR INLET SEAL AIR INLET |
4 | discontinued |
| 9 | 17194 |
ЭКРАН AIR INLET (PORT) SHIELD AIR INLET (PORT) |
1 | discontinued |
| 9 | 17195 |
ЭКРАН AIR INLET (STARBOARD) SHIELD AIR INLET (STARBOARD) |
1 | discontinued |
