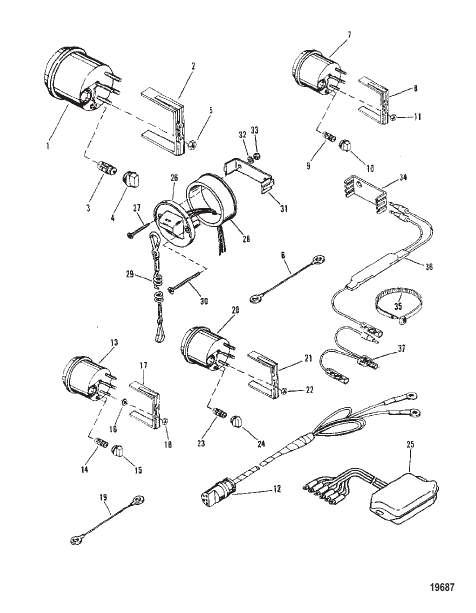

Instrumentation (Mercury and Mariner)
Parts (40)
| # | Part Number | Description | Qty | Status |
|---|---|---|---|---|
| 1 | 15110A1 |
ТАХОМЕТР (6K) TACHOMETER (6K) |
1 | superseded |
| 10 | 79888 |
ГНЕЗДО Лампа TRIM GAUGE SOCKET Light Bulb TRIM GAUGE |
1 | |
| 11 | 26419 |
ГАЙКА (№8-32), латунь TRIM GAUGE TERMINAL NUT (#8-32) Brass TRIM GAUGE TERMINAL |
5 | |
| 12 | 86396A8 |
ЖГУТ ПРОВОДОВ В СБОРЕ Тахометр (5.00 фт.) HARNESS ASSEMBLY Tachometer (5.00 Feet) |
1 | |
| 13 | 15166A1 |
ДАТЧИК ТЕМПЕРАТУРЫ TEMPERATURE GAUGE |
1 | superseded |
| 14 | 72729 |
ЛАМПА Клиновой цоколь (14 В, 1.9 Вт) LIGHT BULB Wedge Base (14V - 1.9W) |
1 | |
| 15 | 79888 |
ГНЕЗДО Лампа SOCKET Light Bulb |
1 | |
| 16 | 26427 |
ШАЙБА WASHER |
2 | discontinued |
| 17 | 79480 |
КРОНШТЕЙН BRACKET |
1 | discontinued |
| 18 | 26419 |
ГАЙКА (№8-32), латунь NUT (#8-32) Brass |
5 | |
| 19 | 86323A2 |
КАБЕЛЬ В СБОРЕ (2.00 фт.), фиолетов. CABLE ASSEMBLY (2.00 Feet) Purple |
1 | discontinued |
| 19 | 61600A16 |
КАБЕЛЬ В СБОРЕ (17.00"), черный CABLE ASSEMBLY (17.00 Inches) Black |
1 | discontinued |
| 19 | 88824A4 |
КАБЕЛЬ В СБОРЕ (45.00"), желто-коричневый CABLE ASSEMBLY (45.00 Inches) Tan |
1 | discontinued |
| 2 | 79101 |
КРОНШТЕЙН MOUNTING BRACKET MOUNTING |
1 | superseded |
| 20 | 15115A2 |
ДАТЧИК СИНХРОНИЗАТОРА (Counter Rotation) SYNCHRONIZER GAUGE (Counter Rotation) |
1 | superseded |
| 21 | 79480 |
КРОНШТЕЙН (Counter Rotation) BRACKET (Counter Rotation) |
1 | discontinued |
| 22 | 26419 |
ГАЙКА (№8-32), латунь (Counter Rotation) NUT (#8-32) Brass (Counter Rotation) |
5 | |
| 23 | 72729 |
ЛАМПА Клиновой цоколь (14 В, 1.9 Вт) (Counter Rotation) LIGHT BULB Wedge Base (14V - 1.9W) (Counter Rotation) |
1 | |
| 24 | 79888 |
ГНЕЗДО Лампа (Counter Rotation) SOCKET Light Bulb (Counter Rotation) |
1 | |
| 25 | 14502 |
ПРИВОД SYNCHRONIZER (Counter Rotation) DRIVER SYNCHRONIZER (Counter Rotation) |
1 | superseded |
| 26 | 19674A1 |
ПЕРЕКЛЮЧАТЕЛЬ В СБОРЕ Талреп (Counter Rotation) SWITCH ASSEMBLY Lanyard (Counter Rotation) |
1 | discontinued |
| 27 | 18303 |
ВИНТ (0.190-16 x 1.750), нержавеющая сталь (Counter Rotation) SCREW (.190-16 x 1.750) Stainless Steel (Counter Rotation) |
2 | |
| 28 | 813679 |
ПЕРЕХОДНИК (Counter Rotation) ADAPTER (Counter Rotation) |
1 | |
| 29 | 15920A54 |
ТАЛРЕП В СБОРЕ (Counter Rotation) LANYARD ASSEMBLY (Counter Rotation) |
1 | superseded |
| 3 | 72729 |
ЛАМПА Клиновой цоколь (14 В, 1.9 Вт) LIGHT BULB Wedge Base (14V - 1.9W) |
1 | |
| 30 | 32866 |
ВИНТ (№10-32 x 2.00), нержавеющая сталь (Counter Rotation) SCREW (#10-32 x 2.00) Stainless Steel (Counter Rotation) |
2 | |
| 31 | 18321 |
ЗАЖИМ Крепление (Counter Rotation) CLAMP Mounting (Counter Rotation) |
1 | |
| 32 | 24676 |
ШАЙБА (0.200 x 0.440 x 0.032) (Counter Rotation) WASHER (.200 x .440 x .032) (Counter Rotation) |
2 | |
| 33 | 68219 |
ГАЙКА (№10-32), нержавеющая сталь (Counter Rotation) NUT (#10-32) Stainless Steel (Counter Rotation) |
4 | |
| 34 | 79146 |
ФИКСАТОР (Counter Rotation) RETAINER (Counter Rotation) |
3 | |
| 35 | 90077 |
ЛЕНТОЧНЫЙ ХОМУТ (Counter Rotation) TIE STRAP (Counter Rotation) |
9 | superseded |
| 36 | 812497A2 |
(Counter Rotation) DIODE ASSEMBLY (Counter Rotation) |
1 | discontinued |
| 37 | 11149A2 |
КАБЕЛЬ В СБОРЕ (6.00") (Counter Rotation) CABLE ASSEMBLY (6.00 Inches) (Counter Rotation) |
1 | |
| 4 | 79888 |
ГНЕЗДО Лампа SOCKET Light Bulb |
1 | |
| 5 | 26419 |
ГАЙКА (№8-32), латунь NUT (#8-32) Brass |
5 | |
| 6 | 86322A7 |
КАБЕЛЬ В СБОРЕ (1.50 фт.), черн. TRIM GAUGE CABLE ASSEMBLY (1.50 Feet) Black TRIM GAUGE |
1 | discontinued |
| 6 | 86323A5 |
КАБЕЛЬ В СБОРЕ (1.50 фт.), фиолетов. TRIM GAUGE CABLE ASSEMBLY (1.50 Feet) Purple TRIM GAUGE |
1 | discontinued |
| 7 | 15113A4 |
УКАЗАТЕЛЬ ДИФФЕРЕНТА TRIM GAUGE |
1 | superseded |
| 8 | 79480 |
КРОНШТЕЙН MOUNTING - TRIM GAUGE BRACKET MOUNTING - TRIM GAUGE |
1 | discontinued |
| 9 | 72729 |
ЛАМПА Клиновой цоколь (14 В, 1.9 Вт) TRIM GAUGE LIGHT BULB Wedge Base (14V - 1.9W) TRIM GAUGE |
1 |
