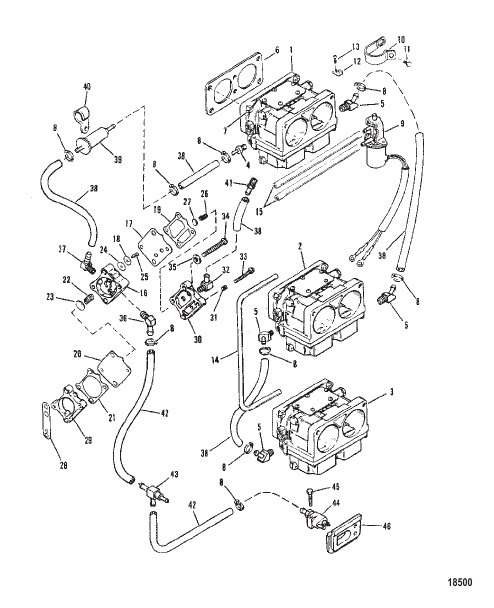

Fuel Pump and Carburetor
Parts (55)
| # | Part Number | Description | Qty | Status |
|---|---|---|---|---|
| - | 90484A88 |
КОМПЛЕКТ ПРОКЛАДОК GASKET SET |
1 | discontinued |
| 1 | 7563A10 |
КАРБЮРАТОР (TOP) WH-35 CARBURETOR (TOP) WH-35 |
1 | discontinued |
| 1 | 9242A33 |
КАРБЮРАТОР (TOP) WH-40 CARBURETOR (TOP) WH-40 |
1 | discontinued |
| 1 | 7563A13 |
КАРБЮРАТОР (TOP) WH-38 CARBURETOR (TOP) WH-38 |
1 | discontinued |
| 1 | 9242A48 |
КАРБЮРАТОР (TOP) WH-48 CARBURETOR (TOP) WH-48 |
1 | discontinued |
| 10 | 633001 |
ЗАЖИМ ENRICHNER VALVE CLAMP ENRICHNER VALVE |
1 | discontinued |
| 11 | 73286 |
ВИНТ (0.250-20 x 0.500), нержавеющая сталь VALVE CLAMP SCREW (.250-20 x .500) Stainless Steel VALVE CLAMP |
1 | |
| 12 | 45915 |
КЛЕММНАЯ КОЛОДКА REED BLOCK HOUSING TERMINAL BLOCK REED BLOCK HOUSING |
1 | |
| 13 | 35519 |
ВИНТ (№10-16 x 0.500) TERMINAL BLOCK ATTACHING SCREW (#10-16 x .500) TERMINAL BLOCK ATTACHING |
1 | discontinued |
| 14 | 99130122 |
ТРУБОПРОВОД (Общая длина 20.00 фт.) TOP CARBURETOR TO VALVE (7-3/4") TUBING (20.00 Feet Bulk) TOP CARBURETOR TO VALVE (7-3/4") |
1 | superseded |
| 15 | 9912688 |
ТРУБОПРОВОД (Общая длина 36.00") CARBURETOR TO CARBURETOR (4-1/4") TUBING (36.00 Inches Bulk) CARBURETOR TO CARBURETOR (4-1/4") |
2 | |
| 16 | 15930A15 |
КОМПЛЕКТ НАСОСА Топливо PUMP KIT Fuel |
1 | |
| 17 | 42990A3 |
КОМПЛЕКТ ДИАФРАГМ CONTENTS OF (27-90484A88) GASKET SET DIAPHRAGM KIT CONTENTS OF (27-90484A88) GASKET SET |
1 | superseded |
| 18 | NSS |
НЕ ПРОДАЕТСЯ ОТДЕЛЬНО Check Valve-Ruber NOT SOLD SEPARATE Check Valve-Ruber |
2 | |
| 19 | NSS |
НЕ ПРОДАЕТСЯ ОТДЕЛЬНО Gasket-Boost NOT SOLD SEPARATE Gasket-Boost |
1 | |
| 2 | 7563A11 |
КАРБЮРАТОР (CENTER) WH-35 CARBURETOR (CENTER) WH-35 |
1 | discontinued |
| 2 | 9242A34 |
КАРБЮРАТОР (CENTER) WH-40 CARBURETOR (CENTER) WH-40 |
1 | discontinued |
| 2 | 7563A14 |
КАРБЮРАТОР (CENTER) WH-38 CARBURETOR (CENTER) WH-38 |
1 | discontinued |
| 2 | 9242A49 |
КАРБЮРАТОР (CENTER) WH-48 CARBURETOR (CENTER) WH-48 |
1 | discontinued |
| 20 | NSS |
НЕ ПРОДАЕТСЯ ОТДЕЛЬНО Diaphragm NOT SOLD SEPARATE Diaphragm |
2 | |
| 21 | NSS |
НЕ ПРОДАЕТСЯ ОТДЕЛЬНО Gasket-Pulse NOT SOLD SEPARATE Gasket-Pulse |
1 | |
| 22 | NSS |
НЕ ПРОДАЕТСЯ ОТДЕЛЬНО Spring NOT SOLD SEPARATE Spring |
1 | |
| 23 | NSS |
НЕ ПРОДАЕТСЯ ОТДЕЛЬНО Cap NOT SOLD SEPARATE Cap |
1 | |
| 24 | NSS |
НЕ ПРОДАЕТСЯ ОТДЕЛЬНО Check Valve NOT SOLD SEPARATE Check Valve |
2 | |
| 25 | NSS |
НЕ ПРОДАЕТСЯ ОТДЕЛЬНО Retainer NOT SOLD SEPARATE Retainer |
2 | |
| 26 | NSS |
НЕ ПРОДАЕТСЯ ОТДЕЛЬНО Spring NOT SOLD SEPARATE Spring |
1 | |
| 27 | NSS |
НЕ ПРОДАЕТСЯ ОТДЕЛЬНО Cap NOT SOLD SEPARATE Cap |
1 | |
| 28 | 987691 |
ПРОКЛАДКА BASE GASKET BASE |
1 | superseded |
| 29 | 144303 |
БАЗА FUEL PUMP BASE FUEL PUMP |
1 | |
| 3 | 7563A12 |
КАРБЮРАТОР (BOTTOM) WH-35 CARBURATOR (BOTTOM) WH-35 |
1 | discontinued |
| 3 | 9242A35 |
КАРБЮРАТОР (BOTTOM) WH-40 CARBURETOR (BOTTOM) WH-40 |
1 | discontinued |
| 3 | 7563A15 |
КАРБЮРАТОР (BOTTOM) WH-38 CARBURETOR (BOTTOM) WH-38 |
1 | discontinued |
| 3 | 9242A50 |
КАРБЮРАТОР (BOTTOM) WH-48 CARBURETOR (BOTTOM) WH-48 |
1 | discontinued |
| 30 | 98775A2 |
ПЛАСТИНА FUEL PUMP PLATE FUEL PUMP |
1 | superseded |
| 31 | 56800 |
ПРОБКА Труба (0.0625-27) PLUG Pipe (.0625-27) |
1 | |
| 32 | 19688 |
ФИТИНГ FITTING |
1 | discontinued |
| 33 | 16452 |
ВИНТ (№12-24 x 2.00) FUEL PUMP SCREW (#12-24 x 2.00) FUEL PUMP |
2 | |
| 34 | 4000310 |
ВИНТ (M5 x 40) FUEL PUMP TO CRANKCASE SCREW (M5 x 40) FUEL PUMP TO CRANKCASE |
2 | discontinued |
| 35 | 4002314 |
ШАЙБА FUEL PUMP SCREW WASHER FUEL PUMP SCREW |
2 | |
| 36 | 14868 |
ФИТИНГ FUEL PUMP (ELBOW) FITTING FUEL PUMP (ELBOW) |
1 | |
| 37 | 19688 |
ФИТИНГ FUEL PUMP (ELBOW) FITTING FUEL PUMP (ELBOW) |
1 | discontinued |
| 38 | 99127109 |
ТРУБОПРОВОД (Общая длина 57.00") LINE (57.00 Inches Bulk) |
1 | superseded |
| 39 | 16494 |
ФИЛЬТР Топливо FILTER Fuel |
1 | superseded |
| 4 | 6232 |
ФИТИНГ FUEL INLET FITTING FUEL INLET |
1 | discontinued |
| 41 | 64705 |
ФИТИНГ PULSE HOSE FITTING PULSE HOSE |
1 | |
| 42 | 9912976 |
ТРУБОПРОВОД TUBING |
2 | superseded |
| 43 | 424251 |
ТРОЙНИК TEE |
1 | superseded |
| 44 | 15781A1 |
СОЕДИНИТЕЛЬ Топливо CONNECTOR Fuel |
1 | superseded |
| 45 | 69067 |
ВИНТ (0.250-20 x 1.375) FUEL CONNECTOR SCREW (.250-20 x 1.375) FUEL CONNECTOR |
1 | |
| 46 | 812782 |
УПЛОТНЕНИЕ SEAL |
1 | discontinued |
| 5 | 70007 |
ФИТИНГ 45 градусов FUEL INLET FITTING 45 Degree FUEL INLET |
4 | |
| 6 | 904301 |
ПРОКЛАДКА CARBURETOR GASKET CARBURETOR |
3 | |
| 7 | 20184 |
ГАЙКА (1/4-28X7/32) CARBURETOR MOUNTING NUT (1/4-28X7/32) CARBURETOR MOUNTING |
12 | superseded |
| 8 | 90077 |
ЛЕНТОЧНЫЙ ХОМУТ FUEL HOSE TO CARBURETOR TIE STRAP FUEL HOSE TO CARBURETOR |
AR | superseded |
| 9 | 42859A2 |
КЛАПАН В СБОРЕ Обогатитель ENRICHNER VALVE ASSEMBLY Enrichner ENRICHNER |
1 |
