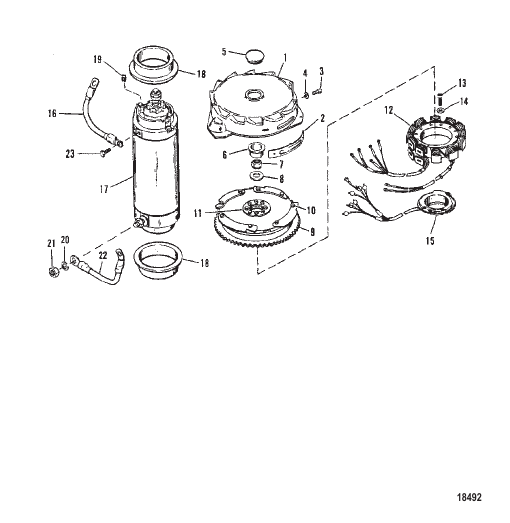

Flywheel and Starter Motor
Parts (23)
| # | Part Number | Description | Qty | Status |
|---|---|---|---|---|
| 1 | 18896A1 |
КОМПЛЕКТ КРЫШЕК FLYWHEEL COVER KIT FLYWHEEL |
1 | |
| 10 | 32417 |
ВИНТ (0.250-28 x 0.625) FLYWHEEL PLATE SCREW (.250-28 x .625) FLYWHEEL PLATE |
1 | discontinued |
| 11 | 68997 |
ВИНТ (0.312-24 x 0.750) FLYWHEEL HUB SCREW (.312-24 x .750) FLYWHEEL HUB |
8 | |
| 12 | 9610A5 |
СТАТОР STATOR |
8 | discontinued |
| 13 | 90045 |
ВИНТ (№10-32 x 1.375) STATOR SCREW (#10-32 x 1.375) STATOR |
4 | |
| 14 | 26996 |
СТОПОРНАЯ ШАЙБА (№10), нержавеющая сталь STATOR SCREW LOCKWASHER (#10) Stainless Steel STATOR SCREW |
4 | |
| 15 | 96455A9 |
ПЛАСТИНА В СБОРЕ Триггер PLATE ASSEMBLY Trigger |
1 | |
| 16 | 93388A1 |
КАБЕЛЬ В СБОРЕ (6.00"), черный PLATE TO STARTER MOTOR CABLE ASSEMBLY (6.00 Inches) Black PLATE TO STARTER MOTOR |
1 | |
| 17 | 79472 |
СТАРТЕР В СБОРЕ STARTER MOTOR ASSEMBLY |
1 | superseded |
| 18 | 56703 |
ВТУЛКА STARTER MOTOR COLLAR STARTER MOTOR |
2 | superseded |
| 19 | 68042 |
СТОП Резина RUBBER - STARTER MOTOR STOP Rubber RUBBER - STARTER MOTOR |
2 | superseded |
| 2 | 79022 |
МАРКЕР TIMING MARKER MARKER TIMING MARKER |
1 | |
| 20 | 26992 |
СТОПОРНАЯ ШАЙБА (0.250), нержавеющая сталь STARTER MOTOR TERMINAL LOCKWASHER (.250) Stainless Steel STARTER MOTOR TERMINAL |
1 | |
| 21 | 20890 |
ГАЙКА (0.250-20) STARTER MOTOR TERMINAL NUT (.250-20) STARTER MOTOR TERMINAL |
1 | |
| 22 | 93388A2 |
КАБЕЛЬ В СБОРЕ Черный (BLACK) SOLENOID TO STARTER MOTOR CABLE ASSEMBLY Black (BLACK) SOLENOID TO STARTER MOTOR |
1 | superseded |
| 23 | 69035 |
ВИНТ И СТОПОРНАЯ ШАЙБА (0.250-20 x 0.625), нержавеющая сталь CABLE TO STARTER MOTOR SCREW AND LOCKWASHER (.250-20 x .625) Stainless Steel CABLE TO STARTER MOTOR |
1 | |
| 3 | 37572 |
ВИНТ (0.190-32 x 0.380) TIMING MARKER SCREW (.190-32 x .380) TIMING MARKER |
2 | |
| 4 | 72761 |
ШАЙБА (0.203 x 0.562 x 0.060), нержавеющая сталь TIMING MARKER SCREW WASHER (.203 x .562 x .060) Stainless Steel TIMING MARKER SCREW |
2 | |
| 5 | 89219 |
ПРОБКА FLYWHEEL COVER PLUG FLYWHEEL COVER |
1 | superseded |
| 6 | 45907 |
ПРОБКА Желтый FLYWHEEL PLUG Yellow FLYWHEEL |
1 | |
| 7 | 52901 |
ГАЙКА (.625-18) FLYWHEEL NUT (.625-18) FLYWHEEL |
1 | |
| 8 | 68229 |
ШАЙБА (0.641 x 1.250 x 0.190) FLYWHEEL WASHER (.641 x 1.250 x .190) FLYWHEEL |
1 | superseded |
| 9 | 9841A2 |
МАХОВИК FLYWHEEL |
1 | superseded |
