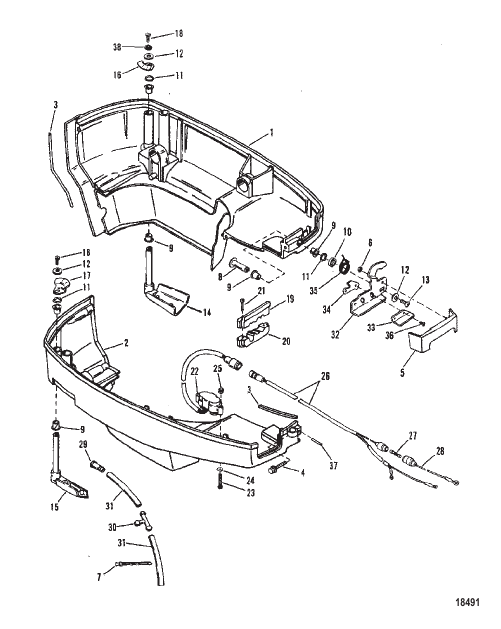

Bottom Cowl
Parts (44)
| # | Part Number | Description | Qty | Status |
|---|---|---|---|---|
| - | 813096A1 |
КОМПЛЕКТ ЗАДНЕЙ ЗАЩЕЛКИ REAR LATCH KIT |
1 | discontinued |
| 1 | 9744A2 |
НИЖНИЙ КОЖУХ В СБОРЕ PORT (BLACK) BOTTOM COWL ASSEMBLY PORT (BLACK) |
1 | superseded |
| 1 | 9744A3 |
НИЖНИЙ КОЖУХ В СБОРЕ PORT (GRAY) BOTTOM COWL ASSEMBLY PORT (GRAY) |
1 | superseded |
| 10 | 19666 |
ВТУЛКА BUSHING |
1 | discontinued |
| 11 | 99611 |
ВОЛНИСТАЯ ШАЙБА WAVE WASHER |
3 | |
| 12 | 69057 |
ШАЙБА (0.281 x 0.734 x 0.063) WASHER (.281 x .734 x .063) |
3 | |
| 13 | 18192 |
ВИНТ (0.250-20 x 0.620) SCREW (.250-20 x .620) |
1 | discontinued |
| 14 | 19648A3 |
РУКОЯТКА В СБОРЕ PORT (BLACK) HANDLE ASSEMBLY PORT (BLACK) |
1 | superseded |
| 14 | 19648A4 |
РУКОЯТКА В СБОРЕ PORT (GRAY) HANDLE ASSEMBLY PORT (GRAY) |
1 | superseded |
| 15 | 19647A3 |
РУКОЯТКА В СБОРЕ STARBOARD (BLACK) HANDLE ASSEMBLY STARBOARD (BLACK) |
1 | discontinued |
| 15 | 19647A4 |
РУКОЯТКА В СБОРЕ STARBOARD (GRAY) HANDLE ASSEMBLY STARBOARD (GRAY) |
1 | superseded |
| 16 | 19370 |
СТОПОР PORT SEE NOTE PAWL PORT SEE NOTE |
1 | discontinued |
| 17 | 19369 |
СТОПОР STARBOARD SEE NOTE PAWL STARBOARD SEE NOTE |
1 | discontinued |
| 18 | 90047 |
ВИНТ SCREW |
2 | discontinued |
| 19 | 19749 |
ЗАЖИМ UPPER CLAMP UPPER |
1 | discontinued |
| 2 | 9745A1 |
НИЖНИЙ КОЖУХ В СБОРЕ STARBOARD (BLACK) BOTTOM COWL ASSEMBLY STARBOARD (BLACK) |
1 | discontinued |
| 2 | 9745A2 |
НИЖНИЙ КОЖУХ В СБОРЕ STARBOARD (GRAY) BOTTOM COWL ASSEMBLY STARBOARD (GRAY) |
1 | discontinued |
| 20 | 197481 |
ЗАЖИМ LOWER CLAMP LOWER |
1 | discontinued |
| 21 | 92799 |
ВИНТ (№10-16 x 1.12) SCREW (#10-16 x 1.12) |
2 | |
| 22 | 16636A1 |
ЖГУТ ПРОВОДОВ В СБОРЕ TRIM HARNESS ASSEMBLY TRIM |
1 | discontinued |
| 23 | 72202 |
ВИНТ (№10-32 x 1.25) SCREW (#10-32 x 1.25) |
2 | |
| 24 | 56681 |
ШАЙБА (0.203 x 0.500 x 0.032) WASHER (.203 x .500 x .032) |
2 | superseded |
| 25 | 29488 |
ГАЙКА (№10-32) NUT (#10-32) |
2 | superseded |
| 26 | 16639A1 |
ЖГУТ ПРОВОДОВ В СБОРЕ HARNESS ASSEMBLY |
1 | discontinued |
| 27 | 79091 |
ПЛАВКИЙ ПРЕДОХРАНИТЕЛЬ 20 ампер FUSE 20 Ampere |
1 | superseded |
| 28 | 95084A2 |
КАБЕЛЬ В СБОРЕ FUSE CABLE ASSEMBLY FUSE |
1 | |
| 29 | 813613 |
ФИТИНГ TELLTALE FITTING TELLTALE |
1 | |
| 3 | 18701A1 |
КОМПЛЕКТ УПЛОТНЕНИЙ BOTTOM COWLS SEAL KIT BOTTOM COWLS |
1 | discontinued |
| 30 | 90824 |
ТРОЙНИК TELLTALE TEE TELLTALE |
1 | superseded |
| 31 | 99127109 |
ТРУБОПРОВОД (Общая длина 57.00") TELLTALE LINE (57.00 Inches Bulk) TELLTALE |
1 | superseded |
| 32 | 8130761 |
ПЕРЕДНЯЯ РУКОЯТКА В СБОРЕ FRONT HANDLE ASSEMBLY |
1 | superseded |
| 33 | 813925 |
ФИКСАТОР РУКОЯТКИ HANDLE LOCK |
1 | discontinued |
| 34 | 813926 |
РУКОЯТКА HANDLE |
1 | discontinued |
| 35 | 8139291 |
ПРУЖИНА SPRING |
1 | discontinued |
| 36 | 69079 |
ВИНТ (№10-16 x 0.440) SCREW (#10-16 x .440) |
2 | |
| 37 | 813930 |
ШТИФТ Замок PIN Lock |
1 | superseded |
| 38 | 26992 |
СТОПОРНАЯ ШАЙБА (0.250), нержавеющая сталь LOCKWASHER (.250) Stainless Steel |
2 | |
| 4 | 18699 |
ВИНТ (0.250-20 x 1.320) COWL (STANDARD) SCREW (.250-20 x 1.320) COWL (STANDARD) |
4 | |
| 5 | 18872A1 |
КРЫШКА В СБОРЕ (BLACK) COVER ASSEMBLY (BLACK) |
1 | discontinued |
| 5 | 18872A2 |
КРЫШКА В СБОРЕ (GRAY) COVER ASSEMBLY (GRAY) |
1 | discontinued |
| 6 | 813692 |
КОНТРГАЙКА LOCKNUT |
2 | superseded |
| 7 | 90077 |
ЛЕНТОЧНЫЙ ХОМУТ TIE STRAP |
AR | superseded |
| 8 | 18727 |
ШТОК ROD |
1 | discontinued |
| 9 | 65830 |
NYLINER NYLINER |
6 |
