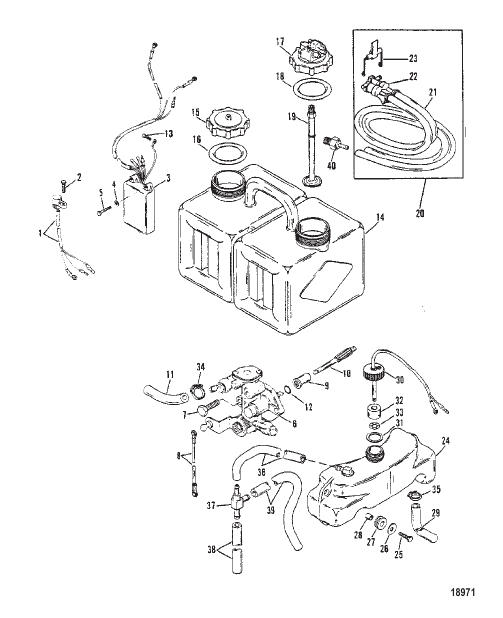

OIL INJECTION COMPONENTS
Parts (41)
| # | Part Number | Description | Qty | Status |
|---|---|---|---|---|
| 1 | 12430A1 |
ДАТЧИК В СБОРЕ SENSOR ASSEMBLY |
1 | superseded |
| 10 | 12726 |
ПЕРЕДАЧА Ведомый GEAR Driven |
1 | superseded |
| 11 | 4301619 |
ТРУБОПРОВОД OIL PUMP TO TEE TUBING OIL PUMP TO TEE |
1 | superseded |
| 12 | 11379 |
УПЛОТНИТЕЛЬНОЕ КОЛЬЦО OIL PUMP O-RING OIL PUMP |
1 | |
| 13 | 42813 |
ВИНТ (№10-32 x 0.380) WARNING MODULE LEAD SCREW (#10-32 X .380) WARNING MODULE LEAD |
1 | discontinued |
| 14 | 87421 |
БАК TANK |
1 | |
| 15 | 43298A2 |
КОЛПАЧОК В СБОРЕ OIL TANK CAP ASSEMBLY OIL TANK |
1 | |
| 16 | 11332 |
УПЛОТНИТЕЛЬНОЕ КОЛЬЦО (2.225 x 0.210) CAP O-RING (2.225 x .210) CAP |
1 | |
| 17 | 43295A5 |
КОРПУС В СБОРЕ Переходник HOUSING ASSEMBLY Adaptor |
1 | superseded |
| 18 | 11332 |
УПЛОТНИТЕЛЬНОЕ КОЛЬЦО (2.225 x 0.210) ADAPTOR HOUSING O-RING (2.225 x .210) ADAPTOR HOUSING |
1 | |
| 19 | 99802 |
ТРУБА OIL PICK-UP TUBE OIL PICK-UP |
1 | |
| 2 | 48409 |
ВИНТ (№10-16 x 0.625), нержавеющая сталь SENSOR ATTACHING SCREW (#10-16 x .625) Stainless Steel SENSOR ATTACHING |
1 | |
| 20 | 12540A2 |
КОРПУС В СБОРЕ Маховик HOUSING ASSEMBLY Flywheel |
1 | superseded |
| 21 | 99439 |
РУКАВ (114.00") OIL HOSE (114.00 Inches) OIL |
1 | |
| 22 | 12540A3 |
КОРПУС HOUSING |
1 | discontinued |
| 23 | 12242A1 |
ЗАЩЕЛКА LATCH |
1 | discontinued |
| 24 | 99443 |
РЕЗЕРВУАР Масло RESERVOIR Oil |
1 | superseded |
| 25 | 69020 |
ВИНТ (№10-32 x 0.875) OIL RESERVOIR ATTACHING SCREW (#10-32 x .875) OIL RESERVOIR ATTACHING |
3 | superseded |
| 26 | 42118 |
ШАЙБА OIL RESERVOIR SCREW WASHER OIL RESERVOIR SCREW |
6 | |
| 27 | 42117 |
УПЛОТНИТЕЛЬНОЕ КОЛЬЦО OIL RESERVOIR SCREW GROMMET OIL RESERVOIR SCREW |
3 | |
| 28 | 42116 |
ВТУЛКА OIL RESERVOIR SCREW BUSHING OIL RESERVOIR SCREW |
3 | |
| 29 | 4301736 |
ТРУБОПРОВОД OIL RESERVOIR TO OIL PUMP (Cut to 5.25 Inches) TUBING OIL RESERVOIR TO OIL PUMP (Cut to 5.25 Inches) |
1 | superseded |
| 3 | 41470A11 |
ПРЕДУПРЕДИТЕЛЬНЫЙ БЛОК В СБОРЕ WARNING MODULE ASSEMBLY |
1 | superseded |
| 30 | 43300A1 |
КОЛПАЧОК В СБОРЕ OIL RESERVOIR CAP ASSEMBLY OIL RESERVOIR |
1 | superseded |
| 31 | 43307 |
ПРОКЛАДКА RESERVOIR CAP GASKET RESERVOIR CAP |
1 | superseded |
| 32 | 99022A1 |
ПОПЛАВОК В СБОРЕ FLOAT ASSEMBLY |
1 | superseded |
| 33 | 99265 |
ГАЙКА ТОЛКАТЕЛЯ PUSH NUT |
1 | |
| 34 | 415821 |
ЗАЖИМ OIL HOSE (SMALL) CLAMP OIL HOSE (SMALL) |
2 | |
| 35 | 415823 |
ЗАЖИМ OIL HOSE (LARGE) CLAMP OIL HOSE (LARGE) |
2 | discontinued |
| 36 | 99127109 |
ТРУБОПРОВОД (Общая длина 57.00") OIL LINE (57.00 Inches Bulk) OIL |
1 | superseded |
| 37 | 42425 |
ТРОЙНИК OIL TUBING TEE OIL TUBING |
1 | discontinued |
| 38 | 9072925 |
РУКАВ OIL (Cut to 6.75 Inches) HOSE OIL (Cut to 6.75 Inches) |
1 | |
| 39 | 34395A1 |
РУКАВ HOSE |
1 | superseded |
| 4 | 38833 |
ШАЙБА WARNING MODULE SCREW WASHER WARNING MODULE SCREW |
3 | |
| 40 | 43278 |
ФИТИНГ CHECK VALVE (CRANKCASE) FITTING CHECK VALVE (CRANKCASE) |
1 | superseded |
| 5 | 69020 |
ВИНТ (№10-32 x 0.875) WARNING MODULE TO CYLINDER BLOCK SCREW (#10-32 x .875) WARNING MODULE TO CYLINDER BLOCK |
3 | superseded |
| 6 | 41032 |
НАСОС В СБОРЕ Масло PUMP ASSEMBLY Oil |
1 | superseded |
| 7 | 32228 |
ВИНТ (№10-32 x 0.625) OIL PUMP TO CRANKCASE SCREW (#10-32 x .625) OIL PUMP TO CRANKCASE |
1 | |
| 7 | 41507 |
ВИНТ (№10-32 x 1.120) OIL PUMP TO CRANKCASE SCREW (#10-32 x 1.120) OIL PUMP TO CRANKCASE |
1 | |
| 8 | 962556 |
СОЕДИНИТЕЛЬ THROTTLE LEVER TO OIL PUMP LINK THROTTLE LEVER TO OIL PUMP |
1 | superseded |
| 9 | 41429A1 |
БЛОК ПОДШИПНИКА DRIVE GEAR BEARING ASSEMBLY DRIVE GEAR |
1 | superseded |
