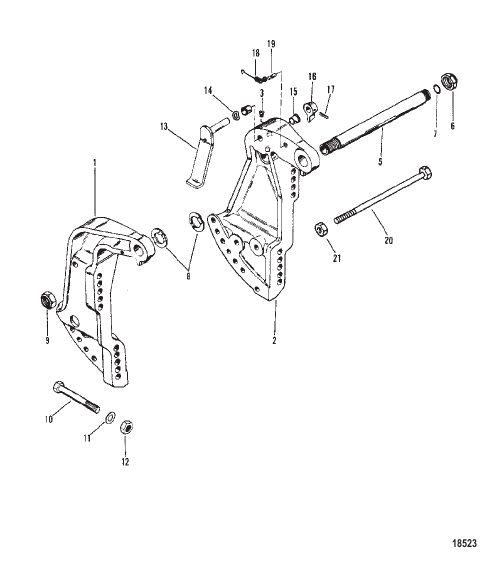

TRANSOM BRACKET
Parts (25)
| # | Part Number | Description | Qty | Status |
|---|---|---|---|---|
| - | 11338A88 |
КОМПЛЕКТ ПРОКЛАДОК Капитальный ремонт двигателя GASKET SET Engine Overhaul |
1 | discontinued |
| 1 | 8718A1 |
КРОНШТЕЙН В СБОРЕ Транец (STARBOARD) (BLACK) BRACKET ASSEMBLY Transom (STARBOARD) (BLACK) |
1 | superseded |
| 1 | 8718A2 |
КРОНШТЕЙН В СБОРЕ Транец (STARBOARD)(GRAY) BRACKET ASSEMBLY Transom (STARBOARD)(GRAY) |
1 | superseded |
| 10 | 677551 |
ВИНТ (0.500-20 x 4.500) TRANSOM BRACKET TO TRANSOM SCREW (.500-20 x 4.500) TRANSOM BRACKET TO TRANSOM |
4 | superseded |
| 11 | 28421 |
ШАЙБА (1.5 × 3.05 × 0.13), нержавеющая сталь TRANSOM BRACKET BOLT WASHER (1.5 x 3.05 x 0.13) Stainless Steel TRANSOM BRACKET BOLT |
4 | superseded |
| 12 | 8M0027784 |
ГАЙКА TRANSOM BRACKET BOLT NUT TRANSOM BRACKET BOLT |
4 | superseded |
| 13 | 99629A2 |
РЫЧАГ В СБОРЕ TILT LOCK LEVER ASSEMBLY TILT LOCK |
1 | superseded |
| 14 | 99611 |
ВОЛНИСТАЯ ШАЙБА TILTLEVER WAVE WASHER TILTLEVER |
1 | |
| 15 | 65830 |
NYLINER TILT LEVER NYLINER TILT LEVER |
2 | |
| 16 | 99633 |
РУЧКА TILT LOCK LEVER (BLACK) KNOB TILT LOCK LEVER (BLACK) |
1 | |
| 16 | 99633T6 |
РУЧКА TILT LOCK LEVER (GRAY) KNOB TILT LOCK LEVER (GRAY) |
1 | superseded |
| 17 | 99615 |
ШТИФТ Желоб PIN Groove |
1 | |
| 18 | 99622 |
ПРУЖИНА SPRING |
1 | |
| 19 | 99604 |
ШТИФТ Желоб PIN Groove |
1 | |
| 2 | 8716A1 |
КРОНШТЕЙН В СБОРЕ Транец (PORT) (BLACK) BRACKET ASSEMBLY Transom (PORT) (BLACK) |
1 | superseded |
| 2 | 8716A2 |
КРОНШТЕЙН В СБОРЕ Транец (PORT) (GRAY) BRACKET ASSEMBLY Transom (PORT) (GRAY) |
1 | superseded |
| 20 | 96930A1 |
БОЛТ В СБОРЕ TILT LOCK BOLT ASSEMBLY TILT LOCK |
1 | |
| 21 | 23161 |
ГАЙКА (.375-24) BOLT NUT (.375-24) BOLT |
1 | |
| 3 | 98727 |
ФИТИНГ Смазка PORT TRANSOM BRACKET FITTING Grease PORT TRANSOM BRACKET |
1 | superseded |
| 5 | 99170A1 |
ТРУБА НАКЛОНА TILT TUBE |
1 | superseded |
| 6 | 90068T |
ГАЙКА TILT TUBE (1"-14) (BLACK) NUT TILT TUBE (1"-14) (BLACK) |
1 | superseded |
| 6 | 90068T6 |
ГАЙКА TILT TUBE (1"-14) (GRAY) NUT TILT TUBE (1"-14) (GRAY) |
1 | superseded |
| 7 | 45711 |
УПЛОТНИТЕЛЬНОЕ КОЛЬЦО (0.612 x 0.103) TILT TUBE O-RING (.612 x .103) TILT TUBE |
1 | |
| 8 | 88750 |
ШАЙБА TILT TUBE WASHER Wave (1.62 x 1.05) TILT TUBE |
2 | |
| 9 | 56041 |
ГАЙКА (0.875-14) TILT TUBE NUT (.875-14) TILT TUBE |
1 | superseded |
