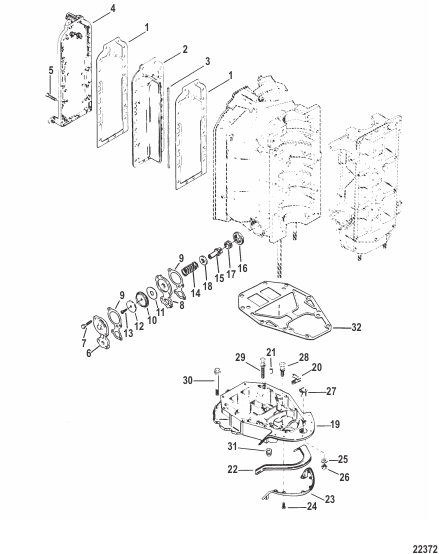

EXHAUST MANIFOLD AND EXHAUST PLATE
Parts (33)
| # | Part Number | Description | Qty | Status |
|---|---|---|---|---|
| - | 11338A88 |
КОМПЛЕКТ ПРОКЛАДОК Капитальный ремонт двигателя GASKET SET Engine Overhaul |
1 | discontinued |
| 1 | 90484 |
ПРОКЛАДКА DIVIDER PLATE GASKET DIVIDER PLATE |
2 | superseded |
| 10 | 14479 |
ДИАФРАГМА DIAPHRAGM |
1 | superseded |
| 11 | 16496 |
ОТРАЖАТЕЛЬ Вода DEFLECTOR Water |
1 | |
| 12 | 76451 |
ШАЙБА DIAPHRAGM SCREW WASHER DIAPHRAGM SCREW |
1 | |
| 13 | 69570 |
ВИНТ (№10-16 x 0.750) DIAPHRAGM TO PLATE SCREW (#10-16 x .750) DIAPHRAGM TO PLATE |
1 | |
| 14 | 64878 |
ПРУЖИНА (черный) COMPRESSION POPPET VALVE SPRING (Black) COMPRESSION POPPET VALVE |
1 | |
| 15 | 14480 |
ТАРЕЛЬЧАТЫЙ КЛАПАН VALVE POPPET VALVE |
1 | |
| 16 | 65848 |
КОРПУС POPPET VALVE CARRIER POPPET VALVE |
1 | |
| 17 | 64872 |
УПЛОТНИТЕЛЬНОЕ КОЛЬЦО POPPET VALVE GROMMET POPPET VALVE |
1 | |
| 18 | 85303 |
ШАЙБА POPPET SPRING WASHER POPPET SPRING |
1 | |
| 19 | 41944A2 |
ПЛАСТИНА В СБОРЕ EXHAUST PLATE ASSEMBLY EXHAUST |
1 | superseded |
| 2 | 99169 |
ДЕЛИТЕЛЬ DIVIDER PLATE |
1 | superseded |
| 20 | 99664 |
КОЛЕНЧАТЫЙ EXHAUST PLATE ELBOW EXHAUST PLATE |
1 | superseded |
| 21 | 20033 |
ШТИФТ Штифт LOCATING - EXHAUST PLATE PIN Dowel LOCATING - EXHAUST PLATE |
2 | superseded |
| 22 | 707482 |
УПЛОТНЕНИЕ EXHAUST PLATE SEAL EXHAUST PLATE |
1 | discontinued |
| 23 | 68010 |
КРОНШТЕЙН SEAL RETAINING BRACKET SEAL RETAINING |
1 | superseded |
| 24 | 48408 |
ВИНТ (№10-16 x 0.500) BRACKET TO EXHAUST PLATE SCREW (#10-16 x .500) BRACKET TO EXHAUST PLATE |
8 | |
| 25 | 25970 |
ШАЙБА POWERHEAD STUD WASHER POWERHEAD STUD |
6 | superseded |
| 26 | 69254 |
ГАЙКА POWERHEAD STUD NUT POWERHEAD STUD |
6 | |
| 27 | 27132 |
ВТУЛКА EXHAUST PLATE BUSHING EXHAUST PLATE |
1 | |
| 28 | 66727 |
ВИНТ (0.312-18 x 1.250) EXHAUST PLATE ATTACHING SCREW (.312-18 x 1.250) EXHAUST PLATE ATTACHING |
1 | |
| 29 | 68783 |
ВИНТ (0.312-18 x 2.50) EXHAUST PLATE ATTACHING SCREW (.312-18 x 2.50) EXHAUST PLATE ATTACHING |
1 | |
| 3 | 69668 |
УПЛОТНЕНИЕ DIVIDER PLATE SEAL DIVIDER PLATE |
1 | superseded |
| 30 | 66725 |
ВИНТ (0.375-16 x 3.50) EXHAUST PLATE ATTACHING SCREW (.375-16 x 3.50) EXHAUST PLATE ATTACHING |
3 | superseded |
| 31 | 12602 |
УПЛОТНИТЕЛЬНОЕ КОЛЬЦО EXHAUST PLATE GROMMET EXHAUST PLATE |
1 | superseded |
| 32 | 99176 |
ПРОКЛАДКА EXHAUT PLATE GASKET EXHAUT PLATE |
1 | superseded |
| 4 | 95067 |
КРЫШКА EXHAUST MANIFOLD COVER EXHAUST MANIFOLD |
1 | discontinued |
| 5 | 74824 |
ВИНТ (0.312-18 x 1.250) COVER AND PLATE TO CYLINDER BLOCK SCREW (.312-18 x 1.250) COVER AND PLATE TO CYLINDER BLOCK |
21 | |
| 6 | 14462A1 |
КРЫШКА RELIEF VALVE COVER RELIEF VALVE |
1 | discontinued |
| 7 | 74824 |
ВИНТ (0.312-18 x 1.250) COVER TO CYLINDER BLOCK SCREW (.312-18 x 1.250) COVER TO CYLINDER BLOCK |
4 | |
| 8 | 16497A1 |
ПЛАСТИНА RELIEF VALVE PLATE RELIEF VALVE |
1 | |
| 9 | 78690 |
ПРОКЛАДКА RELIEF VALVE PLATE GASKET RELIEF VALVE PLATE |
2 | superseded |
